Mini Industrial 10/100/1000Base-T to 100/1000Base-X SFP Ethernet Media Converter

Price Negotiation
MOQ 1 pcs
Delivery Time 3-12 working days
Brand E-link
Place of Origin China
Certification ROHS,FCC,CE,ISO9001
Model Number LNK-IMC3012-SFP
Packaging Details Carton Packaging
Payment Terms L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability 1000 pcs/month

Product Details

Product Specification

Operating Temperature -40°C to 75°C (-40°F to 167°F) Place of Origin China
Input Power 12~48VDC, 4-pin terminal block Packaging Details Carton Packaging
Model Number LNK-IMC3012-SFP Supply Ability 1000 pcs/month
Certification ROHS,FCC,CE,ISO9001 Dimensions (WxDxH) 95 x 70 x 30 mm
Brand Name E-link Payment Terms L/C,T/T,Western Union,MoneyGram,Paypal
Mounting Options DIN-Rail/Wall-mount Price Negotiation
Delivery Time 3-12 working days Minimum Order Quantity 1 pcs
Optical Port 1 x SFP 1000Base-X or 100Base-FX (auto detection) Power Consumption 3W Max
Storage Temperature -40°C to 85°C (-40°F to 185°F)

Product Description

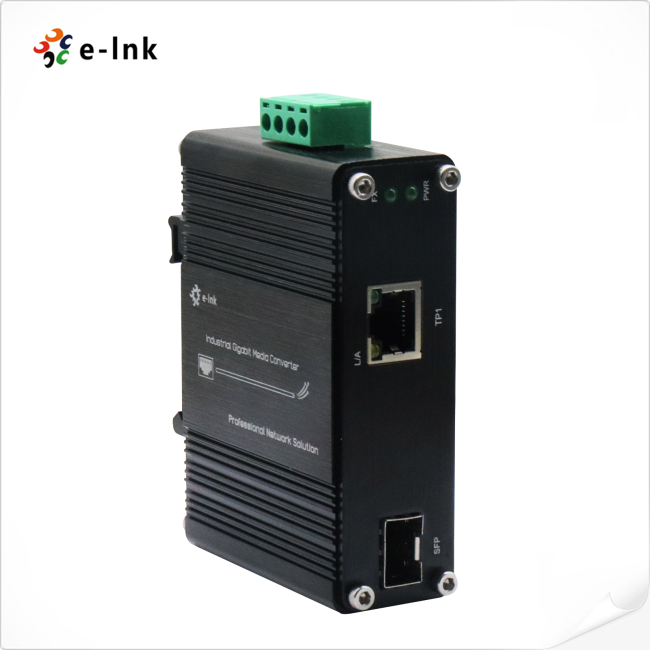

Mini Industrial 10/100/1000Base-T to 100/1000Base-X SFP Ethernet Media Converter


Advantages

1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SFP Port,100Base-FX or 1000Base-X dual mode (auto detection)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant

► Extensive LED indicators for network diagnostics

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature



Overview

LNK-IMC3012-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC3012-SFP supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.

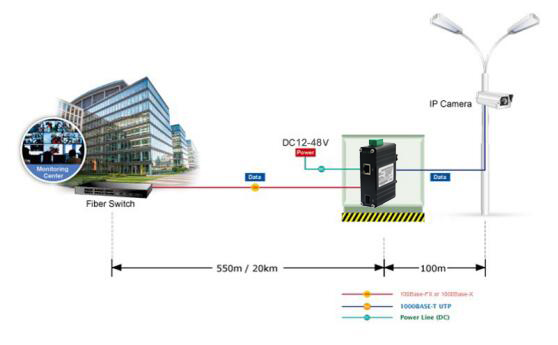

Application



Ordering Information


Model

Description

LNK-IMC3012-SFP

Hardened 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter

SFP Options

► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

24W/1A 24VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.
