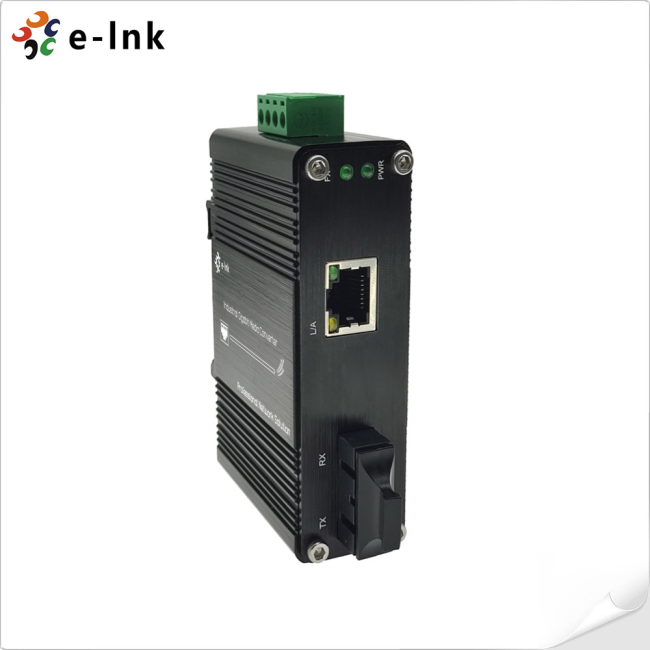

Mini Industrial 10/100Base-T to 100Base-FX Media Converter

Price Negotiation
MOQ 1 pcs
Delivery Time 3-12 working days
Brand E-link
Place of Origin China
Certification ROHS,FCC,CE,ISO9001
Model Number LNK-IMC1100 Series
Packaging Details Carton Packaging
Payment Terms L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability 1000 pcs/month

Product Details

Product Specification

Operating Temperature -40°C to 75°C (-40°F to 167°F) Place of Origin China
Input Power 12~48VDC, 2-pin terminal block k Packaging Details Carton Packaging
Model Number LNK-IMC1100 Series Supply Ability 1000 pcs/month
Certification ROHS,FCC,CE,ISO9001 Dimensions (WxDxH) 95 x 70 x 30 mm
Brand Name E-link Payment Terms L/C,T/T,Western Union,MoneyGram,Paypal
Mounting Options DIN-Rail/Wall-mount Price Negotiation
Delivery Time 3-12 working days Minimum Order Quantity 1 pcs
Optical Port 1 x SC 100Base-FX Power Consumption 3W Max
Storage Temperature -40°C to 85°C (-40°F to 185°F)

Product Description

Mini Industrial 10/100Base-T to 100Base-FX Media Converter


Advantages

1-Port 10/100BASE-T RJ45 with auto MDI/MDI-X function

► 1-Port 100Base-FX SC

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Extensive LED indicators for network diagnostics

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature


Overview

The LNK-IMC1100 Series provides media conversion between 10/100BASE-T and 100BASE-FX Fiber. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC1100 Series are easy to mount on a DIN rail or in distribution boxes.

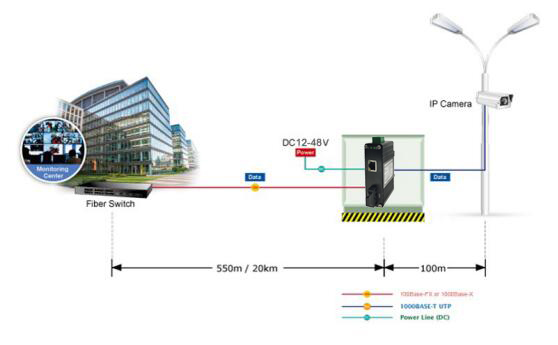

Application



Ordering Information

Model

Description

LNK-IMC1100

Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Multi-mode, 2km, 1310nm, SC

LNK-IMC1100-20

Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, 20km, 1310nm, SC

LNK-IMC1100S-20

Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, Single Fiber, 20km, 1310/1550nm, SC

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

24W/1A 24VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.
