| Price | Negotiation |
| MOQ | 1 pcs |
| Delivery Time | 3-12 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | ROHS,FCC,CE,ISO9001 |
| Model Number | LNK-IMC1100P90 Series |
| Packaging Details | Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 1000 pcs/month |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) | Place of Origin | China |
| Input Power | 48~57VDC, 4-pin terminal block | Packaging Details | Carton Packaging |
| Model Number | LNK-IMC1100P90 Series | Supply Ability | 1000 pcs/month |
| Certification | ROHS,FCC,CE,ISO9001 | Dimensions (WxDxH) | 95 x 70 x 30 mm |
| Brand Name | E-link | Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Mounting Options | DIN-Rail/Wall-mount | Price | Negotiation |
| Delivery Time | 3-12 working days | Minimum Order Quantity | 1 pcs |
| Optical Port | 1 x SC 100Base-FX | Power Consumption | 95W Max |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Advantages
► 1-Port 10/100BASE-T RJ45 with auto MDI / MDI-X function
► 1-Port 100Base-FX SC
► Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 48~57VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally
hardened
-40°C
to
75°C
(-40°F
to
167°F)
operating
temperature
Overview

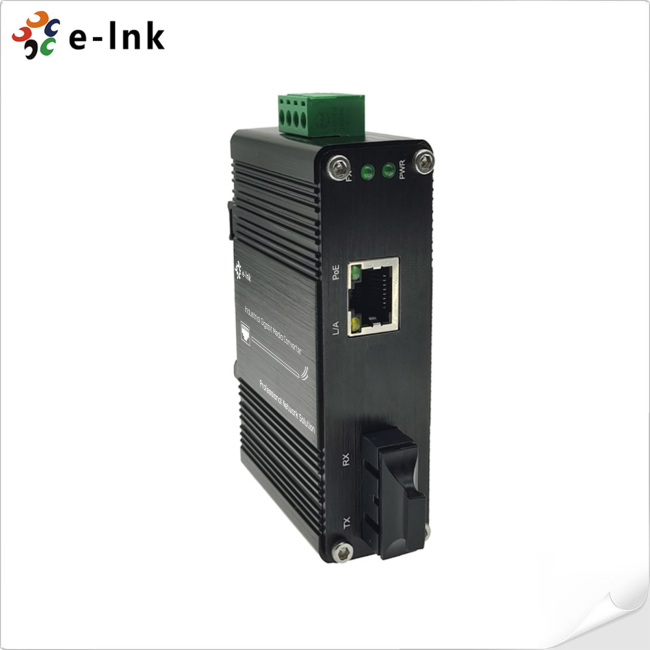

The LNK-IMC1100P90 Series provides media conversion between 10/100BASE-T and 100BASE-FX Fiber. The Ethernet port support 90W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC1100P90 Series are easy to mount on a DIN rail or in distribution boxes.

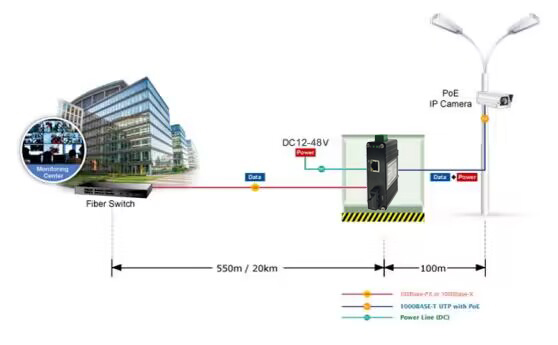

Application
Ordering Information
|
Model |
Description |
|
LNK-IMC1100P90 |
Mini Industrial 90W PoE Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Multimode, 1310nm, 2km |
|
LNK-IMC1100P90-20 |
Mini Industrial 90W PoE Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
|
LNK-IMC1100P90S-20 |
Mini Industrial 90W PoE Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
