| Price | Negotiation |
| MOQ | 1 pcs |
| Delivery Time | 3-12 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | ROHS,FCC,CE |
| Model Number | LNK-IMC-A1400G-SFP |
| Packaging Details | Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 1000 pcs/month |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) | Place of Origin | China |
| Input Power | 110~230VAC, 6-pin terminal block | Packaging Details | Carton Packaging |
| Model Number | LNK-IMC-A1400G-SFP | Supply Ability | 1000 pcs/month |
| Certification | ROHS,FCC,CE | Dimensions (WxDxH) | 95 x 95 x 30 mm |
| Brand Name | E-link | Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Mounting Options | DIN-Rail/Wall-mount | Price | Negotiation |
| Delivery Time | 3-12 working days | Minimum Order Quantity | 1 pcs |
| Power Consumption | 5W Max | Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Advantages
► 4-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (DIP switch)
► Supports flow control and broadcast storm protection.
► Supports VLAN and QoS.
► Supports max 10K bytes frame.
► 110~230VAC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally
hardened
-40°C
to
75°C
(-40°F
to
167°F)
operating
temperature
Overview

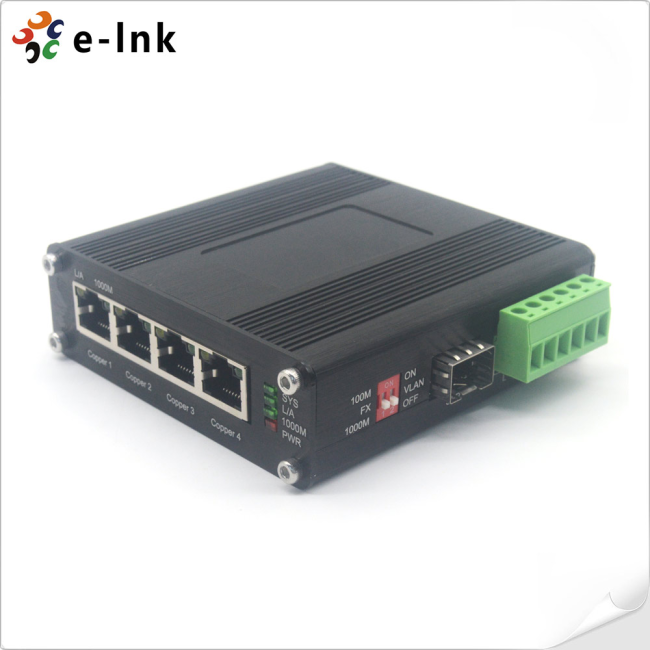

LNK-IMC-A1400G-SFP Series is a DIN rail type Ethernet Switch that supports external SFP Modules and meets EN55022 standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK- A1400G-SFP supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
The LNK-A1400G-SFP Gigabit Ethernet Switch with four 10/100/1000M UTP ports and one 100/1000M SFP sockets, which converting the 4 independent 1000Base-TX twisted pair electrical signal with 1000Base-FX optical signal. It extends the network transmission range from 100m over copper wires to 120Km (single-mode full-duplex mode). The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet. Special AC power input design, support 110V~230VAC.
Ordering Information
|
Model |
Description |
|
LNK-IMC-A1400G-SFP |
Hardened 4-Port 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 110~230VAC Power Supply. Open Wire for Terminal Block |
