| Price | negotiation |
| MOQ | 1pcs |
| Delivery Time | 7-10 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE |
| Model Number | LNK-LED108G |
| Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability | 100000PCS/Month |
| Place of Origin | China | Input Power | 12~48VDC (Non PoE) 48~57VDC (PoE), Redundant Power (6-pin Terminal Block) |
| Packaging Details | Industrial PoE Switch Standard Carton Packaging | Model Number | LNK-LED108G |
| Supply Ability | 100000PCS/Month | Certification | CE |
| Brand Name | E-link | Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal |
| Dimensions (LxWxH): | 150 x 115 x 50 mm | Price | negotiation |
| Delivery Time | 7-10 working days | Minimum Order Quantity | 1pcs |
| Mounting Options: | DIN-Rail | Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Distance | Depend on SFP+ modules used, 20km recommended. |
Product Advantages
· 1 x 10G SFP+ fiber optical port
· 10 x Gigabit Ethernet ports, PoE optional
· supports RJ45 ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation
· Not support VLAN
Technical Indexes
|
Connector: |
8 x 10/100/1000M RJ45 |
|
Optical Port: |
1 x 10G SFP+ |
|
Distance |
Depend on SFP+ modules used, 20km recommended. |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Non PoE) 48~57VDC (PoE) Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
5W Max (PoE in use) 253W Max (PoE not in use) |
|
Resolution |
1920*1080@60Hz |
|
Compatible brand |
NovaStar, Colorlight |
|
Connection method |
Used in pairs, each ports must be connected accordingly, Such as Device A’s Port-1 must link to Device B’s Port-1 |
|
Dimensions (WxDxH): |
150 x 115 x 50 mm |
|
Weight: |
0.6Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
Overview
The E-link LNK-LED108G fiber converter offers a cost-effective way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission.

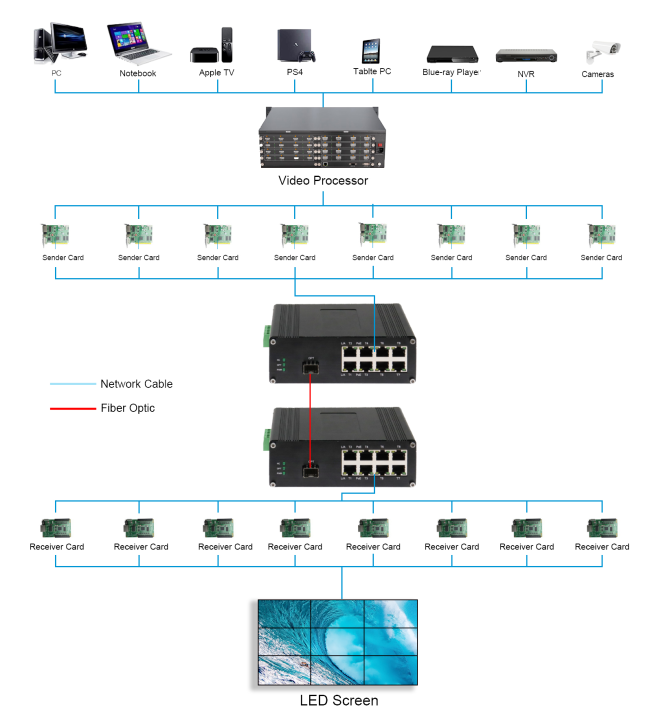

Application
Ordering Information
|
Model |
Description |
|
LNK-LED108G |
Industrial LED Screen Fiber Converter with 1x10G SFP+ Port + 8 x 10/100/1000M Ethernet RJ45 Ports. |
|
LNK-LED108GP |
Industrial LED Screen PoE Fiber Converter with 1x10G SFP+ Port + 8 x 10/100/1000M Ethernet RJ45 Ports. |
