| Price | Negotiated |
| MOQ | 1pcs |
| Delivery Time | 5-12working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | ISO9001, CE, FCC, RoHS |
| Model Number | LNK-DAN-D5 |
| Packaging Details | standard export package |
| Payment Terms | T/T,PayPal |
| Supply Ability | 100pcs/mouth |
| Operating Temperature | 0°C to 50°C | Place of Origin | China |
| Transmission Distance | Up to 20km | Hdmi Version | HDMI 2.0 |
| Packaging Details | standard export package | Ethernet Interface | RJ45（568B） |
| Model Number | LNK-DAN-D5 | Supply Ability | 100pcs/mouth |
| Certification | ISO9001, CE, FCC, RoHS | Brand Name | E-link |
| Payment Terms | T/T,PayPal | Operating Humidity | 10% - 80%RH (no condensation) |
| Price | Negotiated | Delivery Time | 5-12working days |
| Product Type | Fiber Optic Extender | Function Control | Automatic |
| Minimum Order Quantity | 1pcs |
Dante 2Ch Analog Input Dongle Converter Advantage
► Plug and play.
► 24-bit audio support
► 2x0 Audio Channels
► Support power via PoE Injector (IEEE802.3af)
Overview

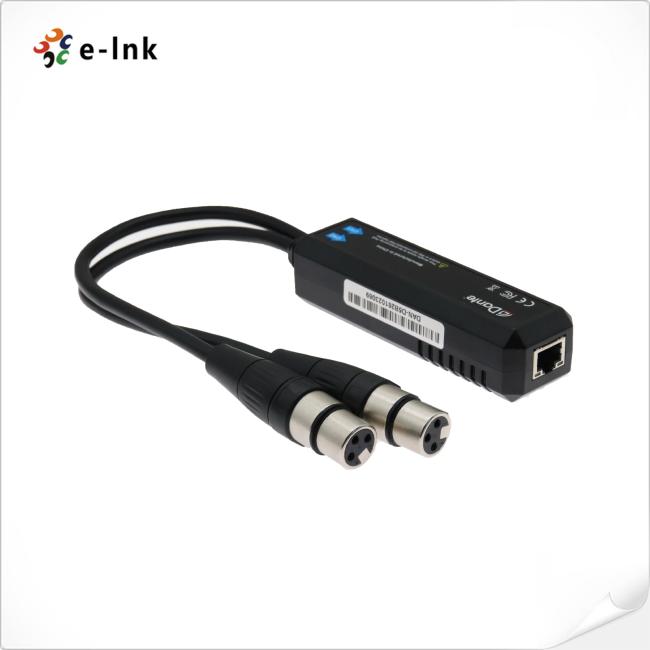

The LNK-DAN-D5 2Ch Analog Input Dongle Converter can connects
to your Dante network and supports Analog 2X0 channels audio, allowing
receive analog audio signal, convert the analog signal to digital signal
and transmit through Dante network.
DVI Fiber Extender Picture
Technical Indexes
|
Audio |
|
|
Max signal level |
+24 dBu |
|
Frequency Response |
20Hz to 20kHz(-/+0.5dB) |
|
Impedance |
20k Ohm balanced, 10k Ohm unbalanced |
|
Dynamic Range |
>100 dB |
|
Signal to Noise Ratio |
>100 dB |
|
THD |
<0.01% @+4dBu |
|
Dante |
|
|
Sample Rate |
44.1kHz, 48kHz, 96kHz |
|
Bit Depth |
24 |
|
Dante Device latency |
1,2 or 5ms (configurable using Dante Controller) |
|
Type |
Analog 2x0 |
|
General |
|
|
Operation Temperature |
-5 to +55℃ (+23° to +131°F) |
|
Storage Temperature |
-25 to +70℃ (-13° to +158°F) |
|
Power |
802.3af PoE |
|
Power Consumption |
3.15W(Max) |
|
Dimension (W*H*D) |
114 x 30 x 28 mm |
|
Cable length |
30cm |
|
Net Weight |
145g |
Ordering Information
|
Model |
Description |
|
LNK-DAN-D5 |
Dante 2Ch Analog Input Dongle Converter |
