| Price | negotiation |
| MOQ | 1pcs |
| Delivery Time | 7-10 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE |
| Model Number | LNK-IMC208SG-SFP |
| Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability | 100000PCS/Month |
| Place of Origin | China | Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Dimensions (W x D x H) | 62 x 44 x 18 mm | Power supply | DC 5V (Type-C) |
| Model Number | LNK-IMC208SG-SFP | Supply Ability | 100000PCS/Month |
| Certification | CE | Wavelength | 850nm/1310nm/1550nm |
| Brand Name | E-link | Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal |
| Price | negotiation | Delivery Time | 7-10 working days |
| Fiber Port | 1 SC Fiber Port, 100Base-FX or 1000Base-X dual mode (auto detection) | Minimum Order Quantity | 1pcs |
| LFP | Not Support | Access mode | 10/100/1000Mbps Gigabit Ethernet |
Advantages
► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► USB-powered for portability, 5VDC power input
► 1 SC Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Micro type design
► Support 9k jumbo frame
► Supporting full-duplex and half-duplex and its auto-sensed
► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
Technical Indexes
|
Parameter |
Specifications |
|
Access mode |
10/100/1000Mbps Gigabit Ethernet |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
|
Fiber Port |
1 SC Fiber Port, 100Base-FX or 1000Base-X dual mode (auto detection) |
|
Wavelength |
850nm/1310nm/1550nm |
|
Port |
One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125μm) Single mode Dual-fiber: SC (9/125μm) Single mode Single fiber: SC (9/125μm) |
|
Conversion means |
Media conversion |
|
LFP |
Not Support |
|
Power supply |
DC 5V (Type-C) |
|
Power consumption |
3W |
|
Maintaining temperature |
-40~70ºC |
|
Dimensions (W x D x H) |
62 x 44 x 18 mm |

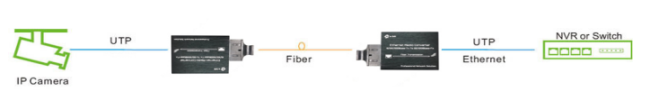

Application
Ordering
Information
|
Model |
Description |
|
LNK-M3011 |
Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, demi-monde, 500m, 850nm, SC, standalone, external power adaptor |
|
LNK-M3011-20 |
Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor |
|
LNK-M3011S-20A |
Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM (single fiber bi-direction), 20km, 1310nm TX/1550nm RX, SC, standalone, external power adaptor |
|
LNK-M3011S-20B |
Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM (single fiber bi-direction), 20km, 1550nm TX/1310nm RX, SC, standalone, external power adaptor |
Overview
The LNK-IMC208SG-SFP is a managed industrial network switch, featuring 8 10/100/1000Base-TX ports and 2 100/1000Base-X SFP ports. Among them, the 8 ports are RJ45 Ethernet interfaces, and the 2 100/1000Base-X SFP ports support 1 or 2 core single-mode fiber and multi-mode fiber. With its stable and reliable design as well as user-friendly features, this product serves as an ideal choice for integrating networks between remote locations, enabling efficient connection of various network devices such as IP cameras and wireless access points.
