| Price | Negotiation |
| MOQ | 1 pcs |
| Delivery Time | 5-12 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | ROHS,FCC,CE |
| Model Number | LNK-201M |
| Packaging Details | USB Fiber Network Adapter Standard Export Package |
| Payment Terms | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability | 1000 pcs/month |
| Place of Origin | China | Packaging Details | USB Fiber Network Adapter Standard Export Package |
| Video Support | 8K@60Hz/4K@120Hz/1080p/1080i/720p Up to 7680x4320@60Hz | Model Number | LNK-201M |
| Supply Ability | 1000 pcs/month | Certification | ROHS,FCC,CE |
| Brand Name | E-link | Payment Terms | L/C, T/T, Western Union, MoneyGram, Paypal |
| Signal Support | HDMI 2.1 HDMI format standard | Price | Negotiation |
| Delivery Time | 5-12 working days | Minimum Order Quantity | 1 pcs |
| Type: | Mini 8K/60Hz HDMI2.1 over Single-Core Multimode Fiber Extender | Input Signals | HDMI2.1 |
| Fiber Connector | 1 x LC Connector |
Advantages
► Supports HDMI2.1 Video up to 8K/60Hz (Y:U:V 4:4:4)
► No Settings or Adjustments Necessary
► Adopt WDM technology to realize high-definition audio and video transmission through a single OM5 multi-mode optical fiber
► Supports up to 100m Transmission Distance with OM5 multimode fiber
► Standard HDMI2.1 Connector
► Integrated USB Connector for Power
► Hot-Pluggable
► The TMDS signal is transmitted through a multimode optical fiber, which has good anti-interference performance
► Uses Small, Reliable LC Optical Connector
► Support EDID, HDCP, CEC transparent transmission
Overview

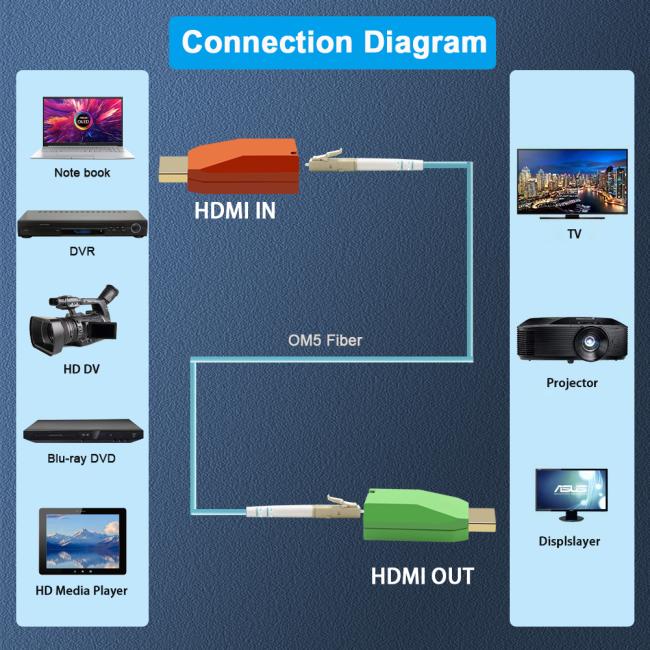

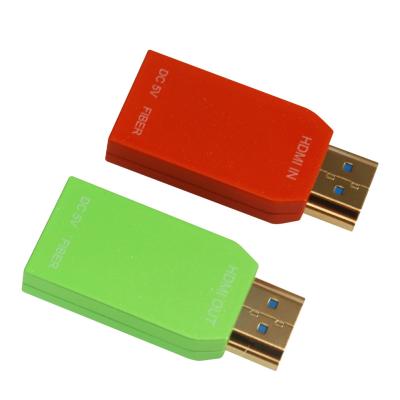

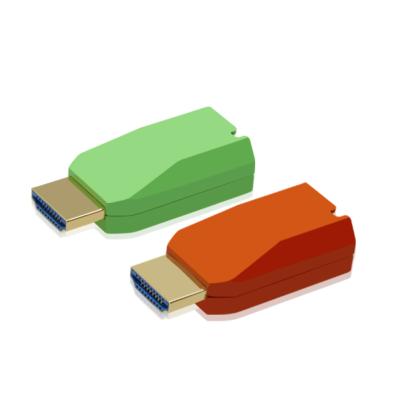

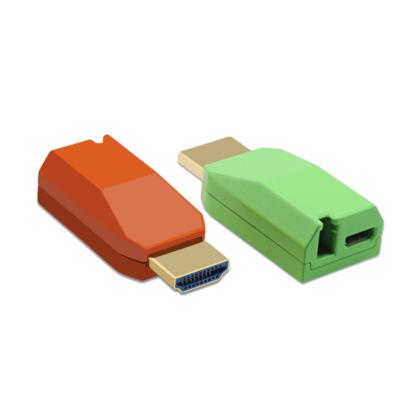

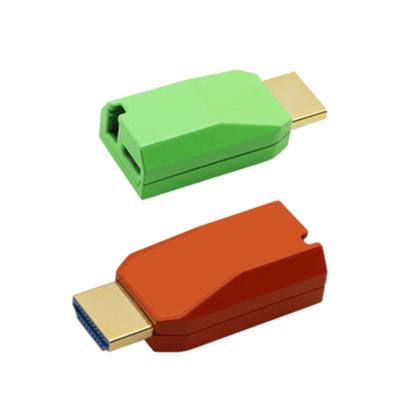

The LNK-201M is a mini 8K/60Hz HDMI2.1 over Single-Core MM compact fiber extender that is pluggable directly into your device. Extend your 4K video source over fiber up to 100m to your desired display with this incredibly compact set. The set also promotes secure data with negligible RFI/EMI emissions or loss of video quality due to no copper conductor present.
The 8K HDMI optical fiber extenders are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 2.1 signal over OM5 multimode optical fiber at 850nm, up to distances of 100m, at a resolution of 8K/60Hz. LNK-201M-T converts an HDMI signal to a single 48Gb/s serial data stream for transmission over single optical fibers. LNK-201M-R converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
Technical Indexes
| Type of Extender | Mini 8K/60Hz HDMI2.1 over Single-Core Multimode Fiber Extender |
| Input Signals | HDMI2.1 |
| Signal Support | HDMI 2.1 HDMI format standard |
| Video Support |
8K@60Hz/4K@120Hz/1080p/1080i/720p Up to 7680x4320@60Hz |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Website Specifications | Color space 444, 420, 400 |
| EDID | Support |
| HDCP | Support |
| CEC | Support |
| Fiber Connector | 1 x LC Connector |
| Transmission Rate | 48Gbps |
| Transmission Distance | OM5 Multi Mode, up to 100M |
| Operating Temperature | -40°C to + 70°C |
| Storage Temperature | -20°C to + 85°C |
| Humidity | to 90% RH (non-condensing) |
| Safety Approvals | CE, RoHS, FCC |
| Dimension (WxDxH) | 2.24 x 0.6 x 0.55 in (57x16x14mm) |
| Weight | 0.1 kg / 0.22 lb |
| Operation Voltage | 5VDC |
| Operation Current | TX:150mA |
| Power Supply |
TX: 5V (take power from the HDMI interface on the Source side, some devices cannot provide sufficient power supply, need to connect external power supply) RX: need external power supply 5V, use Micro USB charging cable |
| Power Consumption | TX: <800mW; RX: <400mW |
Ordering
Information
| Model | Description |
| LNK-201M | Mini 8K/60Hz HDMI2.1 over Single-Core Multimode Fiber Extender, OM5 Multi-mode Fiber, 100 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input |
