| Price | USD 84000 To USD 100000 Per Set |
| MOQ | 1 Set / Printing On Line V Bottom Paper Bag Making Machines To Make Paper Bags |
| Delivery Time | 60 Day |
| Brand | Fect |
| Place of Origin | China |
| Certification | CE |
| Model Number | PF-350J V Bottom Paper Bag Making Machines |
| Packaging Details | Export-Standard And Sea-Worthy Wooden Case / Printing On Line V Bottom Paper Bag Making Machines To Make Paper Bags |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 30 Sets Per Month/ Printing On Line V Bottom Paper Bag Making Machines To Make Paper Bags |
| Speed | 50-610 pcs/min or 120m/min | Place of Origin | China |
| Packaging Details | Export-Standard And Sea-Worthy Wooden Case / Printing On Line V Bottom Paper Bag Making Machines To Make Paper Bags | Gusset width | 20-120mm |
| Model Number | PF-350J V Bottom Paper Bag Making Machines | Supply Ability | 30 Sets Per Month/ Printing On Line V Bottom Paper Bag Making Machines To Make Paper Bags |
| Bag mouth height | 15/20mm | Certification | CE |
| Name | Printing On Line V Bottom Paper Bag Making Machines To Make Paper Bags | Material thickness | 30-80gsm |
| Brand Name | Fect | Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Price | USD 84000 To USD 100000 Per Set | Delivery Time | 60 Day |
| Cutting length | 175-715mm | Minimum Order Quantity | 1 Set / Printing On Line V Bottom Paper Bag Making Machines To Make Paper Bags |
| Bag width | 70-350mm |
Printing On Line V Bottom Paper Bag Making Machines To Make Paper Bags

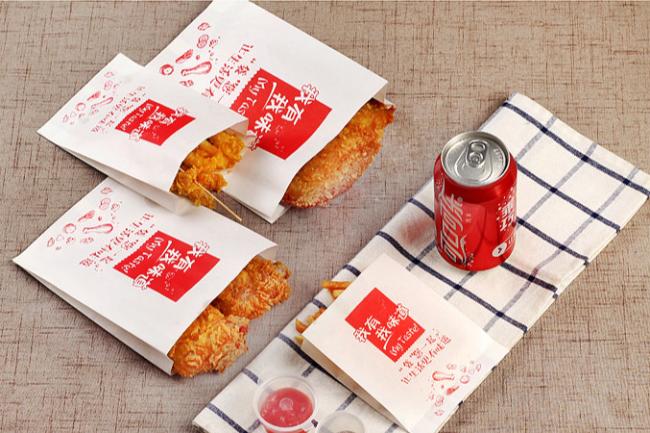

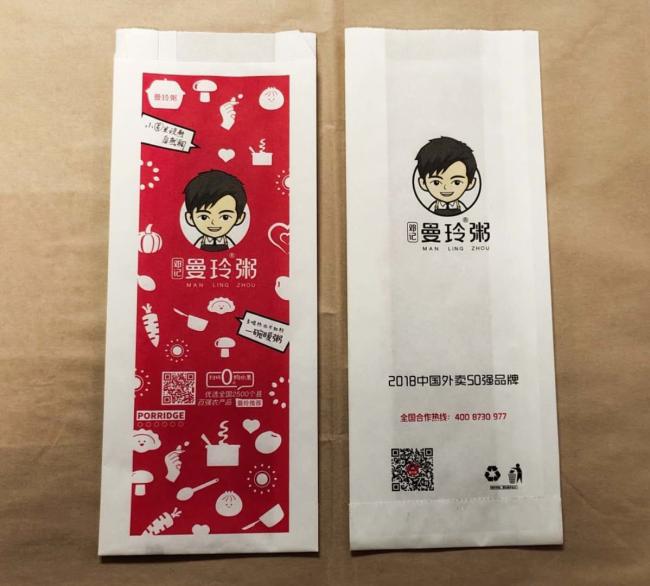

Printing On Line V Bottom Paper Bag Making Machines To Make Paper Bags is suitable for varied primary and printed rolling bag, such as Kraft paper,slick paper,coated paper,medico paper and so on. It finishes all procession all in a time consisting: perforating, middle gluing,printed pattern tube forming, calibration snapping, bottom folding, bottom forming, and collect final product quantitatively. This machine operate easier, working more efficient, and performance more steadily. It is a fantastic machine for full paper bag, paper bag with window, leisure snack bag, bakery bag, fast food bag, dry fruit bag eco-bag and so on.
♦Technical Parameters♦
|
Model |
PF-350J Printing On Line V Bottom Paper Bag Making Machines To Make Paper Bags |
|
Machine Speed |
50-610 pcs/min or 120 m/min |
|
Cutting Length(C) |
175-715mm |
|
Bag Length L |
170-710mm |
|
Bag Width W |
70-350mm |
|
Gusset Width G |
20-120mm |
|
Bag Mouth Height H |
15/20mm |
|
Material Thickness |
35-80g/m² |
|
Scroll Width |
100-960mm |
|
Scroll Diameter |
200-1200mm |
|
Scroll Core Diameter |
76mm |
|
Rolling Film Width |
50-200mm |
|
Film Thickness |
0.022-0.035mm (OPP,PET) |
|
Rolling Film Diameter |
500mm |
|
Rolling Film Core Diameter |
76mm |
|
Power Supply |
3 phase 380V 26kw |
|
Air Pressure Supply |
≥0.12m3/min,0.6-1.2MP |
|
Machine Weight |
6700kg |
|
Machine Size |
8800x2300x1900mm |
♦Feature♦
1. Available Germany LENZE Human-Computer Touch Screen,It is easy to operate and control.
2. Available Germany LENZE Motion Controller( PC), Integrated with optical fiber,ensure the machine with high speed steadily.
3. Available Germany LENZE Servo Motor Integrated With Germany Original SICK Rectifying Photo Sensor, ensure the printed paper length under tracking precisely.
4. Available material hydraulic loading up and down structure, integrated with constant tension control unwinding system.
5. Available Italy SELECTRA Material edge rectify system, substantially cut off the edge alignment time
