Double Shaft Worm Brushless DC Gear Motor 12v 24v D Type 470rpm

Price	Negotiation
MOQ	100
Delivery Time	5-8working days
Brand	Aslong
Place of Origin	China
Certification	CE,ROHS,CCC
Model Number	5840-3650SCDtype
Payment Terms	T/T, Western Union, MoneyGram
Supply Ability	10000pcs/Week

Product Details

Product Specification

Speed(rpm)	8-470RPM	Usage	Home Appliance,Electric Bicycle,Car
Place of Origin	China	Commutation	Brushless
Protect feature	Totally Enclosed,	Model Number	5840-3650SCDtype
Supply Ability	10000pcs/Week	Certification	CE,ROHS,CCC
Brand Name	Aslong	Payment Terms	T/T, Western Union, MoneyGram
Type	BLDC motor	Price	Negotiation
Delivery Time	5-8working days	Efficiency	IE 2
Product name	Double Shaft Worm Gear Motor Brushless DC Motor D type 5840-3650 8-470rpm 2.5-70KG 12v 24v	Minimum Order Quantity	100

Product Description

Double Shaft Worm Brushless DC Gear Motor 12v 24v D Type 470rpm

Double Shaft Worm Gear Motor Brushless DC Motor D type 5840-3650 8-470rpm 2.5-70KG 12v 24v

Specification:

Voltage: DC12V

No-load Speed: 8rpm,14rpm,20rpm,40rpm,80rpm,130rpm,235rpm

Voltage: DC24V

No-load Speed: 16rpm,27rpm,40rpm,80rpm,160rpm,260rpm,470rpm

Error: ±5%

Wiring:

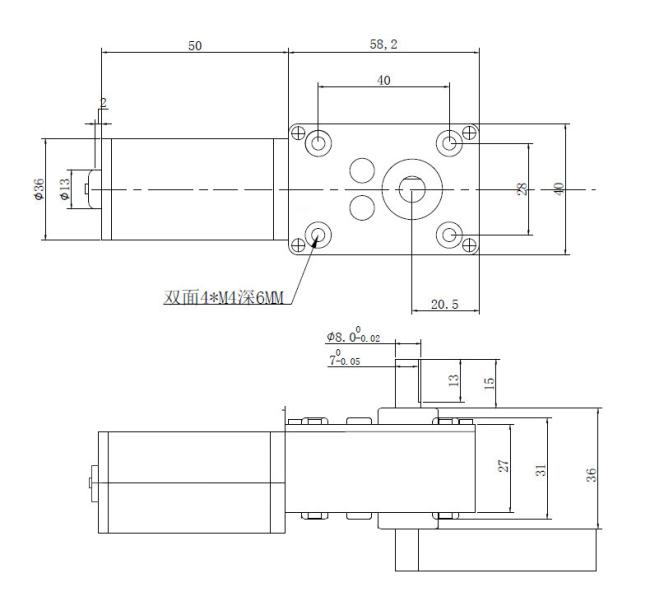

Datasheet:

5840-3650
Reduction ratio	Rated Volt	No Load		AT Load			STall
	Rated Volt	SPEED	CURRENT	Torque	SPEED	Current	TOGQCE	CURRENT
	V	RPM	mA	KG.cm	RPM	A	KG..CM	A
17	12	235	230	2.5	180	0.8	4.3	3
31	12	130	230	4.5	100	0.8	8	3
50	12	80	230	7.3	60	0.8	12.5	3
100	12	40	230	14.5	30	0.8	25	3
200	12	20	230	29	15	08	51	3
290	12	14	230	42	10	0.8	70	3
500	12	8	230	60	6	0.8	70	3
17	24	470	300	5	380	1.6	8.5	3
31	24	260	300	9.5	200	1.6	15.5	3
50	24	160	300	15	130	1.6	25	3
100	24	80	300	30	60	1.6	50	3
200	24	40	300	40	30	1.6	70	3
290	24	27	300	50	20	1.6	70	3
500	24	16	300	60	12	1.6	70	3
