| Price | Negotiation |
| MOQ | 100 |
| Delivery Time | 5-8Working days |
| Brand | Aslong |
| Place of Origin | China |
| Certification | Rosh,CE |
| Model Number | CM16-030 |
| Packaging Details | bubble + carton |
| Payment Terms | T/T, Western Union, MoneyGram, L/C |
| Supply Ability | 10000pcs/week |
| Speed(rpm) | 46-3000rpm | Usage | Home Appliance,Electric Bicycle |
| Torque | 14-896g.cm | Place of Origin | China |
| Keywords | High Torque Gear Motor | Packaging Details | bubble + carton |
| Protect feature | Totally Enclosed | Model Number | CM16-030 |
| Supply Ability | 10000pcs/week | Certification | Rosh,CE |
| Typical applications | Electric Toy Model,Curtain | Brand Name | Aslong |
| Payment Terms | T/T, Western Union, MoneyGram, L/C | Type | Micro Motor |
| Price | Negotiation | Delivery Time | 5-8Working days |
| Efficiency | IE 1 | Product name | 24V Micro DC Planetary Gear Motor |
| Minimum Order Quantity | 100 | Voltage(v) | 12V,24V,12V/24V |
| Diameter | 16mm |
16mm Micro Planetary Gear Motor 24V
16mm Micro Planetary Gear Motor 24V Brush High Torque For Intelligent Robot , Metal Shaft Material
| Specification: | ||
| Performance Range: | Key Features: | Typical Applications: |
|
- Voltage: 6-12VDC |
- Metal/Carbon Brush | - Electric Curtain |
|
- Speed: 46-3000rpm |
- Low noise | - Electric Valve |
|
- Torque 14-896g.cm |
- CW/CCW Running | - Safe and Locking |
| - Shaft: D shape (Motor shaft shape and length can be customized) | - Long life | - Robot |
| - Construction:Permanent Magnet | - Small Size | - Home Appliance, |
| - Commutation:Brushed DC motor | - High Torque | - Precise equipment |

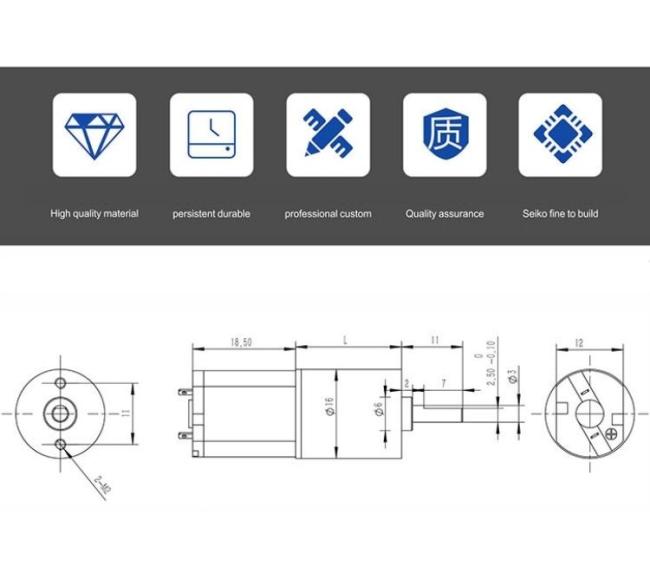

Drawing:
| Datasheet | |||||||
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | MA | r/min | MA | g.cm | |||
| CM16-030 | 3-12V | 12VDC | 3000 | 50 | 2300 | 130 | 14 |
| 3-12V | 12VDC | 533 | 50 | 410 | 130 | 78 | |
| 3-12V | 12VDC | 187 | 50 | 143 | 130 | 250 | |
| 3-12V | 12VDC | 46 | 50 | 32 | 130 | 896 | |
|
Remarks:
1. Shaft dimension can be customized. 2. The Voltage can be 3V, 4.5V, 5V, 6V, 12V; The DC Motor's speed is adjustable. 3. This gearbox can matched with other DC Motor. |
|||||||
Planetary Gear Motor
- Provides the advantages of high cost performance, wide application, economical and practical, long life, etc. In the application of servo control, it exerts good servo rigidity effect, accurate positioning control, and has medium and low backlash on the operating platform. Efficiency, high input speed, high input torque, smooth operation, low noise and other characteristics,
- The appearance and structure design are light and small. Use life-long replacement-free lubricating oil, and no matter where it is installed, it can be operated without maintenance. It has a fully enclosed design and has an IP65 degree of protection, so it can also be used when the working environment is poor. Industrial robots, and automated mechanical and electrical products industries.
--The advantages of Planetary Gear Motor are its compact structure, small return clearance, high precision, long service life, and large rated output torque.
