| Price | Negotiable |
| MOQ | 200pcs |
| Delivery Time | 7-15working days |
| Brand | BEECORE |
| Place of Origin | China |
| Certification | ISO9001, ISO14001 |
| Model Number | BHC3003 |
| Packaging Details | Plywood case |
| Payment Terms | T/T, L/C, PayPal |
| Supply Ability | 1000pcs per day |
| Side length | 1.0, 1.83, 2mm or Customizable | Frame | Sponge frame |
| Place of Origin | China | Applications | Indoor |
| Size | 100*100, 200*200mm or Customizable | Packaging Details | Plywood case |
| Color | White | Model Number | BHC3003 |
| Supply Ability | 1000pcs per day | Foil thickness | 0.04, 0.05, 0.06mm |
| Certification | ISO9001, ISO14001 | Brand Name | BEECORE |
| Payment Terms | T/T, L/C, PayPal | Thickness | 5, 10mm or Customizable |
| Price | Negotiable | Delivery Time | 7-15working days |
| Product name | Aluminum honeycomb core photocatalyst filter | Minimum Order Quantity | 200pcs |
| Main components | TiO2 | Cell size | 1.04, 1.73, 3.2mm or Customizable |
Aluminum Honeycomb Core Photocatalyst Filter Screen With Sponge Frame
1.
Descriptions:
The main component is the photocatalyst filter screen with aluminum honeycomb core of photocatalyst as the carrier. Generally, aluminum honeycomb core with side length less than 3mm will be used, so the effect will be better.
Titanium dioxide (TiO2) It is used as photocatalyst raw material. Ordinary titanium dioxide (TiO2) needs to be exposed to light with a wavelength of less than 388nm (belonging to ultraviolet light) (our Photocatalyst series products generally select 185nm and 284nm dual band ultraviolet tubes) to play the role of photocatalysis).
2. Specifications:
| Aluminum honeycomb core photocatalyst filter | ||
| Specifications | Side length (mm) | Foil Thickness (mm) |
| BHC3003-0.8-0.021L | 0.8 | 0.021 |
| BHC3003-0.8-0.025L | 0.025 | |
| BHC3003-0.8-0.03L | 0.03 | |
| BHC3003-1-0.025L | 1 | 0.025 |
| BHC3003-1-0.03L | 0.03 | |
| BHC3003-1-0.04L | 0.04 | |
| BHC3003-1.5-0.03L | 1.5 | 0.03 |
| BHC3003-1.5-0.04L | 0.04 | |
| BHC3003-1.5-0.05L | 0.05 | |
| BHC3003-1.83-0.04L | 1.83 | 0.04 |
| BHC3003-1.83-0.05L | 0.05 | |
| BHC3003-1.83-0.06L | 0.06 | |
| BHC3003-2-0.04L | 2 | 0.04 |
| BHC3003-2-0.05L | 0.05 | |
| BHC3003-2-0.06L | 0.06 | |
| BHC3003-2.5-0.04L | 2.5 | 0.04 |
| BHC3003-2.5-0.05L | 0.05 | |
| BHC3003-2.5-0.06L | 0.06 | |
| BHC3003-3-0.04L | 3 | 0.04 |
| BHC3003-3-0.05L | 0.05 | |
| BHC3003-3-0.06L | 0.06 | |
| BHC3003-3-0.08L | 0.08 | |
| Size | 100*100, 300*300, 500*500, 1000*1000mm or customizable | |
| Surface spraying | Photocatalyst, activated carbon, activated manganese | |
| Frame | Aluminum, Sponge, Paper frame | |
| Materials | Al3003 or other materials | |
| Supply form | Expanded | |
| Unperforated | ||
3. Aluminum Honeycomb Core Photocatalyst Filter has several advantages:
• High efficiency decomposition
• No dust
• No odor
• Custom size
• Custom frame
• Coating thickness
• Environment protection
4. Applications:
• Fresh air system, air purifier, air conditioner
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb core photocatalyst filter of quality control of parts, processing, testing, packaging, etc.

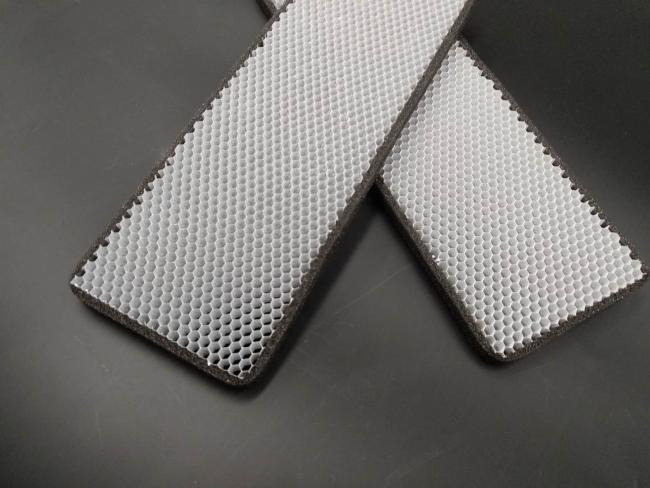

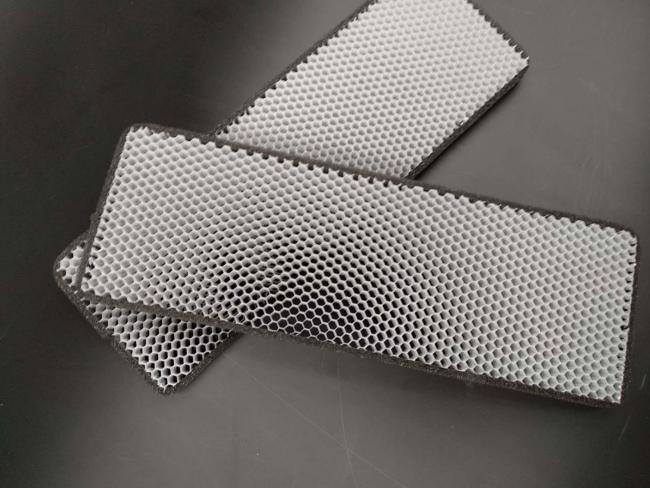

6. Aluminum Honeycomb Core Photocatalyst Filter of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
9. Factory show
10. FAQ
Q1. What is Aluminum Honeycomb Core Photocatalyst Filter usd for?
A: The aluminum honeycomb core photocatalyst filter is used for Air conditioning, fresh air system, filter.
Q2. What are the advantages of Aluminum Honeycomb Core Photocatalyst Filter?
A: Aluminum honeycomb core photocatalyst filter has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution, high efficiency, no powder dropping.
Q3. What is the packaging method of Aluminum Honeycomb Core Photocatalyst Filter?
A: Aluminum honeycomb core photocatalyst filter of samples are packed in cardboard and bulk orders are packed in plywood cases.
