| Price | Negotiable |
| MOQ | 200pcs |
| Delivery Time | 7-15working days |
| Brand | BEECORE |
| Place of Origin | China |
| Certification | ISO9001, ISO14001 |
| Model Number | BHC3003 |
| Packaging Details | Plywood case |
| Payment Terms | T/T, L/C, PayPal |
| Supply Ability | 1000pcs per day |
| Side length | 3, 4, 5, 6, 7, 8, 10, 11, 12, 15, 17, 19, 20, 25mm or Customizable | Place of Origin | China |
| Applications | Building, indoor, outdoor or other | Size | 1220*2440mm or Customizable |
| Packaging Details | Plywood case | Materials | 3003 and 5052 |
| Color | Aluminum natural color | Model Number | BHC3003 |
| Supply Ability | 1000pcs per day | Foil thickness | 0.04, 0.05, 0.06, 0.08, 0.1, 0.2mm |
| Certification | ISO9001, ISO14001 | Brand Name | BEECORE |
| Payment Terms | T/T, L/C, PayPal | Thickness | 3-80mm or Customizable |
| Advantage | Light weight, high strength, Environmental protection | Price | Negotiable |
| Delivery Time | 7-15working days | Product name | Aluminum honeycomb core |
| Minimum Order Quantity | 200pcs | Cell size | 6-50mm or Customizable |
Side Length 3-25mm 3003 Aluminum Honeycomb Core For Construction Industry
1. Descriptions:
Aluminum honeycomb core is made of 3003 or 5052 aluminum alloy foil after gluing, stacking and hot pressing into an aluminum honeycomb core block, then sawed according to the customer's requirements, cut into the thickness required by the customer, and finally stretched into a hexagon, then trimmed and changed to the size required by the customer. Our aluminum honeycomb core specifications are customized.
Aluminum honeycomb core is hexagonal and has the advantages of good mechanical properties and flat surface. It is widely used in railway transportation, building decoration, electrical appliances, solar thermal utilization, new energy vehicles and other fields.
2. Specifications:
| Aluminum honeycomb core | |||||
| Side length(mm) | 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 | ||||
| Foil thickness(mm) | 0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 | ||||
| Alloy | Al3003 or Al5052 | ||||
| Supply form | Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted | ||||
| Technical Data Sheet | |||||
|
Specification |
Side length (mm) |
Density
(kg/m³) |
Compression
strength
(MPa) |
L-Shear
strength
(MPa) |
W-Shear
strength
(MPa) |
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-2-0.03 | 2 | 66 | 2.39 | 1.7 | 1.00 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
| BHC3003-2-0.04 | 2 | 77 | 3.10 | 2.18 | 1.25 |
| BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series | |||||
3. Aluminium honeycomb core has several advantages:
• Light weight
• High strength
• Super flatness
• Fire retardant
• Sound insulation
• Environment protection
4. Applications:
• Honeycomb panel
• Railway transportation
• Construction and decoration
• Electrical appliance
• Solar thermal utilization
• New energy vehicle
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for aluminum honeycomb core of quality control of parts, processing, testing, packaging, etc.

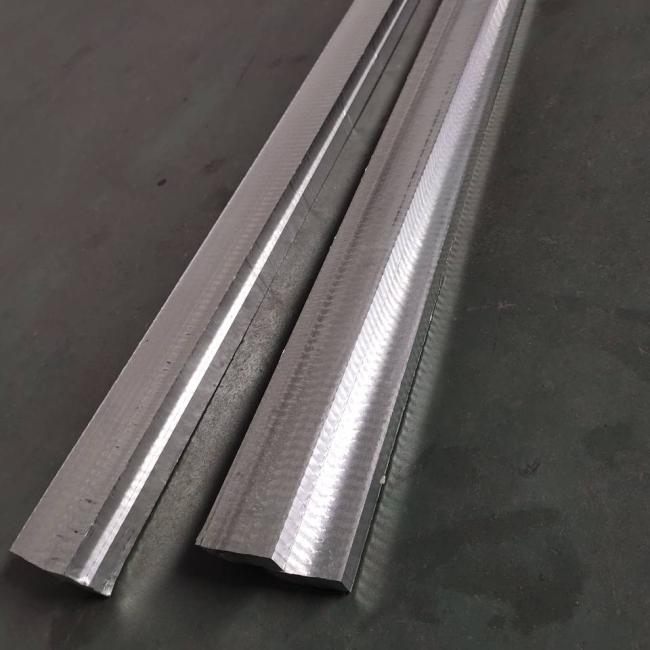

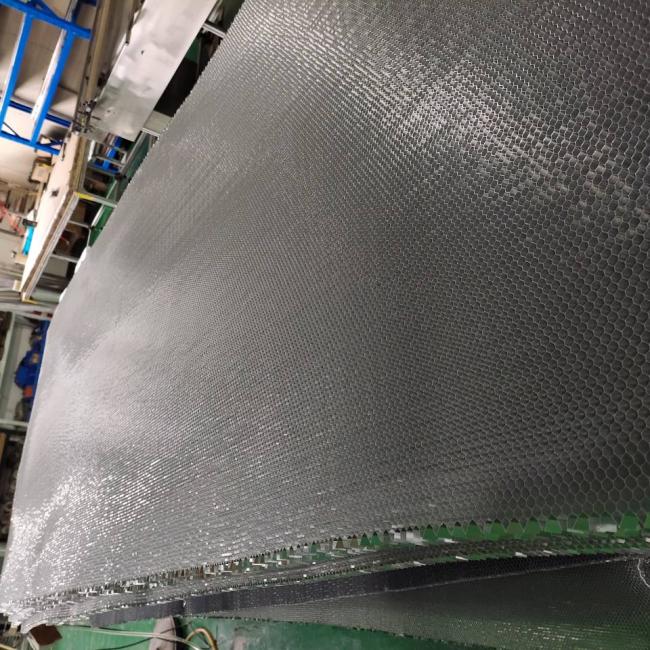

6. Aluminum honeycomb core of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
1957 Besin(Dutch) International Group was estabilshed and dedicated to reseach and development of BEECORE and BEEBOARD
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
9. Factory show
10. FAQ
Q1. What is aluminum honeycomb core usd for?
A: The aluminum honeycomb core which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding and building materials industry, honeycomb panel, railway transportation, construction and decoration, electrical appliance, solar thermal utilization.
.
Q2. What are the advantages of aluminum honeycomb core?
A: Aluminum honeycomb core has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution.
Q3. What is the packaging method of aluminum honeycomb core?
A: Aluminum honeycomb core of samples are packed in cardboard and bulk orders are packed in plywood cases.
