| Price | Negotiable |
| MOQ | 200pcs |
| Delivery Time | Around 15working days |
| Brand | BEECORE |
| Place of Origin | Taizhou, Jiangsu Province, China |
| Certification | ISO9001, ISO14001 |
| Model Number | BHC3003 |
| Packaging Details | Plywood case |
| Payment Terms | T/T, L/C, PayPal |
| Supply Ability | 2000 sq meter per day |
| Side length | 6, 7, 8, 10mm or Customizable | Place of Origin | Taizhou, Jiangsu Province, China |
| Size | 1500*2000mm or Customizable | Packaging Details | Plywood case |
| Materials | Al3003 and Al5052 | Color | Aluminum natural color or Customizable |
| Top and bottom panel | Aluminum, HPL, FRP, Stone, or customizable | Core material | Aluminum honeycomb core |
| Model Number | BHC3003 | Supply Ability | 2000 sq meter per day |
| Foil thickness | 0.06, 0.076, 0.1mm | Certification | ISO9001, ISO14001 |
| Surface treatment | PVDF, PE, Anodic oxidation | Brand Name | BEECORE |
| Payment Terms | T/T, L/C, PayPal | Thickness | 32mm or Customizable |
| Advantage | Fireproof, burrfree | Price | Negotiable |
| Delivery Time | Around 15working days | Product name | Aluminum honeycomb panel |
| Minimum Order Quantity | 200pcs | Aluminum panel thick | 0.8, 1.0, 1.2mm or Customizable |
Lightweight And High-Strength Aluminum Honeycomb Panels Are Used On Solar Panels
1. Descriptions:
Aluminum honeycomb panels are increasingly used in solar panel applications due to their lightweight, high strength, and excellent structural properties. Here’s how they are applied:
1.
Structural
Support
for
Solar
Panels
The
aluminum
honeycomb
core,
sandwiched
between
two
thin
aluminum
face
sheets,
provides
a
rigid
yet
lightweight
backing
for
solar
panels.
This
helps
reduce
the
overall
weight
of
the
solar
array
while
maintaining
structural
integrity,
making
it
ideal
for
rooftop
installations
and
large
solar
farms
where
weight
is
a
concern.
2.
Enhanced
Durability
&
Weather
Resistance
The
corrosion-resistant
nature
of
aluminum
makes
honeycomb
panels
suitable
for
outdoor
solar
applications.
They
can
withstand
harsh
weather
conditions,
including
wind,
rain,
and
UV
exposure,
without
warping
or
degrading,
ensuring
long-term
stability
for
solar
modules.
3.
Improved
Heat
Dissipation
Aluminum
honeycomb
panels
help
in
thermal
management
by
dissipating
heat
more
efficiently
than
solid
metal
sheets.
This
prevents
solar
cells
from
overheating,
improving
efficiency
and
lifespan.
4.
Lightweight
&
Easy
Installation
Due
to
their
high
strength-to-weight
ratio,
aluminum
honeycomb
panels
reduce
the
load
on
mounting
structures,
simplifying
installation
and
lowering
costs,
especially
in
rooftop
and
floating
solar
systems.
5.
Integration
with
Building-Integrated
Photovoltaics
(BIPV)
In
architectural
applications,
aluminum
honeycomb
panels
can
serve
as
both
a
structural
element
and
a
mounting
surface
for
solar
cells,
enabling
seamless
integration
into
facades,
roofs,
and
canopies.
6.
Floating
Solar
Farms
Their
buoyancy
and
resistance
to
water
corrosion
make
aluminum
honeycomb
panels
a
viable
option
for
floating
solar
platforms,
where
lightweight
yet
durable
support
structures
are
essential.
By leveraging these advantages, aluminum honeycomb panels contribute to more efficient, durable, and cost-effective solar energy systems.
2. Specifications:
| Aluminum honeycomb panel | |
| Panel total thickness | 5mm-50mm or Customized |
| Width | 1220mm,1500mm or Customized |
| Length | 2440mm or Customized |
| Surface finish | PE/PVDF/Anodic oxidation |
| Color |
White, Sparkling Silver, WoodenGrain, Mirror, Brushed or other color as requested |
| Applications | Decorative material for buildings, home ,office, sign board, etc |
| Specification of honeycomb core | |||||
| Side length(mm) | 0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 | ||||
| Foil thickness(mm) | 0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 | ||||
| Alloy | Al3003 | ||||
| Supply form | Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted | ||||
| Technical Data Sheet | |||||
|
Specification |
Side length (mm) |
Density
(kg/m³) |
Compression
strength
(MPa) |
L-Shear
strength
(MPa) |
W-Shear
strength
(MPa) |
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-2-0.03 | 2 | 66 | 2.39 | 1.7 | 1.00 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
| BHC3003-2-0.04 | 2 | 77 | 3.10 | 2.18 | 1.25 |
|
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series |
|||||
3. Applications:
• Gas piping, cables, building materials, etc
• Curtain wall decoration for buildings where security is important, such as airport, hospital and research center
• Curtain wallboards for outside walls of normal buildings
• Renovations for old buildings and movable houses
• Decoration for indoor wall, ceiling, bathroom, kitchen and balcony
• Facades
• Billboards, exhibition desks and notice boards
• Wallboards and ceilings for tunnels
• Materials for industrial application, car and ship bodies
4. Aluminum honeycomb panel has several advantages:
• Excellent fireproof property
• Super peeling strength
• Perfect cold resistance performance
• Excellent surface flatness and smoothness
• Superior weather, corrosion, pollutant resistance
• Even coating, various colors
• Superior impact resistance
• Lightweight and easy to process
• Easy to maintain

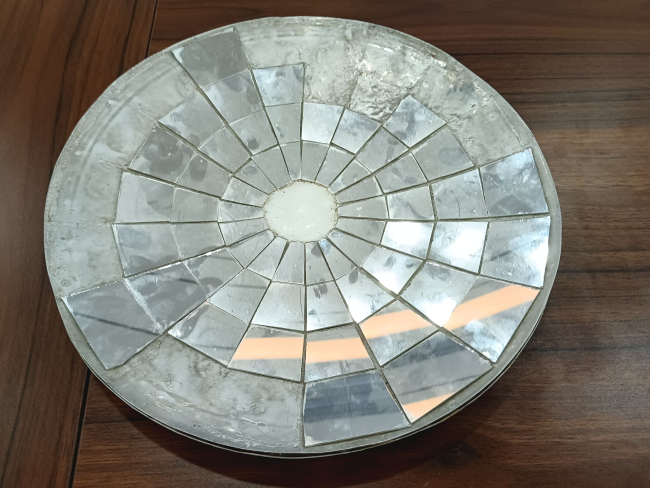

5. Aluminum honeycomb panel of more pictures:
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, was founded in 2009. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
7. Factory show
8. FAQ
Q1. What is aluminum honeycomb panel usd for?
A: Aluminum honeycomb panel which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding, building materials industry, furniture industry and so on.
Q2. What are the advantages of aluminum honeycomb panel?
A: Aluminum honeycomb panel has the advantages of light weight-high strength, environmental protection and no pollution, excellent surface flatness and smoothness, superior weather, corrosion, pollutant resistance, even coating, various colors.
.
Q3. What is the packaging method of aluminum honeycomb panel?
A: Aluminum honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
