Outdoor Metal Mobile Wire Spool Cart Cable Drum Reel

Price	Negotiatable
MOQ	1
Delivery Time	Negotiable
Brand	FONGKO
Place of Origin	China
Model Number	FKCAR-010

Product Details

Product Specification

Main reel's diameter	320mm	Place of Origin	China
Size	416320461mm	Gross weight	19KG
Packing size	480380500mm (wooden carton)	Model Number	FKCAR-010
Brand Name	FONGKO	Type	Testers &Tools
Price	Negotiatable	Product name	CABLE REEL CART
Minimum Order Quantity	1	Main reel's width	150mm
Net weight	9KG	Aixs's diameter	200mm
Application	FTTH FTTB FTTX Network

Product Description

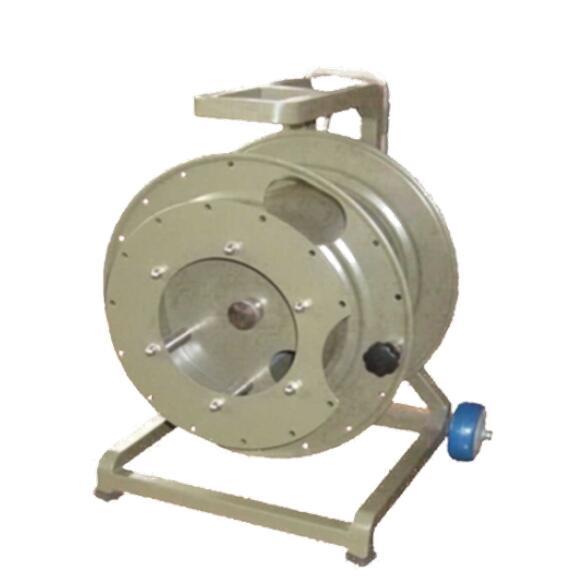

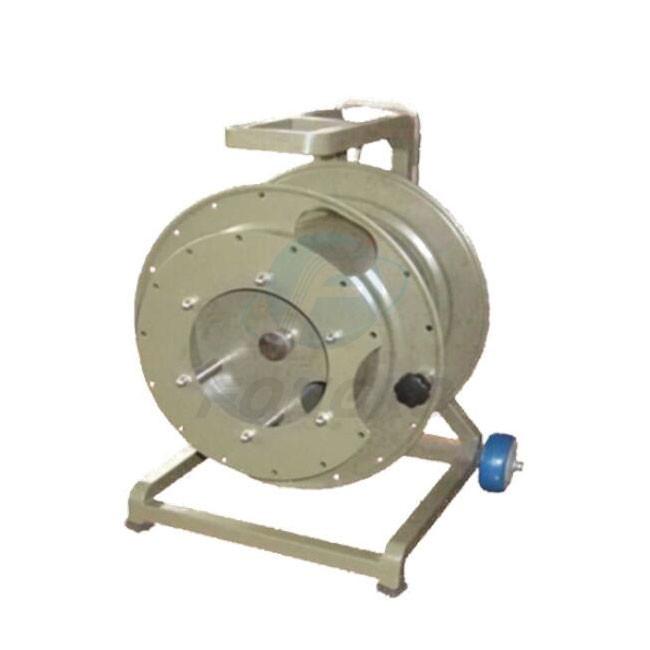

Fiber optic cable reel spool cart

Portable field deployable tactical fber optic cable reel has been optimised for using in harsh environments where mobility and rapid deployment of the cable are very essential. This assembly is specifically designed for field deployable applications. Particularly, it can broadcast the communication for film crews to connect HDTV camera equipments with central broadcasting trucks about events like music concerts and sporting events.

Features

Portable and durable cable reel

Rapid deployment and re-coiling of cable

Rated cable capacity of 1000m at 3.0mm cable OD 80M at 10.0mm Cable

Orientation pin design ensures fast blind connection

Adopt neutral connection technology without using adaptor

Exterior of receptacle is highly-intensified dielectric compound material
High tensile, high crush resistance and wide operating temperature cable

Application

Field communication and CATV, ·Quick deployment, quick distributing and retrieving of military field communication system

TV re-broadcasting and communication, ·Emergency repairing and supporting LAN cabling.

Cable deployment of radar, aviation and naval vessel
Complicated circumstances of oil field, mining and harbors

Cable's OD	3.0mm	4.0mm	5.0mm	6.0mm	7.0mm	8.0mm	9.0mm	10.0mm
Capacity	600M	330M	200M	150M	100M	80M	60M	50M
