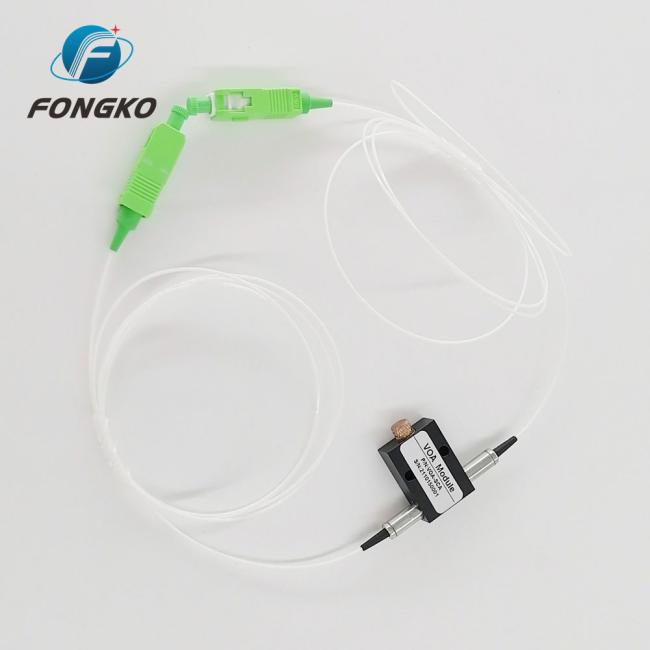

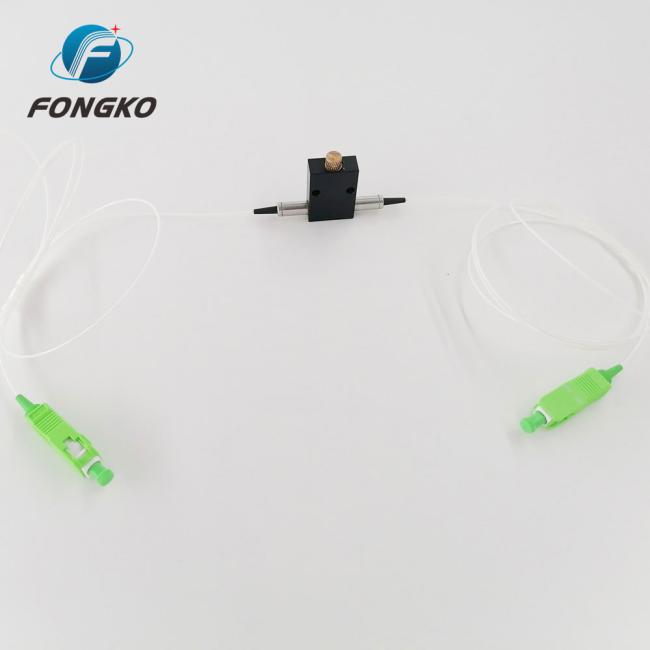

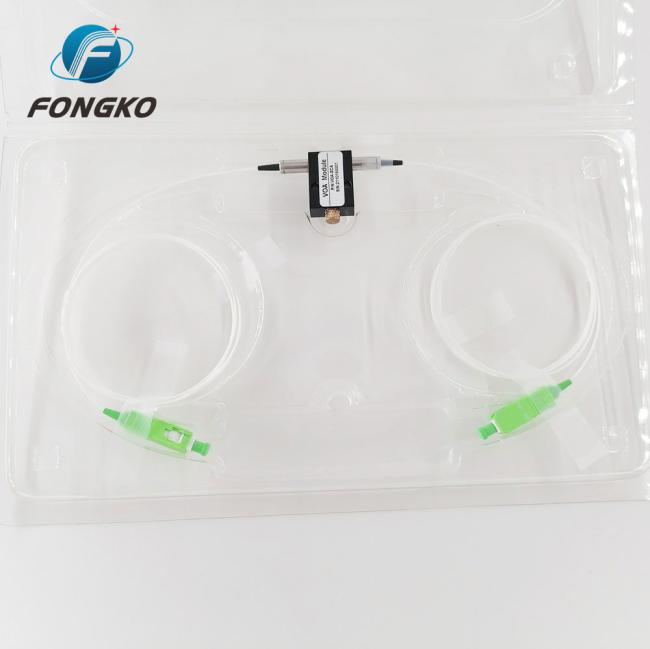

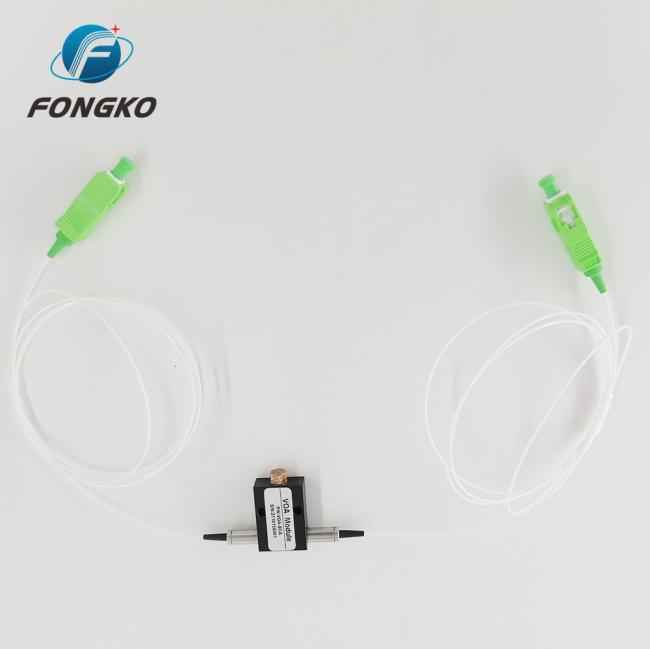

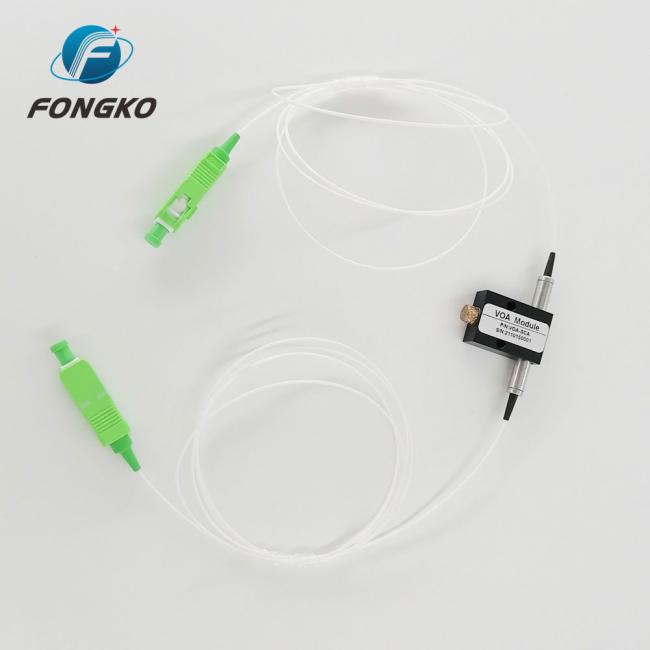

Variable 0~60dB SM SC APC In-Line Fiber Optic Attenuator VOA Module

Price	Negotiatable
MOQ	Negotiable
Delivery Time	Negotiable
Brand	FONGKO
Place of Origin	China
Model Number	FKATT-019

Product Details

Product Specification

Brand Name	FONGKO	Connector	SC/APC
Place of Origin	China	Price	Negotiatable
Product name	Fiber Optic VOA Attenuator	Use	FTTH
Color	Green	Model Number	FKATT-019
Wavelength	1310nm/ 1550nm	Operating temperature	-40~85

Product Description

Fiber Optic Attenuator

Fongko offers Fiber Attenuator include Variable Optical Attenuator, Inline Optical Attenuator, Fixed Optical Attenuator. LC Male to Female Fiber Optic Attenuator is used in applications where a pre-determined amount of light loss is specified.We offer LC,FC,SC,ST,MU fixed attenuator with different attenuation level, from 1dB to 30dB. We also can supply Fiber Pigtail, Fiber Patch Cord, Fiber Adapter, Fiber Splitter, Fiber Fast Connector, Fiber Termination Box, Fiber Patch Panel etc.

Feature

1.Low back reflection and Low PDL
2.High precision attenuation value
3.Precision control of attenuation range
4.Wide attenuation range
5.Precision ceramic ferrule
6.FC, SC, ST, LC … optional
7.Plastic or metal housing material

Applications

1. EDFA, DWDM, Long-haul
2. Wide-Area Networks
3. Telecommunication networks
4. Gigabit applications ( ATM,Ethernet )

Parameter	1310nm	1550nm	1310/1550 Dual window	850nm/1310nm
Wavelength (nm)	1310 ± 40	1550 ± 40	1310 ± 40 & 1550 ± 40	850 ± 40 &1310 ± 40
Attenuation range (dB)	0.6 ~ 60	0.6 ~ 60	0.8 ~ 60	0.8 ~ 40
Original loss (dB)	≤0.6	≤0.6	≤0.8	≤0.8
Adjustment Precision (dB)	0.02
Return loss (dB)	≥50			≥25
Fiber Type	SMF-28e			50/125 or 62.5/125
PDL (dB)	≤0.15
Operating& Storage temperature (℃)	-40 ~ +85
Cable Length	1M-2M
