MSDS ROHS Rechargeable Lifepo4 Battery Cell Pack 12V 24V 48V

Price	Negotiation
MOQ	Negotiation
Delivery Time	5-8 working days
Brand	BAIDUN
Place of Origin	China
Certification	CE、FC、MSDS、ROHS
Model Number	3.2V280K
Packaging Details	The box size is 370260240mm, using high-density foam, one box contains two batteries
Payment Terms	Credit card, T/T,PayPal
Supply Ability	≥50000 pieces/month

Product Details

Product Specification

Storage Humidity	<90%	Place of Origin	China
rated capacity	280K	Cycle life	6000times
Standard discharge time	2.0h	Max Charge Current	1C
Packaging Details	The box size is 370260240mm, using high-density foam, one box contains two batteries	weight	5.6KG
Battery Size	17220872mm	Model Number	3.2V280K
Supply Ability	≥50000 pieces/month	Certification	CE、FC、MSDS、ROHS
Brand Name	BAIDUN	Payment Terms	Credit card, T/T,PayPal
Price	Negotiation	Delivery Time	5-8 working days
AC Impedance Resistance	≤0.25mΩ	Minimum Order Quantity	Negotiation
Charging Temperature	0℃~55℃	nominal voltage	3.2V

Product Description

Rechargeable Lithium Lifepo4 Battery 3.2V 280K Lifepo4 Battery Cell For DIY 12V24V48V

Features of lifepo4 lithium battery:

1. Long life span, 4 times that of ordinary lead-acid batteries. If you want to upgrade from a lead-acid battery to a lithium battery, this is a good choice.

2. Safe to use. The lithium iron phosphate battery has undergone strict safety tests and will not explode even in a serious collision.

3. Large capacity, high temperature resistance, good performance, small size, light weight, environmentally friendly materials.

Lithium battery 3.2V 280AH General Technical Parameter

#	Item		Parameter	Remark
1	Nominal Capacity		304.0 Ah	(25±2) °C, Standard charge and discharge
2	Typical Voltage		3.2 V
3	AC Impedance Resistance( 1 KHz)		<0.25 mQ
4	Standard charge and discharge	Charge / discharge current	0.5 C/0.5 C	(25±2) °C
		Cut off voltage of charge / discharge	3.65 V/2.5 V
5	Maximum charge / discharge current	Continuous charge / discharge	1 C/1 C	According to continuous / pulse charge and discharge ammeters
		Pulse charge / discharge (30s)	2C/2C
6	Recommended scope of SOC		10% 〜90%	N.A.
7	Charging Temperature		0 °C〜55 °C	According to continuous / pulse charge and discharge ammeters
8	Discharging Temperature		-20 °C~55 °C

#	Item		Parameter	Remark
9	Storage temperature	Short term (within 1 month)	-20°C-45°C	N.A.
9	Storage temperature	Long term (within 1 year)	0°C 〜35°C
10	Storage humidity range		<95%
11	Self^discharge rate per month		<3%/month	Temperature: (25±2)°C, Storage scope of SOC: 30% 〜50%SOC

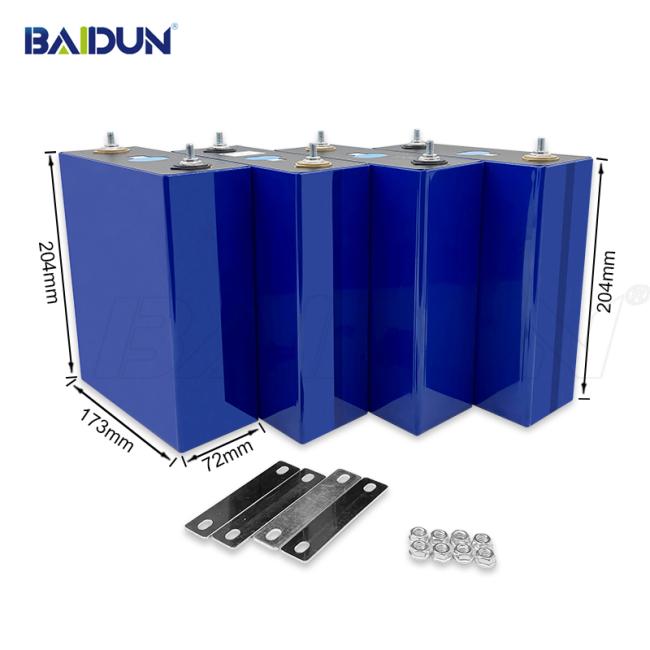

12	Dimension	Width	173.5 ±1 mm	Refer to Appendix I
13		Thickness (under 300+20 kgf, 30%〜40% SOC )	72.0 ±1.0 mm
13		Average thickness (200 pcs, under 300+20 kgf, 30%〜40% SOC )	72.0 ±0.5 mm
14		High (total)	208.8 ±1 mm
15		High (subject)	204.6 ±1 mm
16		Tabs Distance	123.0±0.3 mm
17	Battery weight		5.49±0.3 kg

Product Description

(1) We order batteries directly from the brand. Guarantee A grade, brand new, genuine, sufficient capacity, voltage, resistance, and data matching.

(2) There are three styles of battery terminals to choose from. They are: original terminals, punched terminals and soldered studs. Punch M6, stud M6. Generally, welding studs are easier to assemble.

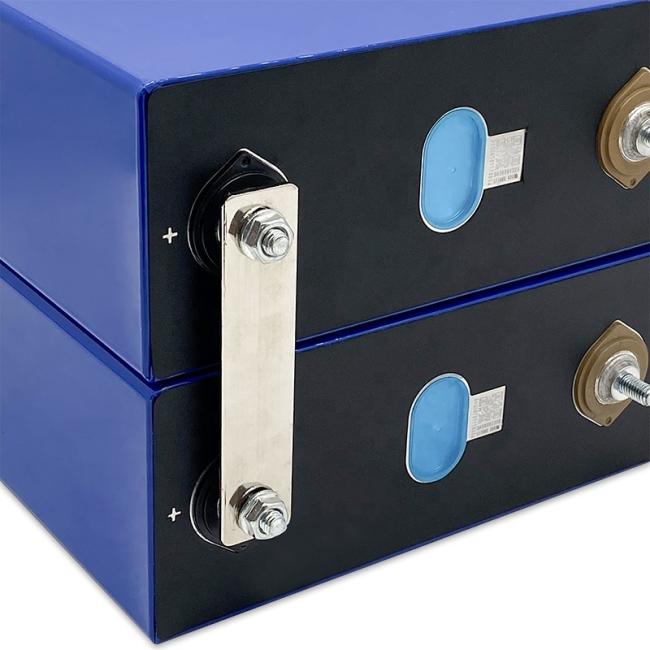

(3) A battery is equipped with a bus bar and two screws as standard. [Bus size: 90*20*2mm (copper nickel plated) screw size: M6]

(4) Lithium battery modules are connected in parallel or in series

(5) Warranty period: 3 years

Applications

Packing & Delivery

Logistics Transport

Company Profile

Shenzhen Baidun New Energy Co., Ltd. is a professional company focusing on environmental protection Lifepo4 batteries, integrating R&D, manufacturing and sales. Our company has two factories, located in Dongguan and Huizhou, Guangdong Province, and has 12 years of industry experience. Baidun Battery adheres to the business philosophy of integrity and professionalism, always taking high safety, high quality and environmental protection as its core values. It is committed to providing customers with overall power solutions. It is a pioneer and leader in the domestic new energy field. Its products include lithium iron phosphate. There are three series of batteries, lithium titanate batteries, and ternary lithium batteries. Product applications cover the three major areas of "power, consumption, and energy storage". It has a wide range of applications and diverse styles, and provides OEM/ODM services to meet the different needs of customers. High-quality batteries are truly cost-effective products, and the quality is absolutely guaranteed. We process in strict accordance with relevant industry standards and reach national quality control standards. We sell directly to you from the factory, so there is no middleman, only reasonable prices, fast delivery and comprehensive after-sales support.
We uphold integrity and professionalism, always take high safety, high quality and environmental protection as our core values, and assume social responsibility!
Bai Dun, always here! Is your truly successful business partner! Create a win-win situation with you and your company for a better future!

Baidun, we are customer-centric! Provide customers with the best quality service with excellent quality, competitive price, first-class craftsmanship, safe packaging and timely delivery! Honesty and professionalism, this is also our responsibility!

Customer first

24-hour online service to solve any order problems for you!
