Lightweight 6 Para Clinical Analytical Instruments Portable With Lifetime Maintenance

Price	US $220-388/unit
MOQ	1 unit
Delivery Time	Within 3 days
Brand	RAINBOW
Place of Origin	Hunan, China
Certification	ISO13485, FSC
Model Number	PM-9000 10inch
Packaging Details	Anti-collision film+ Carton box Carton box dimension: 321623cm Gross weight: 3.5kg
Payment Terms	T/T, Western Union, MoneyGram
Supply Ability	30000units/year

Product Details

Product Specification

Place of Origin	Hunan, China	Size	10 inch
Gross weight	3.5kg	Packaging Details	Anti-collision film+ Carton box Carton box dimension: 321623cm Gross weight: 3.5kg
Package size	321623cm	Model Number	PM-9000 10inch
Supply Ability	30000units/year	After-sale Service	Online technical support
Certification	ISO13485, FSC	Brand Name	RAINBOW
Payment Terms	T/T, Western Union, MoneyGram	Price	US $220-388/unit
Delivery Time	Within 3 days	Product name	Patient monitor
Minimum Order Quantity	1 unit	Application	adult, pediatric and neonatal patient

Product Description

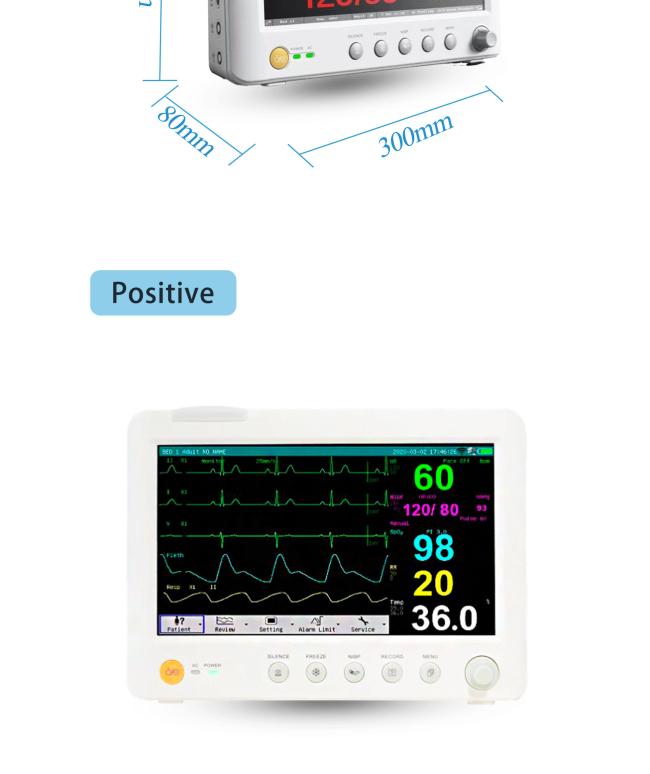

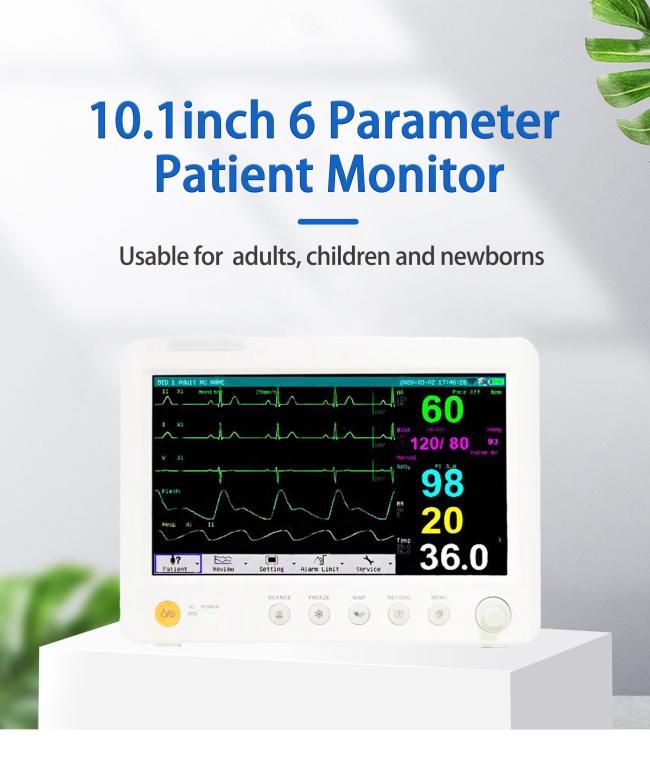

Lightweight clinical analytical instruments 6-para standard portable patient monitor with lifetime maintenance

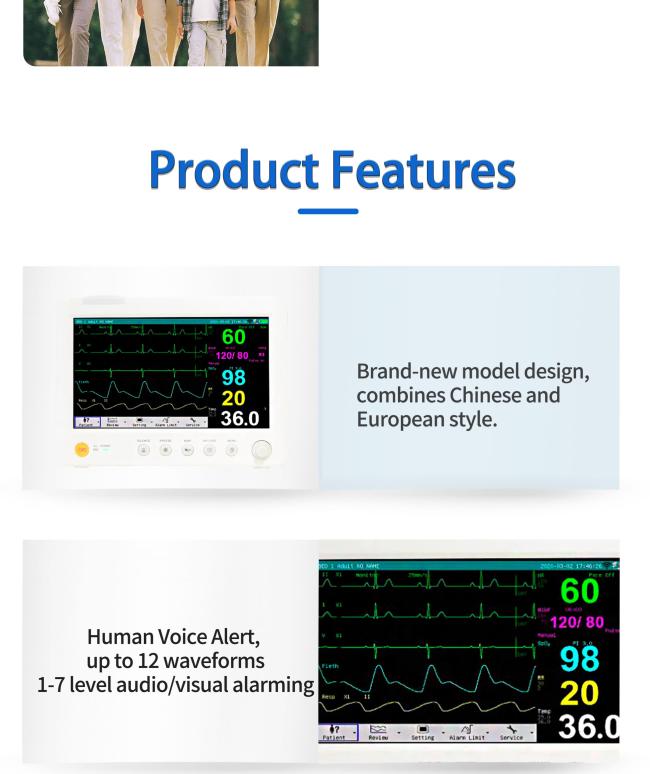

Features:

multi-parameter patient monitor 10.1" TFT high resolution color display,enables maximum data visibility for the most critical parameters;
Real-time ST analysis,pacemaker detection,arrhythmia analysis;
720 hours list trend recall,1000NIBP data storage,
200 alarm events storage,12 hours waveform review;

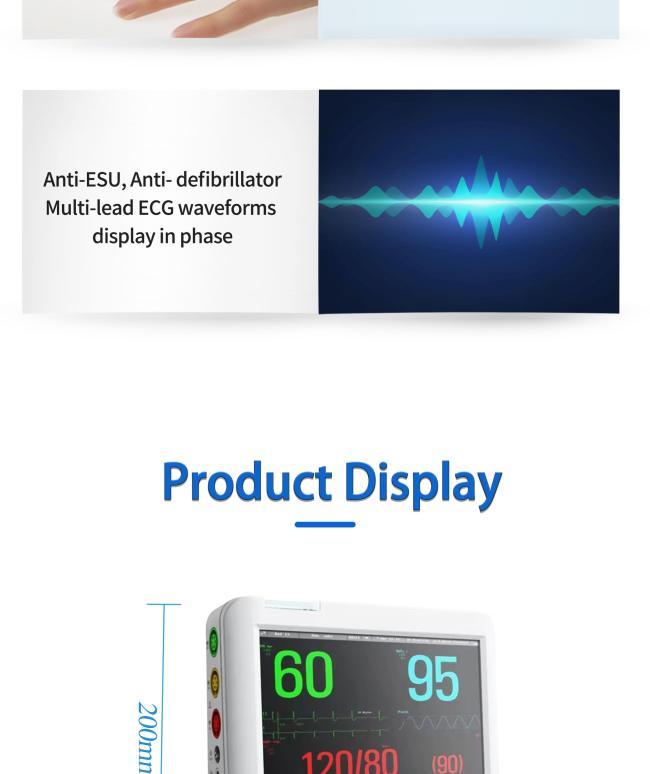

anti high-frequency ESU and defribrillation protection;
full alarm features including sound, light, message;
Voltage: 100~240V, 50~60Hz
Input current : 100VA
With lithium battery

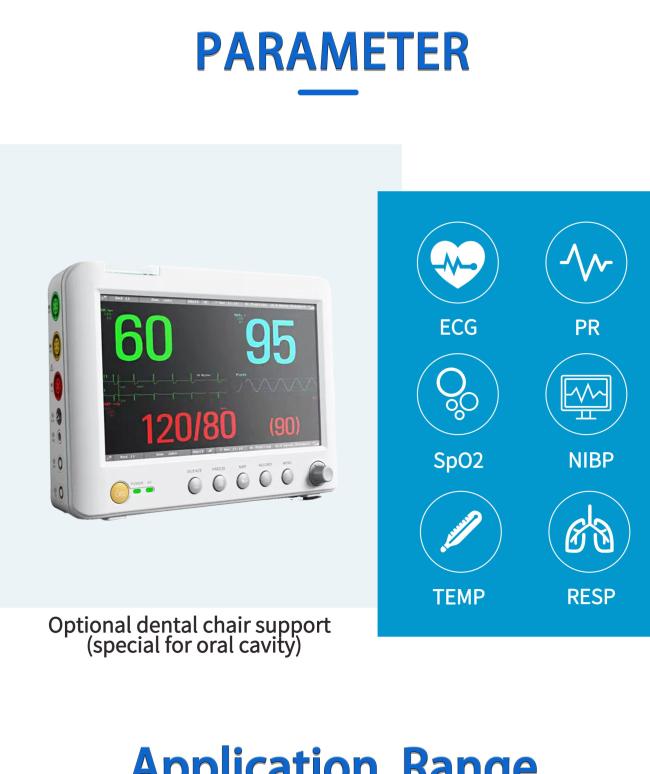

product parameters:

ECG:

Lead mode: 5 leads(R,L,F,N,C or RA,LA,LL,RL,V)

Lead selection : I,II,III,avR,avL,avF,V

Waveform: 3ch

Lead mode: 3 Leads(R,L,F or RA,LA,LL)

Lead selection: I,II,III

Waveform: 1ch

Gain selection: x2.5mm/mV,x5.0mm/mV,x10mm/mV,x20mm/mV,auto,deviation<±5%

Sweep speed: 6.25mm/s;12.5mm/s;25mm/s;50mm/s

Heart rate range: Adult: 15~300bpm; Neonate/pediatric:15~350bpm

Accuracy: +1bpm or +1%,whichecer is greater

Resolution: 1bpm

Sensitivity: >200(uV p-p)

ECG signal: 0.2~8mV

Different input impedance >5MΩ

Bandwidth: Surgery 1~15Hz, Monitor 0.5~35Hz, Diagnostic 0.05~100Hz

Common mode rejection ratio(CMRR)
CMRR: monitor >105dB, Operation >105dB, Diagnose >85dB

Electrode offset potential ±300mV

Pace pulse detection conditions:
Amplitude: 1 mV~10 mV, width 0.5ms~2ms, rise time: 10us~ 100us

Baseline recovery time < 3 S after Defi.

SPO2

Measurement range: 0~100%

Resolution: 1%

Accuracy: +2%(70-100%);0-69% unspecified

Alarm range 0~100%

Pluse Rate:

range: 20~300bpm

Resolution: 1bpm

Error: +3bpm

NIBP

Method: oscillometric

Operation mode : Manual/Automatic/STAT

Auto measurement time: Adjustable(1~480min)

Measurement Unit: mmHg/Kpa selectable

Measurement types: Systolic, Diastolic, Mean

Measurement range:

Range of Systolic pressure:

Adult: 40~270mmHg

Pediatric: 40~220mmHg

Neonate: 25~140mmHg

Range of mean pressure:

Adult: 20~235mmHg

Pediatric: 20~165mmHg

Neonate: 20~125mmHg

Range of diastolic pressure:

Adult: 10~215mmHg

Pediatric: 10~150mmHg

Neonate :10~115mmHg

RESPIRATION

Method: RA-LL,RA-LA

Measure inpedance range: 0.3~3.0Ω

Baseline impedance range: 200-4000Ω

Measurement range: Adult:0~120Brpm; Neonate/Pediatric:0~150Brpm

Apnea alarm: YES,10~40s

Resolution: 1rpm

Accuracy: +2rpm

TEMPERATURE

Compatible probe: YSI or CYF

Measurement range: 5~50℃

Resolution : 0.1℃

Accuracy: +0.1℃

Refreshing time: about 1

Average measuring time: <10s

Packaging & Shipping

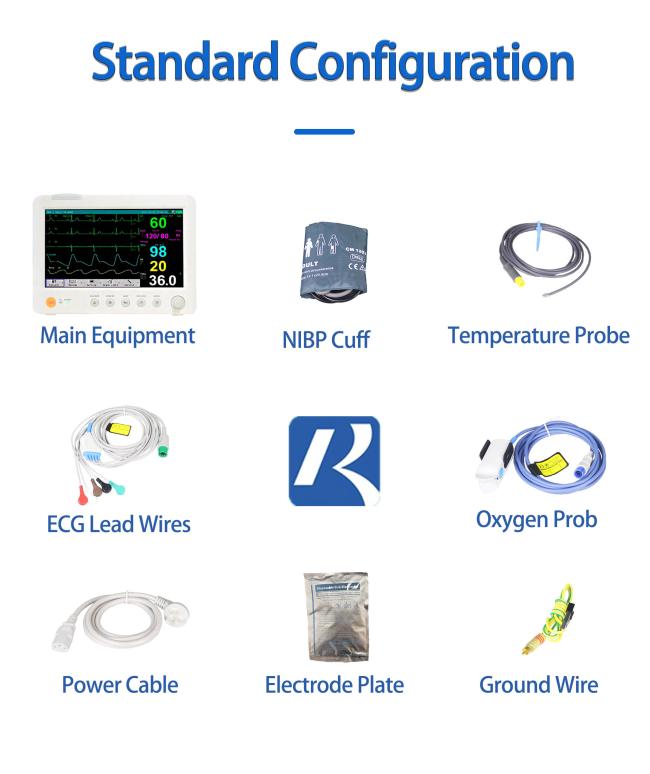

Standard Configration:

Item	Description	Quantity
1	Power line (transformer)	1
2	Cardiac conduction line	1
3	Blood oxygen probe line	1
4	Temperature probe wire	1
5	Noninvasive blood pressure cuff(Adult)	1
6	NIBP tube	1
7	ECG electrode	1

FAQ




                1.
                who
                are
                we?


                We
                are
                based
                in
                Hunan,
                China,
                start
                from
                1997,sell
                to
                Domestic
                Market(50.00%),Southeast
                Asia(15.00%),Africa(10.00%),Central
                America(10.00%),Mid
                East(8.00%),South
                Asia(7.00%).
                There
                are
                total
                about
                11-50
                people
                in
                our
                office.






                2.
                how
                can
                we
                guarantee
                quality?


                Always
                a
                pre-production
                sample
                before
                mass
                production;


                Always
                final
                Inspection
                before
                shipment;






                3.
                what
                can
                you
                buy
                from
                us?


                Multi
                parameter
                Patient
                Monitor,ECG
                Machine,Infusion
                Pump,Syringe
                Pump,Nutritional
                Pump






                4.
                why
                should
                you
                buy
                from
                us
                not
                from
                other
                suppliers?


                Hunan
                Rainbow
                Technology
                Co,Ltd
                is
                a
                professional
                manufacturer
                and
                wholesaler
                in
                monitor
                with
                19-year
                experience.
                In
                order
                to
                meets
                the
                marketing
                demand,
                our
                company
                cooperate
                with
                the
                America
                RMS
                Company
                to
                release
                a
                serials
                of
                PM-9000
                parameters
                monitor.






                5.
                what
                services
                can
                we
                provide?


                Accepted
                Delivery
                Terms:
                FOB,EXW,Express
                Delivery；


                Accepted
                Payment
                Currency:USD,CNY;


                Accepted
                Payment
                Type:
                T/T;


                Language
                Spoken:English,Chinese
