40 Ton Tool Transportation Within The Factory Transport Vehicle

Price Negotiable
MOQ 1
Delivery Time 30-45 work days
Brand Remarkable
Place of Origin Henan, China
Certification CE, ISO
Model Number RWP
Packaging Details 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 600

Product Details

Product Specification

Load 40 tons Place of Origin Henan, China
Traveling speed(m/min) 0-20 (Stepless speed regulation) Packaging Details 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.
Move Way Forward, backward, turning while driving with no stop Power supply Maintenance free battery
Model Number RWP Supply Ability 600
Certification CE, ISO Brand Name Remarkable
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram other name Transport Vehicle
Price Negotiable Delivery Time 30-45 work days
Minimum Order Quantity 1 Battery charger function Automatic charging
Operation method Wireless remote control & Hand operate pendant Brake mode Electromagnetic brake

Product Description

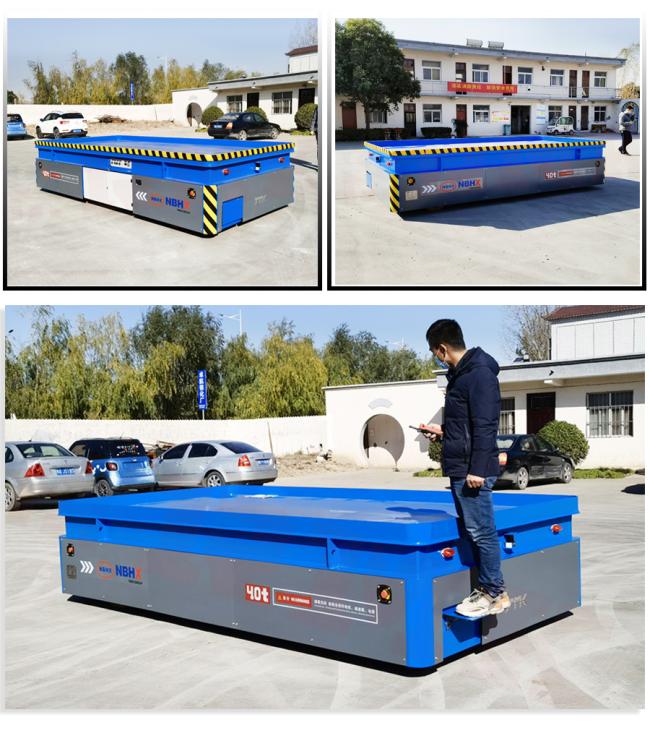

40 Ton tool transportation within the factory Transport Vehicle

Electric trucks are common electric flatbeds in our daily lives. Others call it flatbeds and electric locomotives. Simply put, electric vehicles have many names, with different names in different areas.

A level car is actually a means of rail. Many factories can see this transport vehicle. It can be said that electric flat cars are very suitable for transportation tools in many factories, bringing many benefits to the development of enterprises.



Level trucks can not only be used in factories, but also can often transport goods from factory to factory. In this way, the electric flat car is actually a means of transport.

In fact, electric flatbed trucks not only have a transportation function, but also have a relatively simple structure, which is very convenient to use, and it is easy for people without work experience to learn. Not only that, electric flatbeds also have the characteristics of load capacity, long life, convenient maintenance, etc., which is also very important for enterprises, which is also one of the main reasons why many companies choose electric flatbeds as their own enterprises to choose transportation tools.

For enterprises, electric flat cars are economical and practical, clean and convenient, and have made great contributions to enterprises.

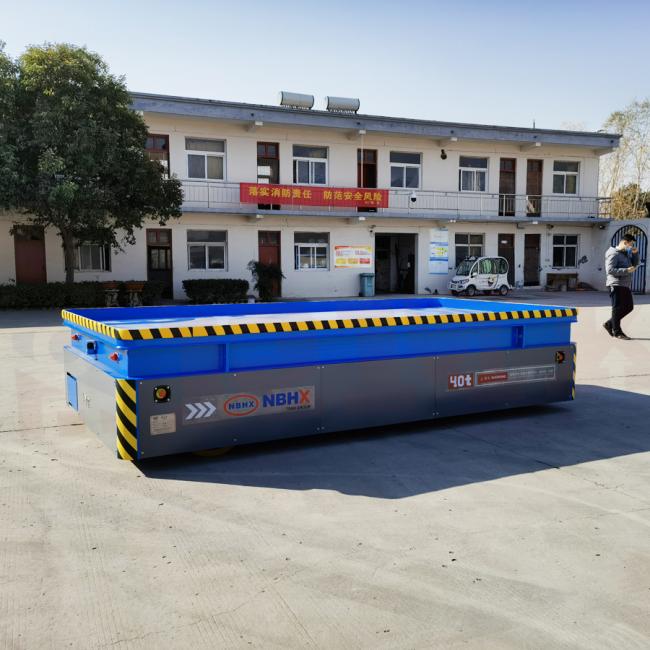

40 Ton tool transportation within the factory Transport Vehicle



This battery powered flat electric transfer cart is usually used at ship yard, plant and factory, certain production line. The coil handling battery cart could get power from outside or from the battery. The battery powered flat electric transfer cart was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. The battery powered flat electric transfer cart construction is based on our world renowned die coil handling battery powered flat electric transfer cart and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our The battery powered flat electric transfer cartis available in a number of configurations specifically designed to suit the needs of our customers.

Our Advantages:

Load capacity,table size and rail gauge can be customized on request.

Power supply mode: Battery powered,cable powered,low voltage rail powered,busbar powered.

Options: Warning light,radar detector,remote controller, electrical parts.

Run on rail or floor.

1 years warranty.

Technical parameters for electric transfer carts
1 rated load(t) 5 10 15 20 30 40 50 150
2 impacted rated load(t) 7.5 15 22.5 30 45 60 75 225
3 structure of frame steel plates welded, beam structure
4 max. wheel load(t) 2.8 4.3 4.8 5.6 7.7 10 12 27
5 ground requirement cement floor steel plate ground
6 table size(mm) 3000×2000 3600×2000 4000×2200 4500×2200 5000×2200 5500×2300

6000×

2300

10000×

3000

7 height of the whole cart(mm) 450 530 600 600 650 700 700 1200
8 ground clearance(mm) 50 75
9 wheels base(mm) 1500 1700 1800 2000
10 axles distance(mm) 2500 3100 3400 3900 4300 4800 5200 10000
11 turning radius(mm) 2501 3101 3401 3901 4301 4801 5201 10001
12 turning type turning while driving with no stop
13 control method for turning control button
14 turning structure mechanical
15 motor power(Kw) 3.5 5 6 7 10 12 15 15
16 wheel diameter(mm) Ф300 x 4 Ф350 x 4 Ф400 x 4 Ф400 x 6 Ф500 x 6 Ф600 x 8
21 battery model D-250 x 24 D-33 x 24 D-400 x 24 D-440 x 24 D-250 x 36 D-330 x 36 D-440 x 36 D-600 x 36
22 battery maintenance free of maintenance
23 charger's installation installed on cart split-type
24 charger function automatic charging
25 radar control 3-0.3m, automatic stop for obstacles
26 warning equipment sound and light
27 other functions turning light, night light and power display
