| Price | Negotiable |
| MOQ | 1 |
| Delivery Time | 30-45 work days |
| Brand | Remarkable |
| Place of Origin | Henan, China |
| Certification | CE, ISO |
| Model Number | RWP |
| Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 600 |
| Load | 10 tons | Place of Origin | Henan, China |
| Traveling speed（m/min） | 0-30 (Stepless speed regulation) | Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Move Way | Forward, backward, turning while driving with no stop | Power supply | Maintenance free battery |
| Model Number | RWP | Supply Ability | 600 |
| Certification | CE, ISO | Brand Name | Remarkable |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | other name | rubber wheel industrial trackless transfer cart |
| Price | Negotiable | Delivery Time | 30-45 work days |
| application area | Material transportation | Minimum Order Quantity | 1 |
| Operation method | Wireless remote control & Hand operate pendant | Brake mode | Electromagnetic brake |
25
t
Motorized
Steerable
Transfer
Trolley
trackless
cart
on
cement
floor
Trackless transfer car usually powered by Battery, which is an Environment-friendly product;The freedom of the route, the unlimited travel distance, and the saving of track laying costs;
Stable, Flexible, Efficient: turn left, turn right, and rotate 360°in place;
Safe and convenient operation is available, wired connection and wireless control, you can also assemble a PLC system for fully automated operation;
it is equipment with Intelligent Charging system and the working time can be customized by your needs.
AS for the safety device,you can choose laser obstacle and ultrasonic obstacle avoidance. they will intelligently stop running when sence a object at a distance.
The common trackless transfer carts go straight on the ground, which is more difficult Itrequires constant control by the remote control, and the operation is complicated.However, our newly developed function can make the electric transfer carts walk completely straight on the ground
Main Advantage:
1. Go straight on common ground by a special device
2. Easy Operation, one button can control.(Common steerable transfer cart need to press two buttons and ceaselessly adjust the direction.
3. Small turning radius compared other design. Small space all can realize turning with 360 degree.
4. Save Cost. This design greatly reduces costs and is more convenient

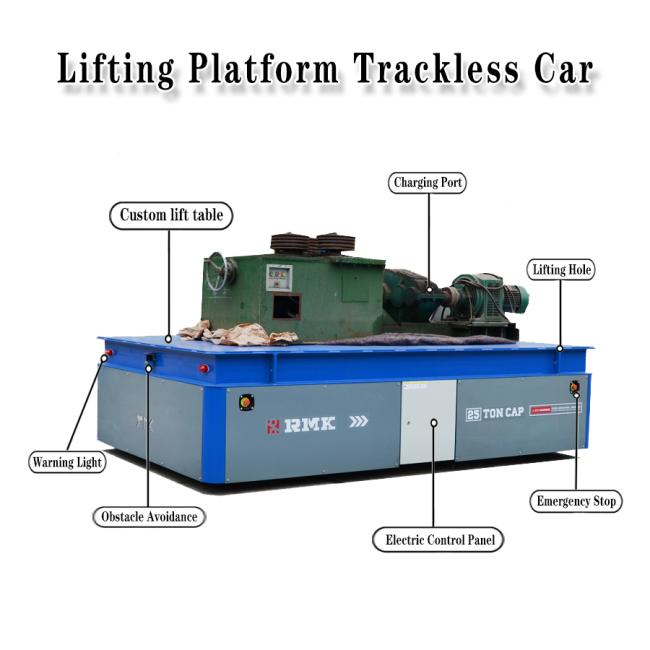

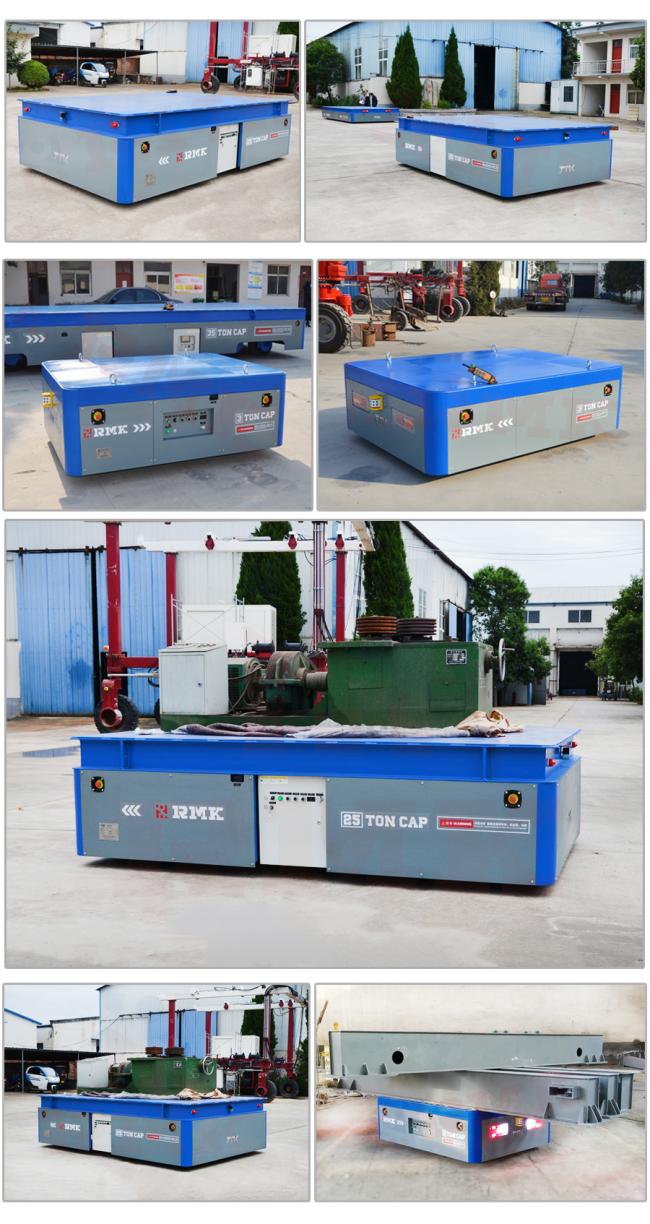

25 t Motorized Steerable Transfer Trolley trackless cart on cement floor
The 15t to 25t load capacity trackless cart on cement floor gains power from storage battery of 24v, 36v, 48v and 72v. Then the DC motor drives the trackless cart to start, stop, go forward and backward and adjust its speed. Trackless coil cart with a “v” support is specialized to transfer heavy cargoes of all kind of cargoes. The wheels is specially designed to avoid destruction to the ground.
>> Features:
◆ Patent product
◆ Move on cement floor
◆ Able to turn 360 degree
◆ Battery power
>> Characters
◆ DC motor
◆ Girder structure of box beam
◆ Wheel material : Polyurethane wheel
◆ Flexible braking function
◆ Adjustable speed
| Technical parameters for electric transfer carts | |||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure | |||||||
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground | ||||||
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 |
6000× 2300 |
10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 | ||||||
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop | |||||||
| 13 | control method for turning | control button | |||||||
| 14 | turning structure | mechanical | |||||||
| 15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
| 21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| 22 | battery maintenance | free of maintenance | |||||||
| 23 | charger's installation | installed on cart | split-type | ||||||
| 24 | charger function | automatic charging | |||||||
| 25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
| 26 | warning equipment | sound and light | |||||||
| 27 | other functions | turning light, night light and power display | |||||||
