| Price | Negotiable |
| MOQ | 1 |
| Delivery Time | 30-45 work days |
| Brand | Remarkable |
| Place of Origin | Henan, China |
| Certification | CE, ISO |
| Model Number | RWP |
| Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 600 |
| Load | 25 tons | Place of Origin | Henan, China |
| Traveling speed（m/min） | 0-20 (Stepless speed regulation) | Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Move Way | Forward, backward, turning while driving with no stop | Power supply | Maintenance free battery |
| Model Number | RWP | Supply Ability | 600 |
| Certification | CE, ISO | Brand Name | Remarkable |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | other name | battery transfer carriage |
| Price | Negotiable | Delivery Time | 30-45 work days |
| Minimum Order Quantity | 1 | Battery charger function | Automatic charging |
| Operation method | Wireless remote control & Hand operate pendant | Brake mode | Electromagnetic brake |
40T Steerable Die Transfer Cart Rubber wheel battery transfer carriage
25 t electric flat carriage is powered by lithium battery. The battery is installed in the steerable trolley and we also equip intelligent charger for it. The 20 t electric flat carriage is controlled to go forward, backward, turn left, turn right, adjust speed through PLC and speed controller.
Description of 25 t electric flat carriage
The
Description
of
25 t
electric
flat
carriage
is
composed
of
motor,
reducer,
electric
appliance
and
wheels.
Due
to
more
parts,
compared
with
other
carts,
it
has
large
size.
But
it
travels
flexibly.
The
driving
wheel
and
load
wheel
of
trackless
car
is
high
strength
PU
wheel.
It
is
wear-resistance,
and
has
low
maintain
cost.
The
functions
of
the
Description
of
20
t
electric
flat
carriageincluding
360
degree
turning,
go
forward
and
backward,turn
left
and
right,
adjust
speed
button,
indicator
light,
electric
indicator
light
and
other
control
buttons.
It
has
operating
platform
and
can
make
the
operator
stand
on
the
carriage
to
operate.
This kind of Application of 25 t electric flat carriage is commonly applied in factory workshop or warehouse to transfer materials, such as injection mold, steel coil, machine parts.aluminium coil etc.

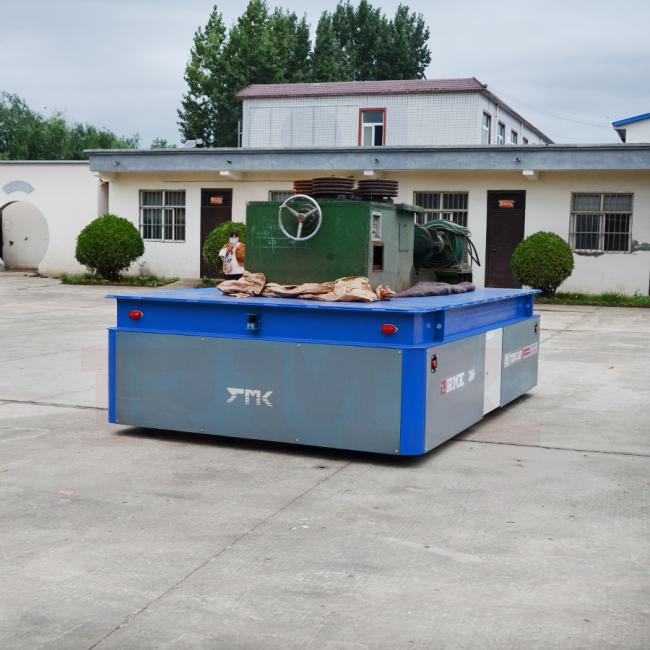

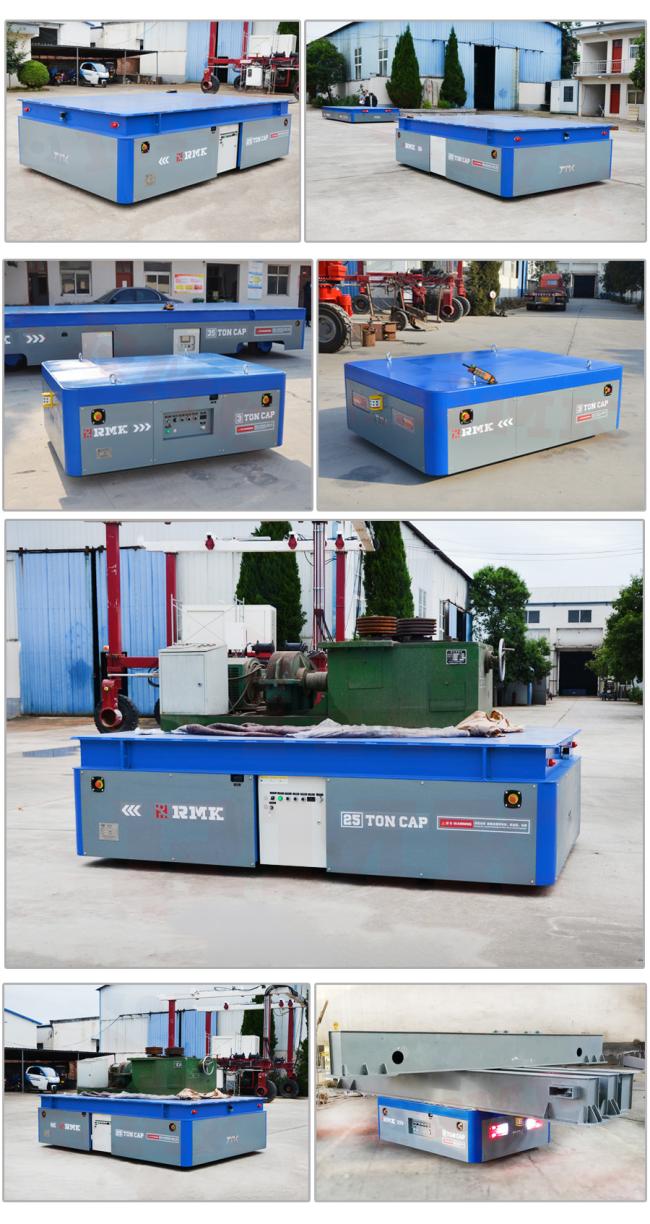

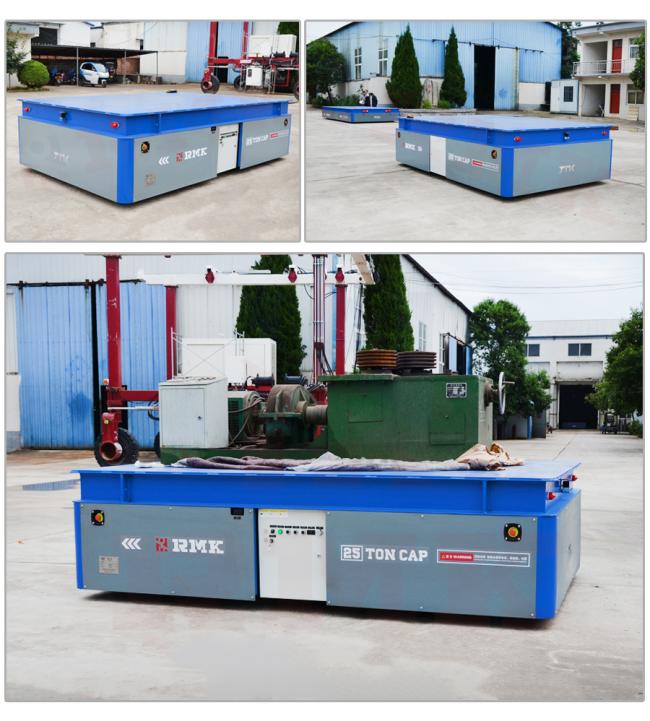

25T workshop and warehouse trackless carriage with operation platform
| Technical parameters for electric transfer carts | |||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure | |||||||
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground | ||||||
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 |
6000× 2300 |
10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 | ||||||
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop | |||||||
| 13 | control method for turning | control button | |||||||
| 14 | turning structure | mechanical | |||||||
| 15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
| 21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| 22 | battery maintenance | free of maintenance | |||||||
| 23 | charger's installation | installed on cart | split-type | ||||||
| 24 | charger function | automatic charging | |||||||
| 25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
| 26 | warning equipment | sound and light | |||||||
| 27 | other functions | turning light, night light and power display | |||||||
Application of injection transfer cart
This kind of mold injection transfer cart is commonly applied in factory or warehouse to transfer heavy materials, such as steel workpiecs, machine parts, etc.
