Plant Steel Electric Transfer Cart , 10 Tons Heavy Duty Transport Trolley

Price	Negotiable
MOQ	1
Delivery Time	30-45 work days
Brand	Remarkable
Place of Origin	Henan, China
Certification	CE, ISO
Model Number	RWP
Packaging Details	1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	600

Product Details

Product Specification

Load	10 tons	Place of Origin	Henan, China
Traveling speed（m/min）	0-20 (Stepless speed regulation)	Packaging Details	1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.
Move Way	Forward, backward, turning while driving with no stop	Power supply	Maintenance free battery
Model Number	RWP	Supply Ability	600
Certification	CE, ISO	Brand Name	Remarkable
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram	other name	Weight Printing Transfer Trolley
Price	Negotiable	Delivery Time	30-45 work days
Minimum Order Quantity	1	Battery charger function	Automatic charging
Operation method	Wireless remote control & Hand operate pendant	Brake mode	Electromagnetic brake

Product Description

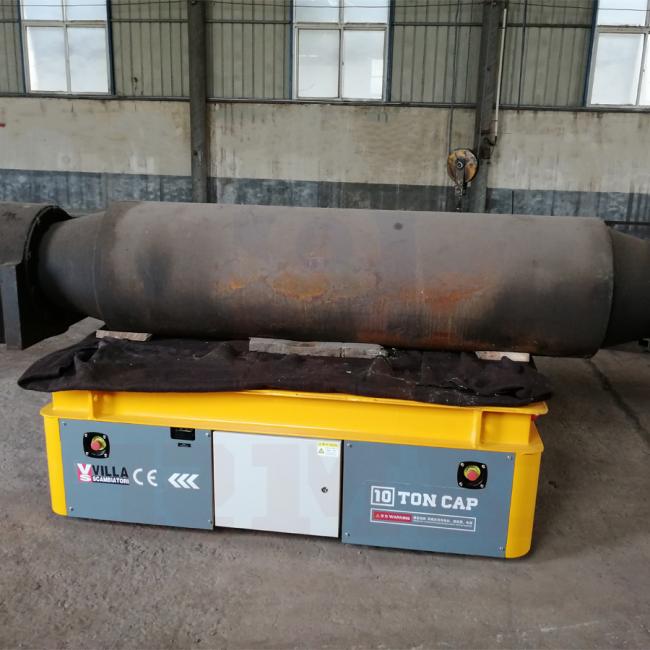

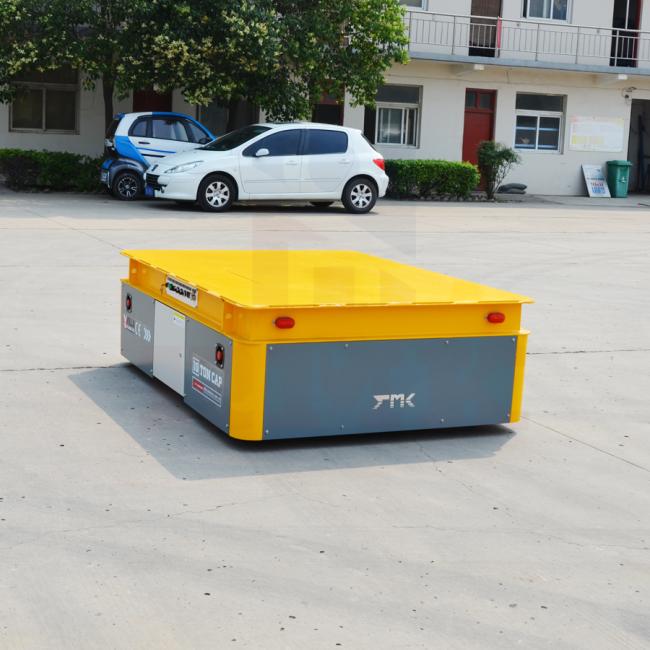

Plant Steel Electric Transfer Cart , 10 Tons Heavy Duty Transport Trolley

^{Our
company
according
to
the
user's
requirements,
after
the
design
of
engineers,
a
multi-functional
metering
transfer
car
(weighing
dolly
car,
weighing
carriage,
weighing
tranport
platform,
weight
printing
transfer
trolley,
rail
weighing
flat
car)
research
and
development
success!
The
characteristics
of
this
electric
car
are:
in
addition
to
the
conventional
electric
transoprt
car
to
transport
goods,
it
also
focuses
on
the
measurement,
weighing,
printing
and
other
functions
of
the
transported
goods.
The
whole
car
has:
frame,
wheel,
reducer,
motor,
control
system,
instrument,
weighing
sensor,
printer,
weighing
platform
and
other
equipment.
It
has
compact
structure,
centralized
functions,
simple
operation,
stable
operation,
low
cost,
low
cost,
high
efficiency,
low
cost.
Greatly
improve
the
efficiency
of
production
and
increase
the
production
space.
So
far,
the
design
and
R&D
Department
of
our
company
has
stepped
into
a
new
stage
in
the
field
of
multi-functional
transfer
cars,
which
has
laid
a
foundation
for
the
future
development
of
the
company.
At
the
same
time,
it
has
inspired
the
fighting
spirit
of
our
young
designers,
effectively
improved
the
R&D
strength
of
the
company's
non-standard
electric
flat
cars,
and
the
combat
effectiveness
of
the
company's
R&D
team.}

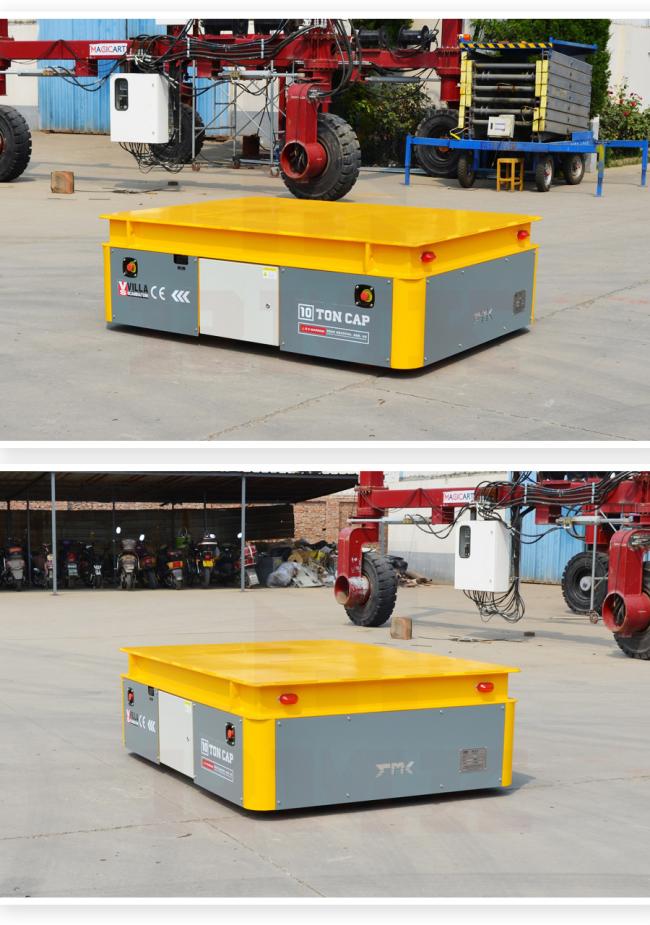

Plant Steel Electric Transfer Cart , 10 Tons Heavy Duty Transport Trolley

Technical parameters for electric transfer carts
1	rated load(t)	5	10	15	20	30	40	50	150
2	impacted rated load(t)	7.5	15	22.5	30	45	60	75	225
3	structure of frame	steel plates welded, beam structure
4	max. wheel load(t)	2.8	4.3	4.8	5.6	7.7	10	12	27
5	ground requirement	cement floor					steel plate ground
5	ground requirement	cement floor					steel plate ground
6	table size(mm)	3000×2000	3600×2000	4000×2200	4500×2200	5000×2200	5500×2300	6000× 2300	10000× 3000
7	height of the whole cart(mm)	450	530	600	600	650	700	700	1200
8	ground clearance(mm)	50							75
9	wheels base(mm)	1500		1700			1800		2000
10	axles distance(mm)	2500	3100	3400	3900	4300	4800	5200	10000
11	turning radius(mm)	2501	3101	3401	3901	4301	4801	5201	10001
12	turning type	turning while driving with no stop
13	control method for turning	control button
14	turning structure	mechanical
15	motor power(Kw)	3.5	5	6	7	10	12	15	15
16	wheel diameter(mm)	Ф300 x 4	Ф350 x 4		Ф400 x 4	Ф400 x 6	Ф500 x 6		Ф600 x 8
21	battery model	D-250 x 24	D-33 x 24	D-400 x 24	D-440 x 24	D-250 x 36	D-330 x 36	D-440 x 36	D-600 x 36
22	battery maintenance	free of maintenance
23	charger's installation	installed on cart				split-type
24	charger function	automatic charging
25	radar control	3-0.3m, automatic stop for obstacles
26	warning equipment	sound and light
27	other functions	turning light, night light and power display

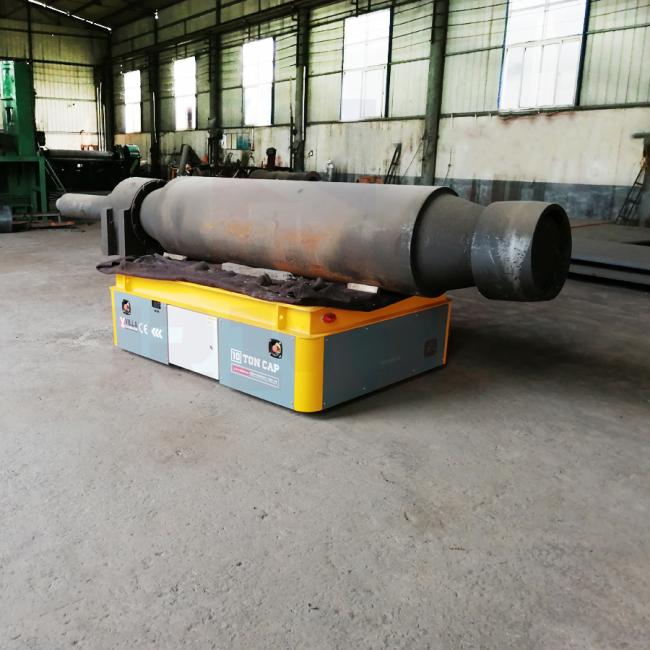

Plant Steel Electric Transfer Cart , 10 Tons Heavy Duty Transport Trolley
