| Price | Price negotiation |
| MOQ | 1set |
| Delivery Time | 40-45 work days |
| Brand | Remarkable |
| Place of Origin | Henan China |
| Certification | CE SGS ISO |
| Model Number | RGV |
| Packaging Details | 1.Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 560/years |
| Place of Origin | Henan China | Operation Type | Remote Control+Hand Pendant+Computer programming |
| Packaging Details | 1.Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. | Product Name | Rail Automatic Transfer Cart |
| Power supply | Battery /Rail/Cable/AC+DC motor/motorized | Material | Q235Steel / Q345 Steel |
| Model Number | RGV | Supply Ability | 560/years |
| Certification | CE SGS ISO | Brand Name | Remarkable |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Load capacity | 1-1000 tons/Customized |
| Table style | Roll/U-shape/V-shape/Hydraulic lifting/Customized | Price | Price negotiation |
| Delivery Time | 40-45 work days | Minimum Order Quantity | 1set |
| safety feature | Automatic obstacle avoidance, warning alarm, end stop | Environment | Heat, Explosive |

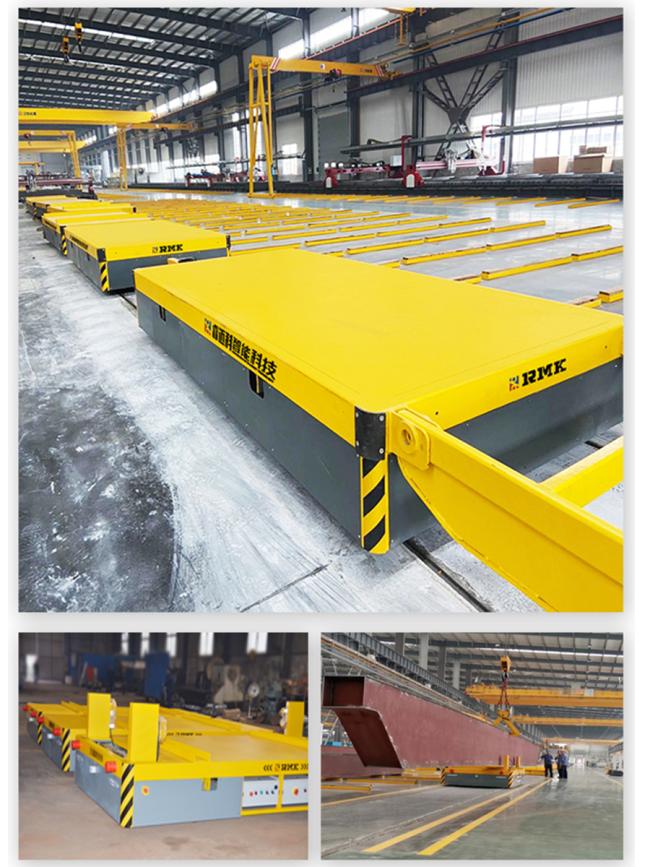

RGV rail shuttle cart, also known as RGV rail automatic transfer cart, RGV rail collector trolley, or RGV rail automation truck, is a rail running vehicle used in factories. Being widely used in logistics systems, it has characteristics of fast speed, high reliability and low cost. According to different functions, RGV can be divided into assembling RGV system and transportation RGV system, mainly used for material transportation, workshop assembly, etc. According to the movement mode, it can be divided into circular track type and linear reciprocating type. The circular track type RGV system has high efficiency and can work with multiple cars at the same time. Generally, aluminum alloy tracks are used, and the cost is high. Linear reciprocating type generally includes one RGV system. RGV uses reciprocating motion, generally uses steel rails as the track, the cost is lower, and the efficiency is lower than that of the circular RGV system. The RGV system can be used as the peripheral equipment of the three-dimensional warehouse, or it can be its own independent system.
| Technical parameters for rail transfer carts | ||||||||||
| Model | KPG-6t | KPG-10t | KPG-16t | KPG-25t | KPG-40t | KPG-63t | KPG-100t | KPG-160t | KPG-200t | |
| Rated load (t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | |
| Countertop size(mm) | Length | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 | 8200 |
| Width | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 | 3000 | |
| Height | 550 | 550 | 600 | 650 | 700 | 850 | 900 | 1100 | 1250 | |
| Speed(m/min) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | 20 | 18 | |
| Wheel base A(mm) | 2000 | 2200 | 2200 | 2500 | 2800 | 3200 | 3600 | 5000 | 5000 | |
| Track medial distance C(mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1650 | 2000 | 2000 | |
| Wheel diameter(mm) | 400 | 400 | 400 | 500 | 500 | 600 | 700 | 700 | 700 | |
| Bottom clearance(mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | |
| Minimum turning radius | 30 | 35 | 50 | 55 | 60 | 80 | 100 | 100 | ||
| Power mode | Battery/low-voltage rail/ Cable Drum/cable reels/Dragged Cable / busbar powered | |||||||||
| Recommended track model | 24kg/m | 38kg/m | 43kg/m | QU80 | QU100 | |||||
| Number of wheels | 4 | 8 | ||||||||
| Maximum wheel Pressure (t) | 1.91 | 3.21 | 4.87 | 7.5 | 11.5 | 16.9 | 27.6 | 22.8 | 28.5 | |
| Reference weight (t) | 3.4 | 3.72 | 4.2 | 6 | 8.5 | 11.4 | 15.2 | 25.5 | 31.5 | |
|
Note:
1)
Other
gauges,
table
sizes
and
load
tonnages
can
be
customized
according
to
user
requirements; 2) Imported and domestic industrial wireless remote-control devices are optional; 3) Optional imported wireless two-speed control; 4) Optional matching automatic parking, and alarming when encountering person 2 meters away. |
||||||||||
RGV rail automatic transfer cart can run on straight or circular tracks with a maximum travel speed of 200m/min. It communicates with a host computer or WMS system, and combines RFID, bar code and other identification technologies to achieve automatic identification, access and other functions. RGV rail shuttles generally use batteries, rail-powered and sliding contact-line power, depending on the distance traveled by the vehicle. Bar code positioning or laser positioning, running on preset guide rails, is used to connect multiple logistics nodes, and has the characteristics of fast, flexible, simple configuration and easy maintenance. The encoder can be docked at multiple points, and the error is small. It is the main product for workshop automatic assembly line.
Advantages of Battery Operated Industrial Rail Trolley
RGV rail automatic transfer cart is a transportation tool that travels along steel rails and can make reciprocating motion.
1. Because it is traveling on the rails, it accelerates and moves extremely fast, which is suitable for handling large workpieces.
2. Because the guide rail is fixed and the walking is stable, the positioning is accurate.
3. The control system is simple, easy to operate and maintain, and easy to promote and apply.
4. Adapt to automobile assembly line, warehousing and logistics industries.
5. High working efficiency, greatly reducing operation time.
6. The running speed can reach 200 meters per minute, and the control mode is manual and automatic.
7. Good safety, reduce rack collision and improve safety productivity.
8. Flexible operation methods, remote control operation, high efficiency of incoming and outgoing.
9. Access to goods can be FIFO (fist-in first-out) and FILO (fist-in last-out).
| Our Related Product | |||||
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer vehicle | KPG | Conductor Rail/Battery | Load range 1-500ton, can be customized per client demand | Running distance |
Ordinary goods, such as steelplate, workpiece, equipment etc special goods, such as coil. column, ladle etc Logistics, warehouse carrying |
| Battery Powered Transfer Car | KPX | Battery | Using frequency | ||
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance | ||
| Busbar Powered Handling vehicle | KPC | Busbar | Working shop | ||
| Dragged Cable transfer cart | KPT | Dragged Cable | |||
| Non-power transfer cart | KP | Non-power | 1-100t | Working shop | |
| Towed Trailer | RQP | Tractor | Load range 1-500t, can be customized ,steel floor is demanded | Working environment | |
| Trackless Handling Machine | RWP | Battery | Working path | ||
| AGV Automatic Trackless Transfer Cart | AGV | Battery | Load range 1-300ton, can be customized per client demand | Running Distance:Unrestricted | |
| RGV Automatic rail carrier | RGV | Battery/Busbar/rail | 1-150t can be customized per client demand | Circular track and linear reciprocating | |
| Ladle transfer cart | RGP | Battery/Cable | Load range 1-500ton, can be customized per client demand |
anti high temperature |
|
