| Price | Negotiable |
| MOQ | 1 |
| Delivery Time | 30-45 work days |
| Brand | Remarkable |
| Place of Origin | Henan, China |
| Certification | CE, ISO |
| Model Number | KPG/KPX |
| Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 600sets |
| Load | 1-500 tons | Place of Origin | Henan, China |
| Traveling speed（m/min） | 0-25 (Stepless speed regulation) | Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| table size | V/U/roller/lift table/customized | Power supply | Rail/Cable Drum/Battery/bus bar powered |
| Model Number | KPG/KPX | Supply Ability | 600sets |
| Certification | CE, ISO | Other function | Equip with turning light, night light, Explosion proof device, etc. |
| Brand Name | Remarkable | Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Ground type | rail | Price | Negotiable |
| Delivery Time | 30-45 work days | Product name | coil rail transfer vehicles |
| Minimum Order Quantity | 1 | Operation method | Wireless remote control & Hand operate pendant |
| Wheels type | Cast Wheel; Forged Wheel |

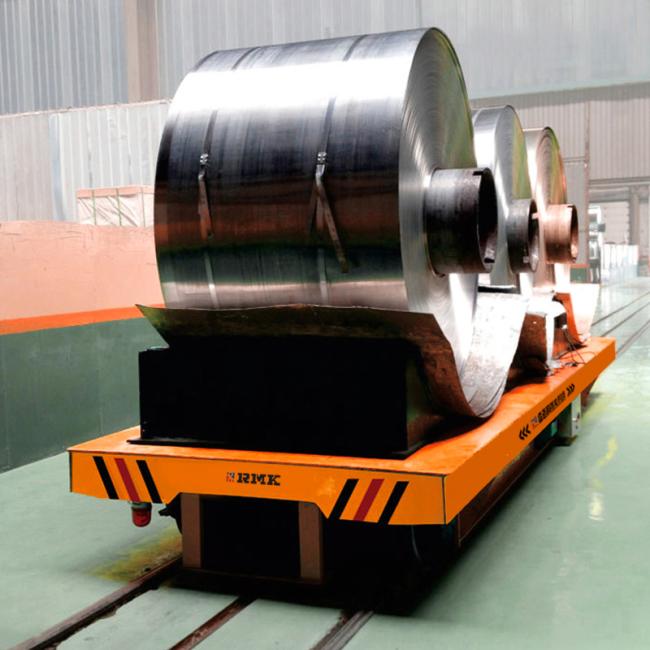

6 Tons Explosion Proof Coil Transfer Cart Stepless Speed Battery Powered
Remarkable designed and manufactured The two high-temperature explosion-proof rail transfer vehicles for Shangxi Electric Appliance Research Institute are customized spray furnace support carriers, which are mainly used for the use and coil material transfer of high-temperature spray furnace production workshop. Because of the harsh production environment and explosive conditions of the customer's spray furnace production workshop, we also adopt high-temperature and explosion-proof design and device, heat conduction and heat dissipation grid plate body, Explosion proof wheel and roller device. In order to make customers transport workpiece materials better, each carrier uses two sets of roller (active and passive) devices, the distance can adapt to different sizes of products. Stepless speed regulation, low noise, safe and stable transportation operation. The two cars can be connected through the pin shaft, which is used to carry larger and heavier workpieces, and the connection and disassembly are convenient.
| Technical parameters for rail power transfer carts | ||||||||||
| Model | KPG-6t | KPG-10t | KPG-16t | KPG-25t | KPG-40t | KPG-63t | KPG-100t | KPG-160t | KPG-200t | |
| Rated load (t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | |
| Countertop size(mm) | Length | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 | 8200 |
| Width | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 | 3000 | |
| Height | 550 | 550 | 600 | 650 | 700 | 850 | 900 | 1100 | 1250 | |
| Speed(m/min) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | 20 | 18 | |
| Wheel base A(mm) | 2000 | 2200 | 2200 | 2500 | 2800 | 3200 | 3600 | 5000 | 5000 | |
| Track medial distance C(mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1650 | 2000 | 2000 | |
| Wheel diameter(mm) | 400 | 400 | 400 | 500 | 500 | 600 | 700 | 700 | 700 | |
| Bottom clearance(mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | |
| Minimum turning radius | 30 | 35 | 50 | 55 | 60 | 80 | 100 | 100 | ||
| Power mode | Battery/low-voltage rail/ Cable Drum/cable reels/Dragged Cable / busbar powered | |||||||||
| Recommended track model | 24kg/m | 38kg/m | 43kg/m | QU80 | QU100 | |||||
| Number of wheels | 4 | 8 | ||||||||
| Maximum wheel Pressure (t) | 1.91 | 3.21 | 4.87 | 7.5 | 11.5 | 16.9 | 27.6 | 22.8 | 28.5 | |
| Reference weight (t) | 3.4 | 3.72 | 4.2 | 6 | 8.5 | 11.4 | 15.2 | 25.5 | 31.5 | |
|
Note:
1)
Other
gauges,
table
sizes
and
load
tonnages
can
be
customized
according
to
user
requirements; 2) Imported and domestic industrial wireless remote-control devices are optional; 3) Optional imported wireless two-speed control; 4) Optional matching automatic parking, and alarming when encountering person 2 meters away. |
||||||||||
Latest technology based explosion-proof coil rail transfer vehicles systems
Finding application in industrial units for diverting/merging unit loads between multiple lanes.
This series transport carts are suitable to be applied in the bed environment, for example, high-temperature and anti-explosion condition.
Available in options of single deck or double deck versions.
Coming with suitable lift support for addressing multiple receiving and delivery levels.
Requires less maintenance.
Fixed or variable speeds with forward/reverse function.

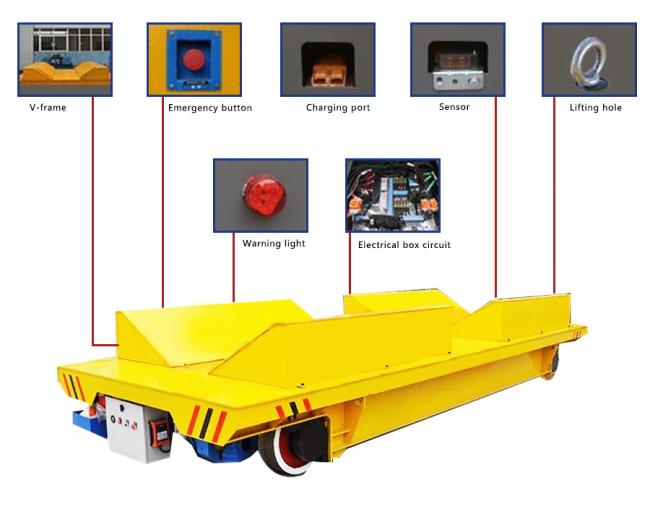

Safety features can be equiped including horns, flashing lights, e-stops, bumpers and collision avoidance systems.
The transfer cart can also be customized as per the specifications provided by customers.
