| Price | Negotiable |
| MOQ | 1 |
| Delivery Time | 30-45 work days |
| Brand | Remarkable |
| Place of Origin | Henan, China |
| Certification | CE, ISO |
| Model Number | RWP |
| Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 600 |
| Load | 20 tons | Place of Origin | Henan, China |
| Traveling speed（m/min） | 0-30 (Stepless speed regulation) | Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Move Way | Forward, backward, turning while driving with no stop | Power supply | Maintenance free battery |
| Model Number | RWP | Supply Ability | 600 |
| Certification | CE, ISO | Brand Name | Remarkable |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | other name | electric trackless transfer cart |
| Price | Negotiable | Delivery Time | 30-45 work days |
| application area | Material transportation | Minimum Order Quantity | 1 |
| Operation method | Wireless remote control & Hand operate pendant | Brake mode | Electromagnetic brake |

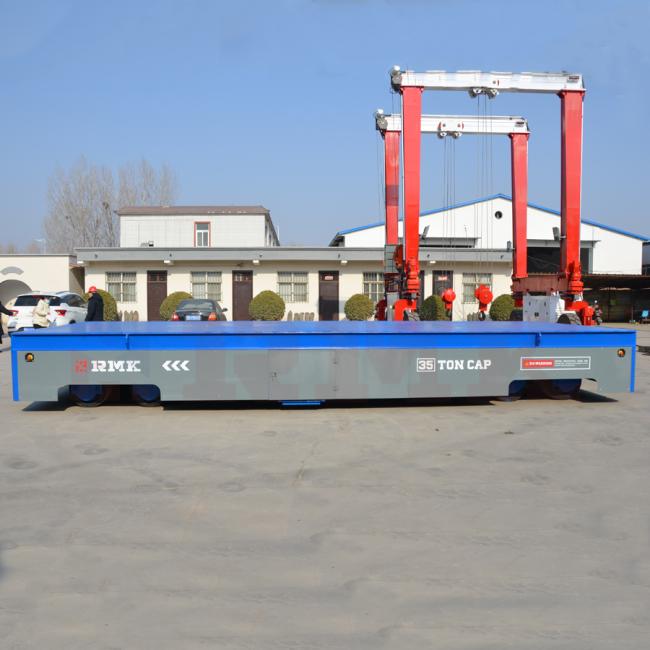

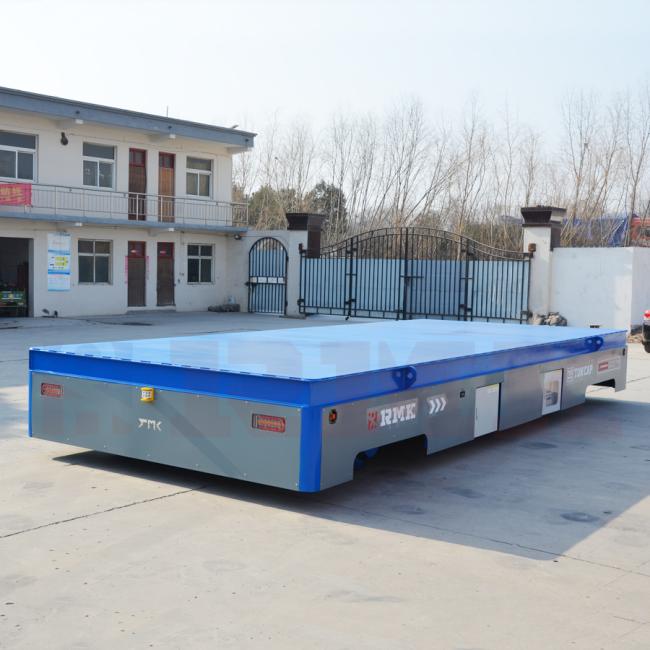

20T Material Transportation Trackless Transfer Trolley Battery Operated
The principle and mechanism of trackless electric flat car, the wheel data are made of cast steel, the wheel surface is quenched, and the bearing is double row centripetal spherical roller bearing, which can automatically compensate the deformation deviation of the frame.

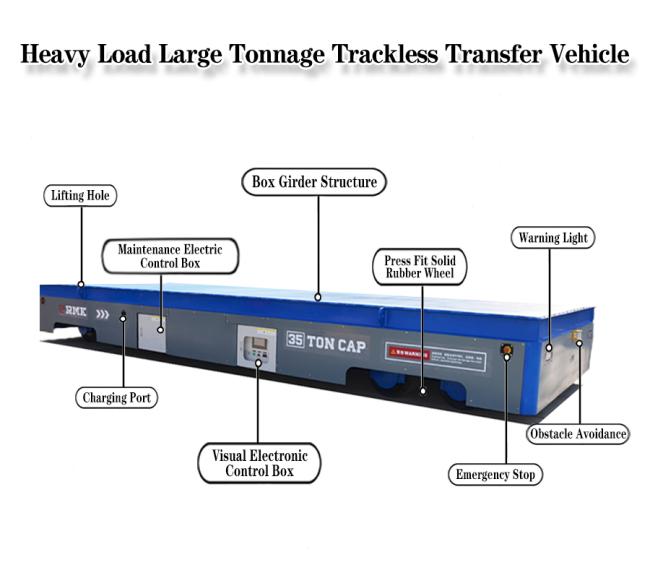

The car body of trackless steering electric flat car belongs to steel structure, the table top is tiled with steel plate, and then welded to form the frame. The frame is mainly made of section steel - I-beam and steel plate. The power supply system of trackless electric flat car is mainly battery power supply, which supplies 360V AC through cable drum. The cable drum is generally of hysteresis coupling type, which can ensure that the cable is stressed evenly and is not easy to be pulled out.
The wheel set is installed under the cross beam of the frame through the shoulder pole bearing seat, and each side is fixed with four bolts. This structure reduces the table height, improves the lateral stability and bearing capacity, and is beneficial to the stress of the frame.
20T Material Transportation Trackless Transfer Trolley Battery Operated Height 600mm
| Technical parameters for electric transfer carts | |||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure | |||||||
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground | ||||||
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 |
6000× 2300 |
10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 | ||||||
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop | |||||||
| 13 | control method for turning | control button | |||||||
| 14 | turning structure | mechanical | |||||||
| 15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
| 21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| 22 | battery maintenance | free of maintenance | |||||||
| 23 | charger's installation | installed on cart | split-type | ||||||
| 24 | charger function | automatic charging | |||||||
| 25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
| 26 | warning equipment | sound and light | |||||||
| 27 | other functions | turning light, night light and power display | |||||||
