| Price | Negotiable |
| MOQ | 1 |
| Delivery Time | 30-45 work days |
| Brand | Remarkable |
| Place of Origin | China |
| Certification | CE, ISO9001 |
| Model Number | RWP-15T |
| Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 400 sets per year |
| Load | 15 tons | Place of Origin | China |
| Traveling speed（m/min） | 0-20 (Stepless speed regulation) | Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Move Way | Forward, backward, turning while driving with no stop | Power supply | Maintenance free battery |
| Model Number | RWP-15T | Supply Ability | 400 sets per year |
| Certification | CE, ISO9001 | Brand Name | Remarkable |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Price | Negotiable |
| Delivery Time | 30-45 work days | Minimum Order Quantity | 1 |
| Battery charger function | Automatic charging | Operation method | Wireless remote control & Hand operate pendant |
| Brake mode | Electromagnetic brake | Table size | Customized |
Wireless Control Industrial Transfer Trolley
The Concrete Mould Transfer Carriage Is Powered By Free Maintenance Lead-Acid Battery That Is Very Easy To Operation And Environmentally-Friendly. It Is Specially Designed To Solve The Problems When Cargo Transportation, With High Efficiency, Low Time And Labour Cost, Highly Intelligent Control System.
Product Advantages:
1. Trackless Transfer Cars Can Meet The Needs Of Different Turning Directions.
2. It Can Satisfy Free Left-Right Steering And 360-Degree In-Situ Rotation.
3. The Trackless Transfer Cars Can Be Equipped With An Optional Human Encounter Detectiondevice, Which Can Detect Obstacles Or People In The Running Direction In Time Andautomatically Control The Cart To Stop.
Wireless Control Industrial Transfer Trolley

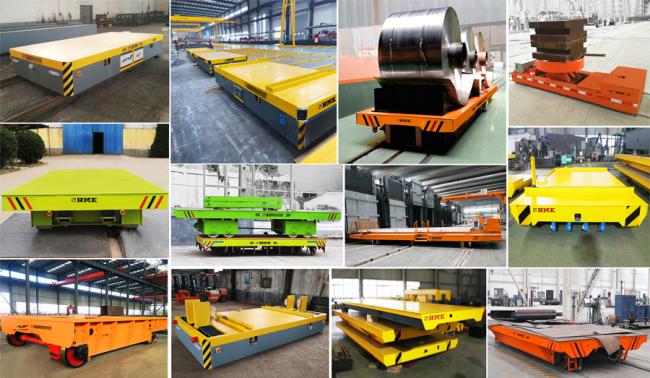

Remarkable heavy duty platform carts are utilised to transfer large and bulky injection molds within production plants, in both medium and large sized companies. Especially in the automobile industry and mechanical equipment industry. These companies have numerous molds which on a daily basis must be transferred within the factory from a storage location to the molding presses, to maintenance rooms and so on. So, the most effective way is to use Battery power platform trolleys, Remarkable is a professional heavy duty platform carts manufacturer to improve their operations.
| Technical parameters for electric transfer carts | |||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure | |||||||
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground | ||||||
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 |
6000× 2300 |
10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 | ||||||
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop | |||||||
| 13 | control method for turning | control button | |||||||
| 14 | turning structure | mechanical | |||||||
| 15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
| 21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| 22 | battery maintenance | free of maintenance | |||||||
| 23 | charger's installation | installed on cart | split-type | ||||||
| 24 | charger function | automatic charging | |||||||
| 25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
| 26 | warning equipment | sound and light | |||||||
| 27 | other functions | turning light, night light and power display | |||||||
