Cargo Handling Trackless Transfer Trolley Electric With Pu Wheel Motor Power 6kw

Price Negotiable
MOQ 1
Delivery Time 30-45 work days
Brand Remarkable
Place of Origin Henan, China
Certification CE, ISO
Model Number RWP
Packaging Details 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 600

Product Details

Product Specification

Load 15 tons Place of Origin Henan, China
Traveling speed(m/min) 0-30 (Stepless speed regulation) Packaging Details 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.
Move Way Forward, backward, turning while driving with no stop Power supply Maintenance free battery
Model Number RWP Supply Ability 600
Certification CE, ISO Brand Name Remarkable
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram other name pu wheel transfer trolley
Price Negotiable Delivery Time 30-45 work days
Minimum Order Quantity 1 Battery charger function Automatic charging
Operation method Wireless remote control & Hand operate pendant Brake mode Electromagnetic brake

Product Description

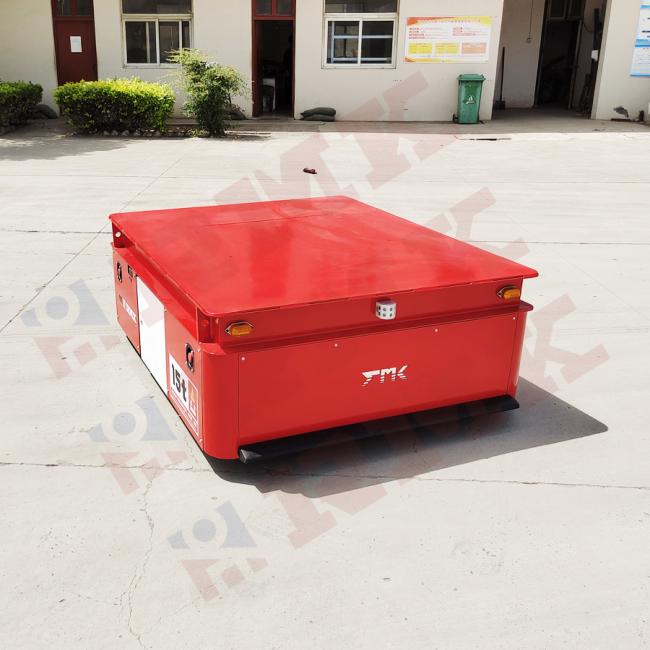

Cargo Handling Trackless Transfer Trolley Electric With Pu Wheel Motor Power 6kw



The main use environment of trackless electric flat car is the goods operation in grinding tool workshop and logistics warehouse, and it can also be used in outdoor environment. This model has relatively high requirements for the ground, which is generally used on cement ground, asphalt ground, epoxy ground or steel plate ground. Generally, those with a load of less than 50 tons can walk freely on the ordinary cement ground, but those with a load of more than 50 tons are required to lay steel plate ground on the walking route to prevent damage to the ground.

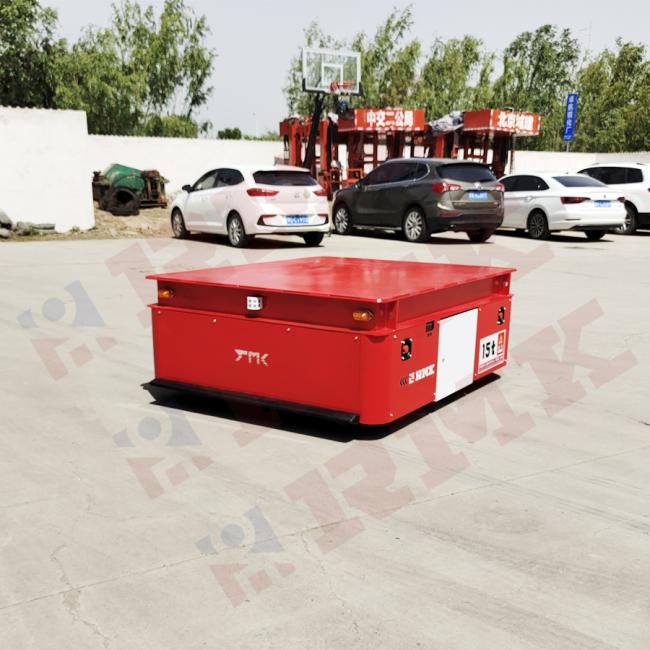

Cargo Handling Trackless Transfer Trolley Electric With Pu Wheel Motor Power 6kw



[use and maintenance]

1. During the use of trackless vehicle, attention shall be paid to the lubrication of steering wheel. If abnormal noise is found during walking, the fault shall be eliminated in time and lubricating oil shall be filled into the bearing regularly.

2. When the flat car is in use, the driving road surface needs to be flat, and uneven conditions are prohibited. For the handle and remote control controlled by the rocker, it is forbidden to damage the rocker with excessive force during use.

3. When the trackless flat car is running, it has good turning flexibility and needs skilled operators. During the use of the battery, pay attention to avoid the loss of the battery, charge and discharge regularly, and add electrolyte regularly.

4. The reducer shall be used for half a year to one year, and the lubricating oil shall be checked and replaced regularly. During use, pay attention to whether there are obstacles on the track and check whether the warning light is normal.



Technical parameters for electric transfer carts
1 rated load(t) 5 10 15 20 30 40 50 150
2 impacted rated load(t) 7.5 15 22.5 30 45 60 75 225
3 structure of frame steel plates welded, beam structure
4 max. wheel load(t) 2.8 4.3 4.8 5.6 7.7 10 12 27
5 ground requirement cement floor steel plate ground
6 table size(mm) 3000×2000 3600×2000 4000×2200 4500×2200 5000×2200 5500×2300

6000×

2300

10000×

3000

7 height of the whole cart(mm) 450 530 600 600 650 700 700 1200
8 ground clearance(mm) 50 75
9 wheels base(mm) 1500 1700 1800 2000
10 axles distance(mm) 2500 3100 3400 3900 4300 4800 5200 10000
11 turning radius(mm) 2501 3101 3401 3901 4301 4801 5201 10001
12 turning type turning while driving with no stop
13 control method for turning control button
14 turning structure mechanical
15 motor power(Kw) 3.5 5 6 7 10 12 15 15
16 wheel diameter(mm) Ф300 x 4 Ф350 x 4 Ф400 x 4 Ф400 x 6 Ф500 x 6 Ф600 x 8
21 battery model D-250 x 24 D-33 x 24 D-400 x 24 D-440 x 24 D-250 x 36 D-330 x 36 D-440 x 36 D-600 x 36
22 battery maintenance free of maintenance
23 charger's installation installed on cart split-type
24 charger function automatic charging
25 radar control 3-0.3m, automatic stop for obstacles
26 warning equipment sound and light
27 other functions turning light, night light and power display
