| Price | Negotiable |
| MOQ | 1 |
| Delivery Time | 30-45 work days |
| Brand | Remarkable |
| Place of Origin | Henan, China |
| Certification | CE, ISO |
| Model Number | RWP |
| Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 600 |
| Load | 4 tons | Place of Origin | Henan, China |
| Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. | Move Way | Forward, backward, turning while driving with no stop |
| Model Number | RWP | Supply Ability | 600 |
| Certification | CE, ISO | Brake Mode | Electromagnetic brake |
| Power Supply | Maintenance free battery | Brand Name | Remarkable |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Traveling Speed（m/min） | 0-20 (Stepless speed regulation) |
| Operation Method | Wireless remote control & Hand operate pendant | Price | Negotiable |
| Delivery Time | 30-45 work days | Minimum Order Quantity | 1 |
| Other Name | trackless transfer cart | Battery Charger function | Automatic charging |

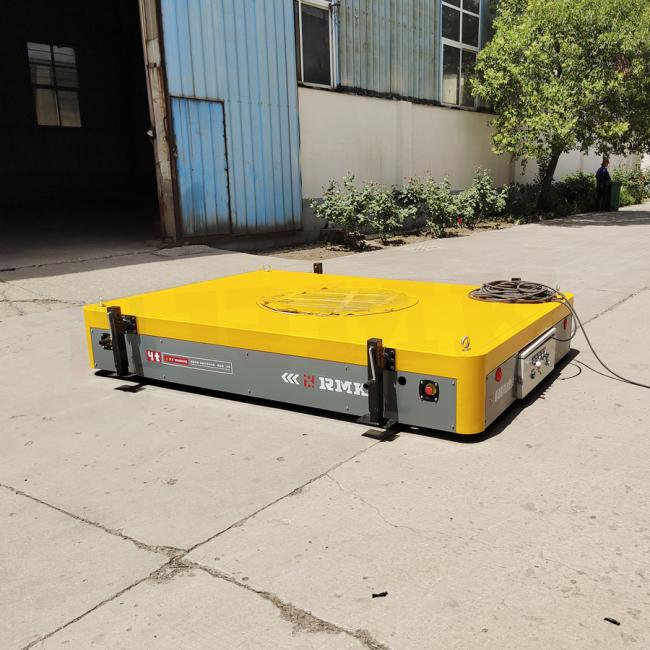

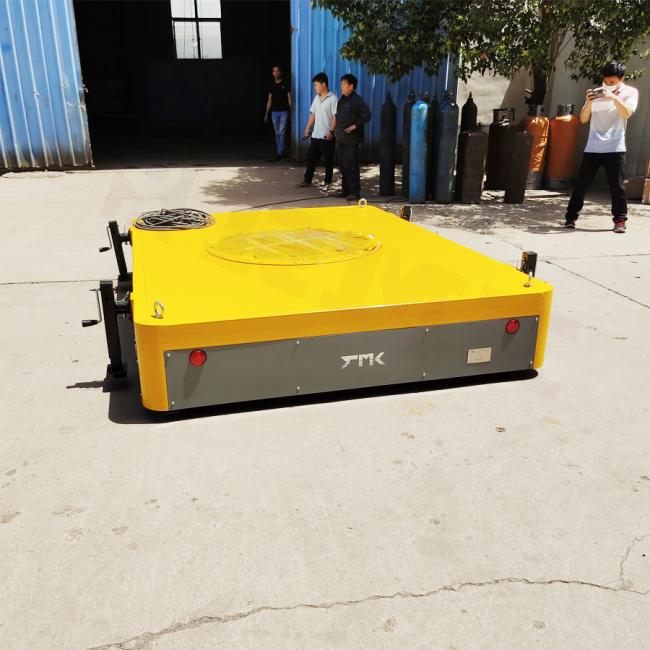

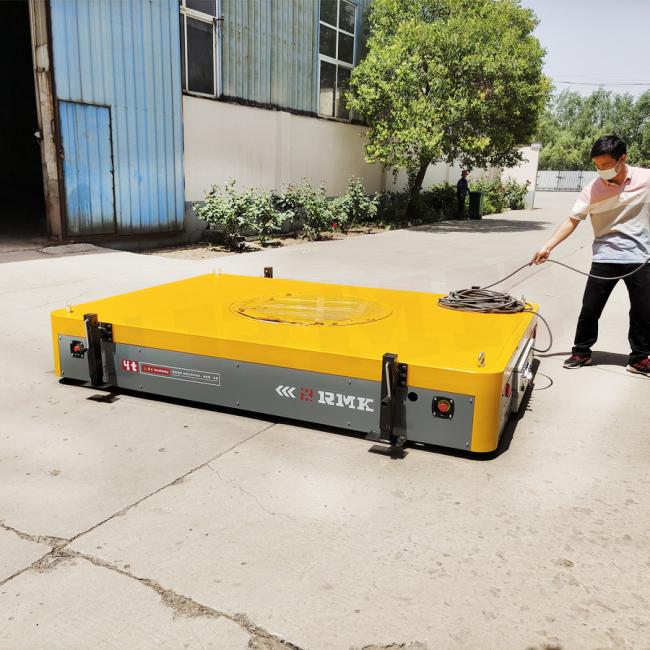

Height 600mm Automatic Transfer Cart , 10T Heavy Duty Transport Trolley
Trackless electric flat car equipment is a material handling equipment that does not need to lay tracks and walks on flat and hardened ground. Its power is provided by the battery installed inside the flat car. The on-board electrical control system provides power to the DC traction motor. The start, stop, forward, backward, turning and other functions of the flat car are operated and controlled by the handheld operating handle (wired or wireless). The difference between trackless electric carrier and track electric flat car is that the operation is not limited by the track track and can turn and run freely. The vehicle body is short, the load capacity is large, the operation is flexible, the remote control operation can be realized, and the in-situ 360° steering and in-situ vertical and horizontal operation can be realized. However, the equipment is powered by the battery and the power supply time is limited. Attention should be paid to charging and daily management of the battery. The length, width and height of trackless electric carrier, as well as its running speed and table requirements, can be customized according to the process requirements of customers.
Height 600mm Automatic Transfer Cart , 10T Heavy Duty Transport Trolley
| Technical parameters for electric transfer carts | |||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure | |||||||
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground | ||||||
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 |
6000× 2300 |
10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 | ||||||
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop | |||||||
| 13 | control method for turning | control button | |||||||
| 14 | turning structure | mechanical | |||||||
| 15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
| 21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| 22 | battery maintenance | free of maintenance | |||||||
| 23 | charger's installation | installed on cart | split-type | ||||||
| 24 | charger function | automatic charging | |||||||
| 25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
| 26 | warning equipment | sound and light | |||||||
| 27 | other functions | turning light, night light and power display | |||||||
