| Price | Negotiable |
| MOQ | 1 set |
| Delivery Time | 30-45 work days |
| Brand | Remarkable |
| Place of Origin | China |
| Certification | CE, ISO9001 |
| Model Number | RWP-5T |
| Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Payment Terms | T/T, L/C, D/A, D/P, , Western Union, MoneyGram |
| Supply Ability | 500 sets per year |
| Load | 5 tons | Place of Origin | China |
| Traveling speed（m/min） | 0-20 (Stepless speed regulation) | Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Move Way | Forward, backward, turning while driving with no stop | Power supply | Maintenance free battery |
| Model Number | RWP-5T | Supply Ability | 500 sets per year |
| Certification | CE, ISO9001 | Brand Name | Remarkable |
| Payment Terms | T/T, L/C, D/A, D/P, , Western Union, MoneyGram | Price | Negotiable |
| Delivery Time | 30-45 work days | Minimum Order Quantity | 1 set |
| Battery charger function | Automatic charging | Operation method | Wireless remote control & Hand operate pendant |
| Brake mode | Electromagnetic brake | Table size | Customized |

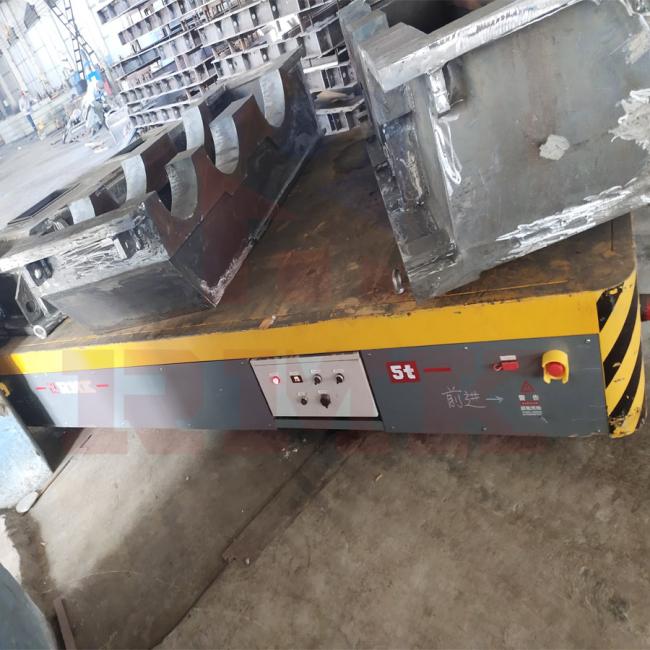

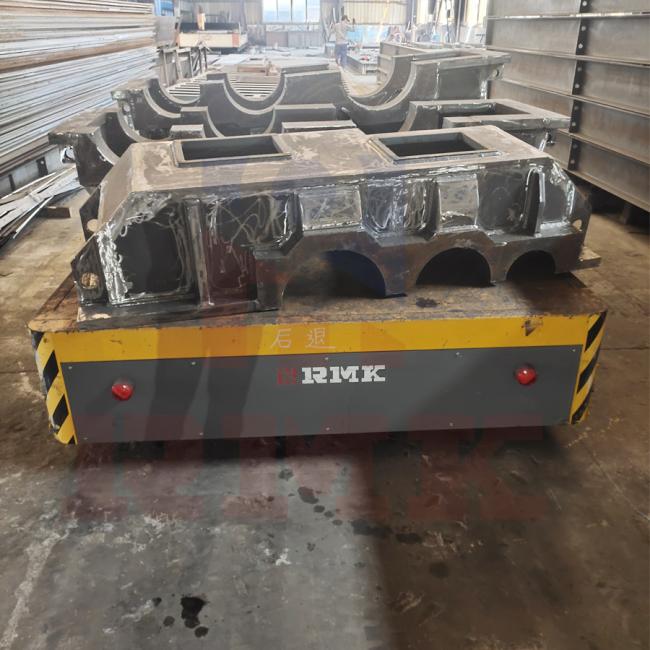

5 Tons Warehouse Concrete Transfer Cart Is A Kind Of Electric Flat Car Without Special Track. It Is Mainly Powered By Battery And Equipped With Maintenance Free Battery, Which Can Reduce The Daily Maintenance Of Flat Car. The Trackless Electric Flat Car Has No Cable And Fixed Running Track, So It Can Turn Freely. Moreover, After Special Design And Configuration, The Turning Radius Is Relatively Small, And It Can Even Realize In-Situ Rotation. The Turning Process Is Particularly Flexible. It Has Less Restrictions On The Surrounding Operation Area Layout, And Can Make Corresponding Adjustment For Uneven Ground.
Advantages About Electric Transfer Trolley:
1.
High
Level
Automation(Self
Propelled/Steerable)
2.
The
Largest
Capacity
Can
Reach
To
100t
3.
Safe
Parts
Are
Installed
In
The
Transfer
Car(Warning
Light,
E-Stop,
Buffer...)
4.
Robust
Sturdy
Car
Frame
5.
AC/DC
Electric
Engine
,
Diesel
Engine
Or
Pneumatic
Engine
6.
Excellent
Gear
Reducer
And
Motor
With
High
Quality,
Assemblied
Together
Perfectly
7.
Remote
Control&Hand
Pendant
Control
Make
The
Opration
More
Convenient.
8.
The
Speed
Can
Be
Adjusted
9.
Easy
Operation
And
Maintenance
10.
Famous
Brand
Parts,
Guarantee
The
Quality
And
Prolong
The
Using
Lifetime
11.
Low
Noise
And
Do
Not
Pollute
The
Environment
| Technical parameters for electric transfer carts | |||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure | |||||||
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground | ||||||
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 |
6000× 2300 |
10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 | ||||||
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop | |||||||
| 13 | control method for turning | control button | |||||||
| 14 | turning structure | mechanical | |||||||
| 15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
| 21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| 22 | battery maintenance | free of maintenance | |||||||
| 23 | charger's installation | installed on cart | split-type | ||||||
| 24 | charger function | automatic charging | |||||||
| 25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
| 26 | warning equipment | sound and light | |||||||
| 27 | other functions | turning light, night light and power display | |||||||
