| Price | Price negotiation |
| MOQ | 1set |
| Delivery Time | 40-45 work days |
| Brand | Remarkable |
| Place of Origin | Henan, China |
| Certification | CE, SGS, ISO |
| Model Number | RGV |
| Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 560/years |
| Place of Origin | Henan, China | Operation Type | Remote Control+Hand Pendant+Computer programming |
| Packaging Details | 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes. | Product Name | Automatic rail transfer cart |
| Power supply | Battery/Rail/Cable/AC+DC motor/motorized | Material | Q235Steel / Q345 Steel |
| Model Number | RGV | Supply Ability | 560/years |
| Certification | CE, SGS, ISO | Brand Name | Remarkable |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Load capacity | 1-1000 tons/Customized |
| Table style | Roll/U-shape/V-shape/Hydraulic lifting/Customized | Price | Price negotiation |
| Delivery Time | 40-45 work days | Minimum Order Quantity | 1set |
| safety feature | Automatic obstacle avoidance, warning alarm, end stop | Environment | Heat, Explosive |
Remote Control AGV Automated Guided Vehicle

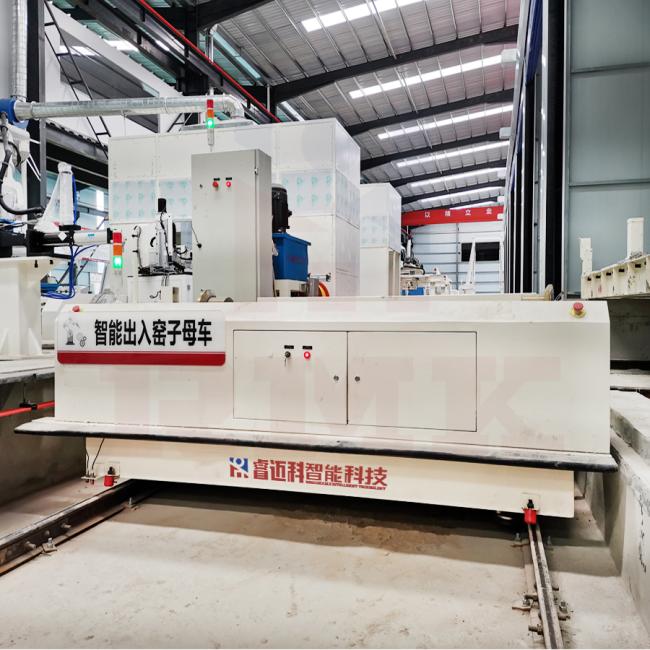

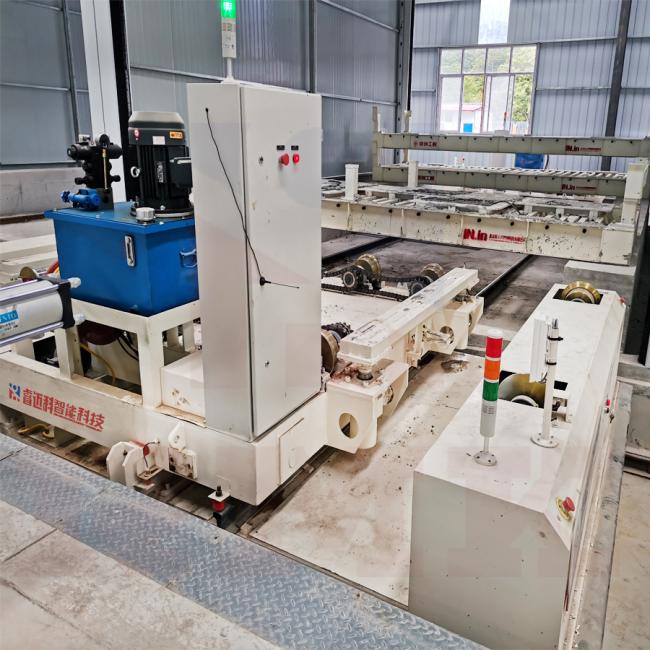

The Factory workshop use material handling Heavy load rail transport cart RGV trolley is an electric material handling transfer trolley guided by low voltage rails. This kinds trolley running on the steel rail is used to handle any type of load, regardless of its size or weight, on a defined runtime.
As the RGV trolley is equipped with steel wheels and move on steel rails they are suited to very high loading capacities thanks to the very low friction between steel and steel.
If the large-tonnage molds are transported by crane, there is a large danger. In order to guarantee the safe and reduce the laying of tracks, the heavy load rail transfer trolley was born.
The mould is hoisted to the rail handling bogie by a crane. In order to avoid the mould from sliding on the rail handling trolley, a rubber plate is laid on the table and the mold is transported to the corresponding station by the flat table transfer bogie. Route, but with its own safety monitoring device, it will automatically stop when it encounters a pedestrian or an obstacle, and the safety is reliable.
| Technical parameters for rail power transfer carts | ||||||||||
| Model | KPG-6t | KPG-10t | KPG-16t | KPG-25t | KPG-40t | KPG-63t | KPG-100t | KPG-160t | KPG-200t | |
| Rated load (t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | |
| Countertop size(mm) | Length | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 | 8200 |
| Width | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 | 3000 | |
| Height | 550 | 550 | 600 | 650 | 700 | 850 | 900 | 1100 | 1250 | |
| Speed(m/min) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | 20 | 18 | |
| Wheel base A(mm) | 2000 | 2200 | 2200 | 2500 | 2800 | 3200 | 3600 | 5000 | 5000 | |
| Track medial distance C(mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1650 | 2000 | 2000 | |
| Wheel diameter(mm) | 400 | 400 | 400 | 500 | 500 | 600 | 700 | 700 | 700 | |
| Bottom clearance(mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | |
| Minimum turning radius | 30 | 35 | 50 | 55 | 60 | 80 | 100 | 100 | ||
| Power mode | Battery/low-voltage rail/ Cable Drum/cable reels/Dragged Cable / busbar powered | |||||||||
| Recommended track model | 24kg/m | 38kg/m | 43kg/m | QU80 | QU100 | |||||
| Number of wheels | 4 | 8 | ||||||||
| Maximum wheel Pressure (t) | 1.91 | 3.21 | 4.87 | 7.5 | 11.5 | 16.9 | 27.6 | 22.8 | 28.5 | |
| Reference weight (t) | 3.4 | 3.72 | 4.2 | 6 | 8.5 | 11.4 | 15.2 | 25.5 | 31.5 | |
|
Note:
1)
Other
gauges,
table
sizes
and
load
tonnages
can
be
customized
according
to
user
requirements; 2) Imported and domestic industrial wireless remote-control devices are optional; 3) Optional imported wireless two-speed control; 4) Optional matching automatic parking, and alarming when encountering person 2 meters away. |
||||||||||
Advantages of Remote Control AGV Automated Guided Vehicle
Custom Options
─
Deck
Railings
─
Wood
Decking
Material
─
Screw-Jack
Lift
Deck
─
Paint
Color
(customer
specified)
─
Rail
Guides
─
Floor
Rail
─
End
Stops
─
Urethane
Wheels
(not
available
on
guided
carts)
─
Live
Axle
|
Our Related Product |
|||||
|
Product Name |
Model No. |
Power Supply Mode |
Load Capacity |
Other Items |
Usage |
|
Rail Transfer vehicle |
KPG |
Conductor Rail/Battery |
Load range 1-500ton, can be customized per client demand |
Running distance |
Ordinary goods,such as steelplate, workpiece,equipment etc special goods,such as coil. column,ladle etc Logistics,warehouse carrying |
|
Battery Powered Transfer Car |
KPX |
Battery |
Using frequency |
||
|
Motorized Transfer Trolley |
KPJ |
Cable Drum |
Running distance |
||
|
Busbar Powered Handling vehicle |
KPC |
Busbar |
Working shop |
||
|
Dragged Cable transfer cart |
KPT |
Dragged Cable |
|
||
|
Non-power transfer cart |
KP |
Non-power |
1-100t |
Working shop |
|
|
Towed Trailer |
RQP |
Tractor |
Load range 1-500t, can be customized ,steel floor is demanded |
Working environment |
|
|
Trackless Handling Machine |
RWP |
Battery |
Working path |
||
|
AGV Automatic Trackless Transfer Cart |
AGV |
Battery |
Load range 1-300ton, can be customized per client demand |
Running Distance:Unrestricted |
|
|
RGV Automatic rail carrier |
RGV |
Battery/Busbar/rail |
1-150t can be customized per client demand |
Circular track and linear reciprocating |
|
|
Ladle transfer cart |
RGP |
Battery/Cable |
Load range 1-500ton, can be customized per client demand |
anti high temperature |
|
