CE Certified Auto Brazing Machine High Strength For PCD Diamond

Price	Negotiable
MOQ	1 SETS
Delivery Time	5-60 WORKING DAYS
Brand	CHN-TOP
Place of Origin	CHINA
Certification	CE
Model Number	ZT-ZKHJ180
Packaging Details	WOODEN CASE
Payment Terms	L/C, T/T, D/A, MoneyGram
Supply Ability	50 SETS/MONTH

Product Details

Product Specification

cycle time	90 minitunes	Place of Origin	CHINA
Packaging Details	WOODEN CASE	Model Number	ZT-ZKHJ180
Supply Ability	50 SETS/MONTH	Certification	CE
Brand Name	CHN-TOP	Payment Terms	L/C, T/T, D/A, MoneyGram
Brand	CHN-TOP	Price	Negotiable
Delivery Time	5-60 WORKING DAYS	Product name	Vacuum Brazing machine
Minimum Order Quantity	1 SETS	Brazing ability	500pcs per time
Application	PCD PCBN diamond tools brazing

Product Description

PCD BLANK PCBN TOOL PCD TOOLS DIAMOND TOOLS ULTRA-HARD MATERIAL TOOLS VACUUM BRAZING MACHINE PCD TOOLS BRAZING SERVICE

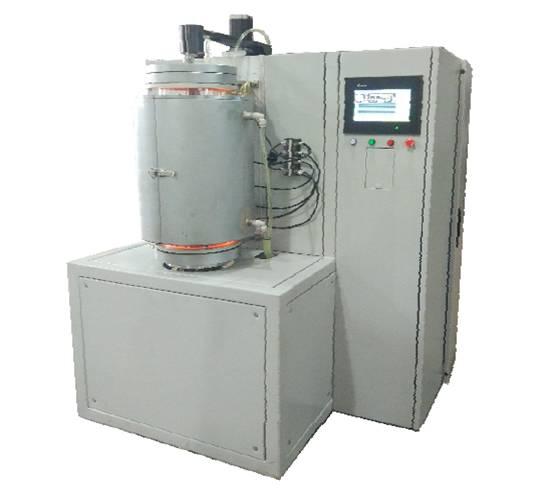

ZT-ZKHJ180E Vacuum Brazing machine is excellent for brazing ultra-hard material(PCD /PCBN/ MD/ ND /CVD), TUNGSTEN carbide, ceramics and others;

It's fully automatic and very easy to operate at high efficienty

No oxidation
Easy temperature control
Work environment improvement
Total cost efficiency
Enhancement of strength
Reduction of distortion

MAIN FEATURES

1, PLC control, SCR heating, touch panel,

automatic implement after simple setting with easy temperature control.

2, No oxidation, clean surface, environment-friendly.

3, Brazing quantity is more than 500pcs (for CNGA1204), reduce total cost.

4, The machine is fully automatic and once loaded, the cycle time is approximately 70-120 mins.

5, Reduction of distortion even very small tool insert can be brazed.

6, High brazing strength, 2 times higher than induction welding.

7, Advanced artificial quartz stone for table-board, elegant, high temperature resistance.

Besides the standard machine, we can offer OEM according to clients’ requirement.

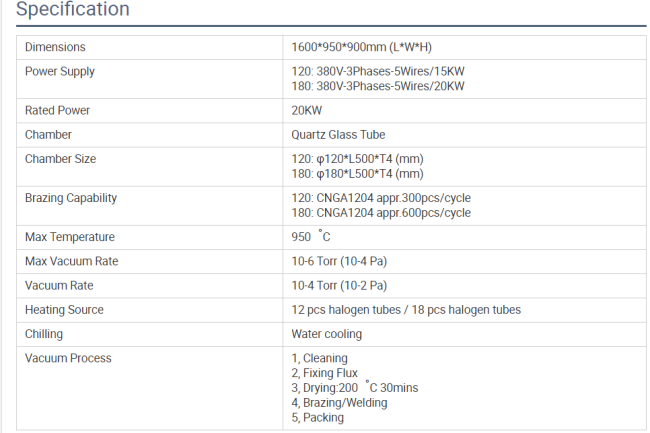

Technical Parameters:

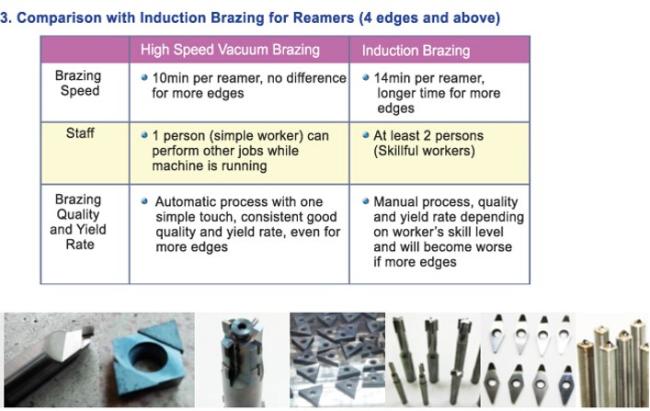

Brazing Samples

CHN-TOP is the company offer comprehensive solutions for diamond tools making
Machines: PCD/PCBN diamond grinding machine, Vacuum brazing machine, laser cutting machine,
chip breaker machines, laser engraving machine and polishing machines
Material: World famous PCD/ PCBN blanks , such as ILJIN, Element six, Hypersion, Adico, CHN-TOP
CTSTC, SF with competive price
Machining service: Cutting for segements, brazing service for MD/PDC cutter, PCBN tools,
Notching service for tools, chip breaker machining service and grinding service
