CE Certification Vacuum Brazing Machine Automatic For PCD Blank Tools

Price	Negotiable
MOQ	1 SETS
Delivery Time	5-60 WORKING DAYS
Brand	CHN-TOP
Place of Origin	CHINA
Certification	CE
Model Number	ZT-ZKHJ180
Packaging Details	WOODEN CASE
Payment Terms	L/C, T/T, D/A, MoneyGram
Supply Ability	50 SETS/MONTH

Product Details

Product Specification

Vacuum process	clean, fixiing, drying and brazing	Place of Origin	CHINA
Packaging Details	WOODEN CASE	Model Number	ZT-ZKHJ180
Supply Ability	50 SETS/MONTH	Certification	CE
Brand Name	CHN-TOP	Payment Terms	L/C, T/T, D/A, MoneyGram
Brand	CHN-TOP	Model No.	ZT-ZKHJ180
Price	Negotiable	Delivery Time	5-60 WORKING DAYS
Product name	Vacuum brazing machine	Minimum Order Quantity	1 SETS
Application	PCD PCBN DIAMOND TOOLS BRAZING

Product Description

PCD BLANK TOOLS EQUIPMENT TOOLS MACHINIING PCD BLANK PCD TOOLS VACUUM BRAZING MACHINE

Vacuum Brazing machine is excellent for brazing ultra-hard material(PCD /PCBN/ MD/ ND /CVD), TUNGSTEN carbide, ceramics and others;

It's fully automatic and very easy to operate at high efficienty

Materials: Natural Diamond, Monocrystal diamond, PCD , PCBN, CVD and cermet
Substrate material:CERMET, tungsten carbide, steel, stainless steel, steel alloy ,ceramic, etc

MAIN FEATURES

1, PLC control, SCR heating, touch panel,

automatic implement after simple setting with easy temperature control.

2, No oxidation, clean surface, environment-friendly.

3, Brazing quantity is more than 500pcs (for CNGA1204), reduce total cost.

4, The machine is fully automatic and once loaded, the cycle time is approximately 70-120 mins.

5, Reduction of distortion even very small tool insert can be brazed.

6, High brazing strength, 2 times higher than induction welding.

7, Advanced artificial quartz stone for table-board, elegant, high temperature resistance.

Besides the standard machine, we can offer OEM according to clients’ requirement.

Technical Parameters:


			Dimensions
			1600*950*900mm( L*W*H)

			Power supply
			3 phases-380V-15KW

			Chamber
			Quartz Glass Tube

			Chamber size
			￠180*500(L)*T4(mm)

			Brazing Capability

			For example: CNGA1204 approx 350pcs/cycle

			Max Temperature
			950℃

			Limiting Vacuum rate
			10-6 Torr (10-4 Pa)

			Vacuum Rate
			10-5 Torr (10-3 Pa)

			Heating source
			18 pcs halogen tubes

			Chilling
			Water

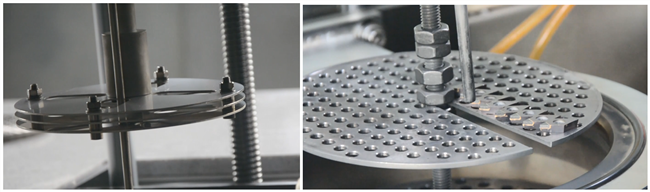

Brazing Samples

CHN-TOP is the company offer comprehensive solutions for diamond tools making
Machines: PCD/PCBN diamond grinding machine, Vacuum brazing machine, laser cutting machine,
chip breaker machines, laser engraving machine and polishing machines
Material: World famous PCD/ PCBN blanks , such as ILJIN, Element six, Hypersion, Adico, CHN-TOP
CTSTC, SF with competive price
Machining service: Cutting for segements, brazing service for MD/PDC cutter, PCBN tools,
Notching service for tools, chip breaker machining service and grinding service
