| Price | Negotiable |
| MOQ | 1SETS |
| Delivery Time | 20-60 working days |
| Brand | CHN-TOP |
| Place of Origin | CHINA,HUNAN |
| Certification | CE |
| Model Number | ZT-90V |
| Packaging Details | Wooden packing |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 30 sets per month |
| Place of Origin | CHINA,HUNAN | Packaging Details | Wooden packing |
| Material | Cast iron | Model Number | ZT-90V |
| Supply Ability | 30 sets per month | Certification | CE |
| Brand Name | CHN-TOP | Payment Terms | L/C, D/P, T/T |
| Brand | CHN-TOP | Type | Automatic |
| Model No. | ZT-90V | Price | Negotiable |
| Delivery Time | 20-60 working days | Minimum Order Quantity | 1SETS |
PCD GRINDING MACHINE CNC CONTROL SYSTEM ERROR CODE ALARM GOOD DIAMOND GRINDING MACHINE FOR CARBIDE TOOLS BLADE TOOLS
ZT-90V Grinder is a special equipment which focus on grinding diamond V-Cut tools and some saw blades.
1. It’s also can grind carbide tools also.
2. CNC control system
3. One time fitting can finish grinding work by automatically which it’s high precision.
4. Auto infeed and out feed, automatically scale division and measurements.
5. The software support parameter setting record and can turn to next tip by automatic also .
6. It’s error code recognize by software.
This model is widely used for PCB board V-Cut tool, wooden blades and other diamond or carbide tools of this kind
Features
1.All cast machine body and cast accessories are average 24 months natural ageing which it’s high rigidity and stability.
2. Grinding head is a up-down spindle and angle adjustable, featuring in high running speed high precision.
3. Pneumatic systems imported from SMC of Japan , fast infeed and out feed worktable with flexible grinding .
4. All of the CNC control system is self -R&D software, embedded CCD and measurement system, all the sensors, servo control are closed control system to make sure it’s accuracy and stability.

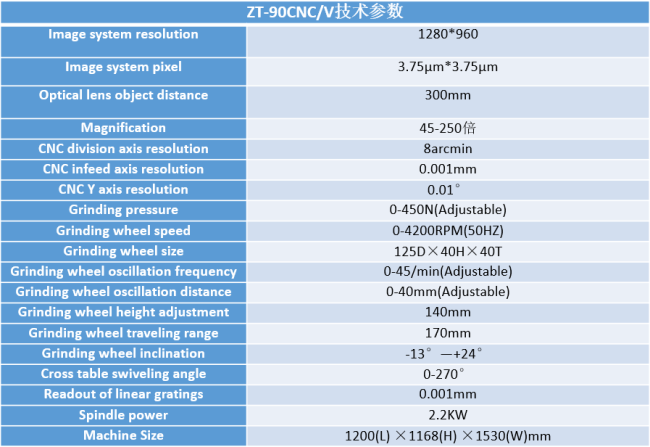

TECHNICAL PARAMETERS
ZT-90CNC/V Prameter Specification
1. Optical System
| Image system resolution | 1280*960 |
| Image system pixel | 3.75μm*3.75μm |
| Optical lens object distance | 300mm |
| Magnification | 45-250 times |
| CNC division axis resolution | 8arcmin |
| CNC infeed axis resolution | 0.001mm |
| CNC Y axis resolution | 0.01° |
CHN-TOP is the company offer comprehensive solutions for diamond tools making
