| Price | Negotiable |
| MOQ | 20 |
| Delivery Time | 1-15days |
| Brand | QRL |
| Place of Origin | CHINA |
| Certification | ISO9001/2000 |
| Model Number | GE 45 ES-2RS |
| Packaging Details | Carton/woven bag |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 5000pcs |
| Place of Origin | CHINA | Size | 45x68x32 mm |
| Packaging Details | Carton/woven bag | Model Number | GE 45 ES-2RS |
| Supply Ability | 5000pcs | Oe no. | GE 45 ES-2RS |
| Precision Rating: | P4 P5 P6 P2 | Certification | ISO9001/2000 |
| Weight | 0.31 kg/pcs | Brand Name | QRL |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union | Place of Origin: | CHINA |
| Delivery Time | 1-15days | Universal number | GE25ES |
| Product name | For Automotive | Minimum Order Quantity | 20 |
| Type: | Spherical Plain Bearing |
| Part Number | GE 45 ES |
| System of Measurement | Metric |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Radial |
| For Load Direction | Combined Radial and Thrust |
| Inner Ring Shape | Groove |
| Outer Ring Shape | Groove |
| Seal Type | Open |
| Bore Dia | 45 mm |
| Bore Dia Tolerance | -0.012mm to 0 |
| Outer Dia | 68 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Nominal Width | 32 mm |
| Nominal Width Tolerance | -0.12mm to 0 |
| Width Outer Ring | 25 mm |
| Width Outer Ring Tolerance | -0.3mm to 0 |
| Angle Of Tilt | 7° |
| Raceway Diameter Inner Ring | 60 mm |

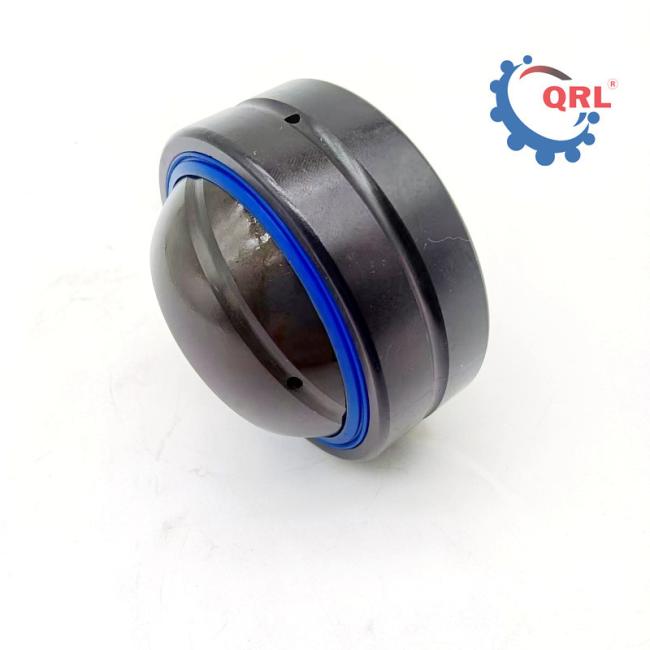

Spherical
Plain
Bearing
Description
The Spherical Bearing is a heavy-duty self-aligning sliding bearing. Highly resistant to impact loads, this product is most fitted to the oscillating section under slow, heavy loads.
| Bearing Type | Dimensions/mm | α/(°)≈ | ||||||||||||
| GE…E型 | GE…ES | GE…DS | GE…C | GE…ES-2RS | d | D | B | C | d1≈ | dk① | rsmin | r1smin | Other | GE…ES-2RS型 |
| GE4E | － | － | GE4C | － | 4 | 12 | 5 | 3 | 6 | 8 | 0.3 | 0.3 | 16 | － |
| GE5E | － | GE5DS | GE5C | － | 5 | 14 | 6 | 4 | 8 | 10 | 0.3 | 0.3 | 13 | － |
| GE6E | － | GE6DS | GE6C | － | 6 | 14 | 6 | 4 | 8 | 10 | 0.3 | 0.3 | 13 | － |
| GE8E | － | GESDS | GE8C | － | 8 | 16 | 8 | 5 | 10 | 13 | 0.3 | 0.3 | 15 | － |
| GE10E | － | GE10DS | GE10C | － | 10 | 19 | 9 | 6 | 13 | 16 | 0.3 | 0.3 | 12 | － |
| GE12E | － | GE12DS | GE12C | － | 12 | 22 | 10 | 7 | 15 | 18 | 0.3 | 0.3 | 10 | － |
| － | GE15ES | GE15DS | GE15C | GE15ES-2RS | 15 | 26 | 12 | 9 | 18 | 22 | 0.3 | 0.3 | 8 | 5 |
| － | GE17ES | GE17DS | GE17C | GE17ES-2RS | 17 | 30 | 14 | 10 | 20 | 25 | 0.3 | 0.3 | 10 | 7 |
| － | GE20ES | GE20DS | GE20C | GE20ES-2RS | 20 | 35 | 16 | 12 | 24 | 29 | 0.3 | 0.3 | 9 | 6 |
| － | GE25ES | GE25DS | GE25C | GE25ES-2RS | 25 | 42 | 20 | 16 | 29 | 35 | 0.6 | 0.6 | 7 | 4 |
| － | GE30ES | GE30DS | GE30C | GE30ES-2RS | 30 | 47 | 22 | 18 | 34 | 40 | 0.6 | 0.6 | 6 | 4 |
| － | GE35ES | GE35DS | － | GE35ES-2RS | 35 | 55 | 25 | 20 | 39 | 47 | 0.6 | 1 | 6 | 4 |
| － | GE40ES | GE40DS | － | GE40ES-2RS | 40 | 62 | 28 | 22 | 45 | 53 | 0.6 | 1 | 7 | 4 |
| － | GE45ES | GE45DS | － | GE45ES-2RS | 45 | 68 | 32 | 25 | 50 | 60 | 0.6 | 1 | 7 | 4 |
| － | GE50ES | GE50DS | － | GE50ES-2RS | 50 | 75 | 35 | 28 | 55 | 66 | 0.6 | 1 | 6 | 4 |
| － | GE55ES | GE55DS | － | GE55ES-2RS | 55 | 85 | 40 | 32 | 62 | 74 | 0.6 | 1 | 7 | － |
| － | GE60ES | GE60DS | － | GE60ES-2RS | 60 | 90 | 44 | 36 | 66 | 80 | 1 | 1 | 6 | 3 |
| － | GE70ES | GE70DS | － | GE70ES-2RS | 70 | 105 | 49 | 40 | 77 | 92 | 1 | 1 | 6 | 4 |
| － | GE80ES | GE80DS | － | GE80ES-2RS | 80 | 120 | 55 | 45 | 88 | 105 | 1 | 1 | 6 | 4 |
| － | GE90ES | GE90DS | － | GE90ES-2RS | 90 | 130 | 60 | 50 | 98 | 115 | 1 | 1 | 5 | 3 |
| － | GE100ES | GE100DS | － | GE100ES-2RS | 100 | 150 | 70 | 55 | 109 | 130 | 1 | 1 | 7 | 5 |
| － | GE110ES | GE110DS | － | GE110ES-2RS | 110 | 160 | 70 | 55 | 120 | 140 | 1 | 1 | 6 | 4 |
| － | GE120ES | GE120DS | － | GE120ES-2RS | 120 | 180 | 85 | 70 | 130 | 160 | 1 | 1 | 6 | 4 |
| － | GE140ES | GE140DS | － | GE140ES-2RS | 140 | 210 | 90 | 70 | 150 | 180 | 1 | 1 | 7 | 5 |
| － | GE160ES | GE160DS | － | GE160ES-2RS | 160 | 230 | 105 | 80 | 170 | 200 | 1 | 1 | 8 | 6 |
| － | GE180ES | GE180DS | － | GE180ES-2RS | 180 | 260 | 105 | 80 | 192 | 225 | 1.1 | 1.1 | 6 | 5 |
| － | GE200ES | GE200DS | － | GE200ES-2RS | 200 | 290 | 130 | 100 | 212 | 250 | 1.1 | 1.1 | 7 | 6 |
Spherical
Plain
Bearing
Delivery
According
to
different
applications,
bearings
without
inner
ring
or
needle
roller
and
cage
components
can
be
selected.
At
this
time,
the
journal
surface
and
shell
hole
surface
matching
the
bearing
are
directly
used
as
the
inner
and
outer
rolling
surfaces
of
the
bearing
to
ensure
the
load
capacity
and
running
performance
Same
as
the
bearing
with
ring,
the
hardness,
machining
accuracy
and
surface
quality
of
the
raceway
surface
of
the
shaft
or
housing
hole
should
be
similar
to
the
raceway
of
the
bearing
ring.
This
kind
of
bearing
can
only
bear
radial
load.
