Portable
430-1200nm
ipl
beauty
equipment
e
light
ipl
hair
removal
with
FDA
CE
How
it
works?
IPL
(Intense
Pulsed
Light
)
is
a
non-invasive
skin
treatment
that
emits
powerful
bursts
of
light
energy
to
treat
unwanted
hair,
sun
damaged
skin,
and
wrinkles,
etc.
without
damaging
the
surface
of
your
skin.
IPL
systems
use
flash
lamps
to
emit
micro
pulses
of
light
across
a
broad
band
of
visible
wavelengths.
By
using
gentle
pulses
of
light
momentarily
to
create
heat,
IPL
can
permanently
disable
hair
follicles,
preventing
future
growth.
The
melanin
in
the
hair
(which
gives
its
colour)
absorbs
the
light,
which
is
then
converted
into
heat.
This
heat
is
transferred
to
the
growth
cells
surrounding
the
root
of
the
hair,
disabling
them.
Similarly,
IPL
also
achieves
excellent
long
term
results
when
treating
thread
veins,
skin
pigmentation,
acne
and
other
skin
complaints.
Technical
Specifications
|
Wavelength
(Spectrum)
|
530/640-1200nm
(standard)●430/480/560/590/690/750-1200nm
(optional)
|
|
Energy
Density
(Fluence)
|
1-50J/cm2
|
|
Spot
Size
|
12x33mm²
(standard)●15x35mm²;
15x50mm²
(optional)
|
|
Pulse
Repetition
Rate
|
0.2Hz;
2Hz
|
|
Pulse
Duration
|
0.5-15ms
|
|
Pulse
Delay
|
1-50ms
|
|
Pulses
|
1-10
pulses
|
|
IPL
Peak
Power
|
1200W
|
|
Cooling
|
Continuous
Crystal
contact
cooling
(-4℃~4℃
)
+
Air
cooling
+
Closed
water
circulation
cooling
|
|
Stand-by
Working
|
Continuously
for
12
hours
|
|
Display
|
7"
True
Color
LCD
Touch
Screen
|
|
Electrical
Requirements
|
100-240VAC,
20A
max.,
50/60Hz
|
|
Net
Weight
|
22
kgs
|
|
Dimensions
(WxDxH)
|
44*50*32cm
|
Unique
Advantages
1)
6
Treatment
programs,
12
languages
available
2)
3
Spot
Sizes
for
option
(12*33mm,15*35mm,15*50mm)
3)
"Plug
&
Play"
Technology
How
to
treatment
Start
with
a
low
fluence
(i.e.
25
J/cm
2
).
Do
a
test
shot
in
an
inconspicuous
area.
Evaluate
patient
response
then
gradually
increase
the
fluence
by
increments
of
3
J/cm
2
when
a
fluence
of
around
30
J/cm
2
is
achieved,
increase
by
increments
of
1
or
2
depending
on
patient’s
response.
We
strongly
recommend
that
for
the
1st
treatment,
the
fluency
level
be
set
initially
at
least
8
to
10
joules/sq
cm.
below
the
suggested
level
of
treatment
parameter
sheet.
Please
note
that
treatment
over
bony
areas
such
as
the
malar
area,
forehead
and
shins
produces
more
discomfort
so
reduce
the
fluence
by
2-3
joules.
When
treating
very
densely
pigmented
areas
reduce
fluence
by
2-3
joules.

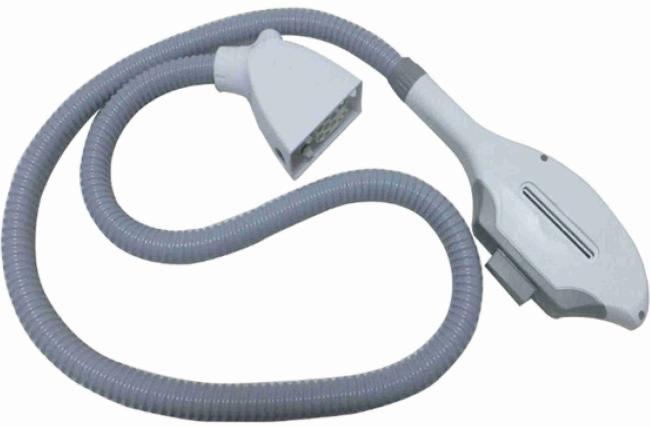

IPL
handle:
The
SHR
handle
consists
of
a
(1)
Cable
housing:
this
contains
the
power
cable,
liquid
coolant
tubing,
control
data
cable;
(2)
SHR
head:
this
houses
the
control
switch,
flash
lamp,
sapphire
crystal,filter
piece
and
electronic
semi-conductor
cooling
system.
Pressing
on
the
trigger
on
the
SHRtreatment
head
discharges
the
flash
lamp
at
the
settings
as
displayed
on
the
control
panel.
Pushing
down
the
foot
switch
like-wise
discharges
the
device
(on
selected
models
only).
The
supplied
sapphire
crystal
measures
12mm
x
30
mm
and
is
superior
in
both
clarity
and
longetivity,
thereby
increasing
both
the
efficiency
of
the
flash
lamp
and
lifespan
of
the
treatment
head.
It
is
very
important
to
keep
the
sapphire
crystal
clean.
Make
sure
to
clean
this
with
a
soft
cloth
after
each
treatment.
A
disinfectant
such
as
alcohol
can
be
used
between
treatments.
Dried
gel
on
the
crystal
filter
will
reduce
efficiency
of
the
flash
lamp.
Replace
the
plastic
guard
over
the
filter
to
prevent
damage.
In
the
event
that
the
sapphire
crystal
is
damaged
(i.e.
nicked
or
cracked)
contact
your
dealer
immediately.
