SS SSS PP Spunbonded Meltblown Non Woven Making Machine 2400mm 3200mm

Price	negotiable
MOQ	1 set
Delivery Time	For detailed talk
Brand	Chuzhou HH non-woven
Place of Origin	Chuzhou China
Certification	CE
Model Number	1.6ss 2.4ss 3.4ss 4.8ss
Packaging Details	wood box packaged , machine wrapping with PE film keep cargo safe
Payment Terms	L/C, T/T
Supply Ability	For detailed talk

Product Details

Product Specification

Effective Width	1.6 2.4 3.2 4.0 M	Place of Origin	Chuzhou China
advantage	high speed high capacity	Packaging Details	wood box packaged , machine wrapping with PE film keep cargo safe
Product	2600 SS beam spunbond nonwoven machine	Model Number	1.6ss 2.4ss 3.4ss 4.8ss
Raw material	PP polypropylene	Supply Ability	For detailed talk
Certification	CE	Brand Name	Chuzhou HH non-woven
Payment Terms	L/C, T/T	main Component	PLC , engine
Power consumption	650℃ - 800 ℃ / ton	Price	negotiable
Delivery Time	For detailed talk	Minimum Order Quantity	1 set
daily output	15 ton	Width	2400mm

Product Description

SS SSS 2400mm 3200mm PP Spunbonded meltblown Non Woven Fabric Making Machine

Generally speaking, S and SS can be distinguished by softness. S non-woven fabric is mainly used in the field of packaging,

SS non-woven fabric is mainly used for sanitary materials, so S machine is more inclined to use non-woven fabric in mechanical design

It is difficult to manufacture and SS machines prefer to make non-woven fabrics softer. But t through a special process,

S non-woven fabric feels softer than untreated SS fabric, suitable for sanitary materials; The SS can

After processing, it becomes harder and more suitable for packaging materials.

Another difference in latitude is distribution uniformity, which refers to the stability of weight per gram per square meter, but through

It's hard to tell with the naked eye.

In essence, the difference between S and SS cloth is the number of nozzles in the machine and the number of letters in the name

Table 1 Number of nozzles, so S one nozzle, SS two nozzles.

Product Application

1.Material:PP chip

2.Weight range:10-120g/m2

3.Fabric usage:Medical applicant,shopping bag,packing,operation suit,face mask,baby diaper.etc

Description of non-woven machine

A.General information for nonwoven machine

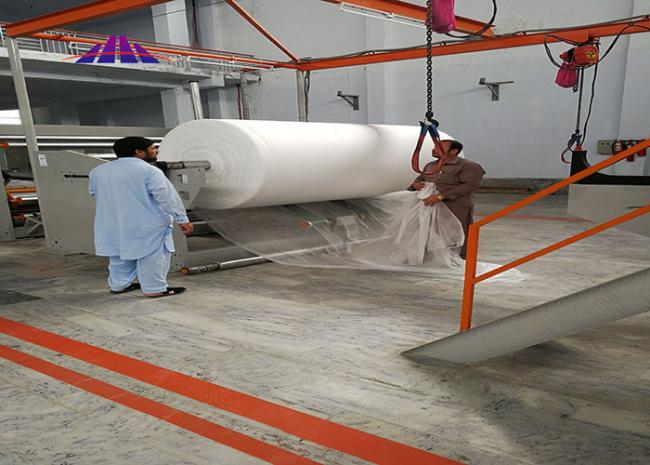

Image of non woven fabric making line

Product Paramenters

Model No.	HHM-SS
SS(Product width)	1600mm	2400mm	3200mm
Equipment Size	291310m	301410m	321510m
Speed	300m/min	300m/min	300m/min
Gram Weight	10-150g/㎡	10-150g/㎡	10-150g/㎡
Yield(according to 70g/m)	9-10T/Days	13-14T/Days	18-19T/Days

Port :Shanghai

Model	HHM-1.6SS
Width	1.6M
Weight per GSM	10-120g/m2
Product capacity per day	8 - 10.5 T
Machine speed	10-350 min
Transformer capacity	≧400KVA
Operating current	≈1100A
Air pressure	8-10BAR
Operating Voltage	AC380V±5%/50HZ
Size	451512m

S Model

Working width	Fabric	Power input	Consumption	Annual output/Year
1600mm	9-250G/㎡	≈200KVA	650º-700º/Ton	1800T
2400mm	9-250G/㎡	≈250KVA	650º-700º/Ton	2200T
3200mm	9-250G/㎡	≈315KVA	650º-700º/Ton	3300T
4000mm	9-250G/㎡	≈360KVA	650º-700º/Ton	4400T
4800mm	9-250G/㎡	≈400KVA	650º-700º/Ton	5100T

SS Model

Working width	Fabric	Power input	Consumption	Annual output/Year
1600mm	9-120G/㎡	≈400KVA	650º-800º/Ton	3700T
2400mm	9-120G/㎡	≈500KVA	650º-800º/Ton	5100T
3200mm	9-120G/㎡	≈800KVA	650º-800º/Ton	6600T
4000mm	9-120G/㎡	≈1000KVA	650º-800º/Ton	8800T
4800mm	9-120G/㎡	≈1200KVA	650º-800º/Ton	10000T

SSS Model

Working width	Fabric	Power input	Consumption	Annual output/Year
1600mm	9-100G/㎡	≈630KVA	650º-800º/Ton	5800T
2400mm	9-100G/㎡	≈1000KVA	650º-800º/Ton	7300T
3200mm	9-100G/㎡	≈1250KVA	650º-800º/Ton	10000T
4000mm	9-100G/㎡	≈1500KVA	650º-800º/Ton	12400T
4800mm	9-100G/㎡	≈1800KVA	650º-800º/Ton	14000T

M Model

Working width	Fabric	Power input	Consumption	Annual output/Year
1600mm	15-300G/㎡	≈600KVA	3000º-3500º/Ton	800T
2400mm	15-300G/㎡	≈800KVA	3000º-3500º/Ton	1100T
3200mm	15-300G/㎡	≈1000KVA	3000º-3500º/Ton	1500T

SMS Model

Working width	Fabric	Power input	Consumption	Annual output/Year
1600mm	9-100G/㎡	≈800KVA	1300º-1600º/Ton	3200T
2400mm	9-100G/㎡	≈1250KVA	1300º-1600º/Ton	5100T
3200mm	9-100G/㎡	≈1600KVA	1300º-1600º/Ton	7000T
4000mm	9-100G/㎡	≈2000KVA	1300º-1600º/Ton	8700T
4800mm	9-100G/㎡	≈2250KVA	1300º-1600º/Ton	10500T

SMMS Model

Working width	Fabric	Power input	Consumption	Annual output/Year
1600mm	9-100G/㎡	≈1500KVA	1700º-1900º/Ton	4000T
2400mm	9-100G/㎡	≈1600KVA	1700º-1900º/Ton	6200T
3200mm	9-100G/㎡	≈2200KVA	1700º-1900º/Ton	8400T
4000mm	9-100G/㎡	≈2500KVA	1700º-1900º/Ton	10500T
4800mm	9-100G/㎡	≈2630KVA	1700º-1900º/Ton	12700T

SMMMS Model

Working width	Fabric	Power input	Consumption	Annual output/Year
1600mm	9-80G/㎡	≈1600KVA	1700º-1900º/Ton	6200T
2400mm	9-80G/㎡	≈2000KVA	1700º-1900º/Ton	8000T
3200mm	9-80G/㎡	≈3000KVA	1700º-1900º/Ton	11000T
4200mm	9-80G/㎡	≈3500KVA	1700º-1900º/Ton	14000T
4800mm	9-80G/㎡	≈4000KVA	1700º-1900º/Ton	16000T

Major Characteristics:
1. The whole line is well-structured and easy to operate
2. The whole line highly automated
3. Control elements are of well-know make, high performance and reliable technologies
4. The whole line are controlled by PLC and operated with touch -scree.
5. The allocation of the main frame and auxiliary equipment can be special designed and configurated according to customer's requirements.

Production line characteristics:
Product width: 1600mm

Production capacity: 2200T/year(According to 60G/M2, 7800h per year) Main raw material PP

Product basis weight: 10~200G/M2

Production speed: 10~300m/min

Technological process of the production line:

Raw materialPellet feeding Melting and Extruding Filtration MeteringSpinningAir drawingWeb formingThermal calenderingstrainingRolling upCutting and packing

The TY OF DIE	Effective width	GSM	Annual capacity	Embossing pattern
1	1600mm	10-250GSM	1500T	Diamond, oval, cross , and line
1	2400mm	10-250GSM	2400T	Diamond, oval, cross , and line
1	3200mm	10-250GSM	3000T	Diamond, oval, cross , and line
SS	1600mm	10-250GSM	2400T	Diamond, oval, cross , and line
SS	2400mm	10-250GSM	4000T	Diamond, oval, cross , and line
SS	3200mm	10-250GSM	5000T	Diamond, oval, cross , and lin

Technical Parameters ( Standard Specification) of Our Nonwoven Machine
	Model No.	Gram Weight	MaxSpeed(m/min)	Capacity(T/Days)	Equipment Size
HH-S (single beam)	1.6m	9-250	150	4-6	18812m
	2.4m			5-7	181012m
	3.2m			8-10	181512m
HH-SS (single beam)	1.6m	10-120	350	8-10.5	451512m
	2.4m			10-15	451812m
	3.2m			13-20	452012m
HH-SSS (single beam)	1.6m	10-100	550	12-17	501512m
	2.4m			16-21	501812m
	3.2m			24-30	502012m

Description Of Non-woven Machine

1) Parts of spunbonded nonwoven fabric production line:
Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter

2) Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product

Main component

Name : Spinneret

Spinneret width : 256 mm

Hole size : 0.45 nmm

Hole Qty : 12350 - 24500 pcs

Material : SUS 431

Original : CHINA / GERMANY

Name upper / down drafting unit

Effective Width : 1600 / 2400 / 3200 mm

Filament fineness : 1.6 - 2.4 Denier

Original : CHINA

Name : Spinning beam

Model : 1600 / 2400 / 3200 mm

Heating System : Oil / Electricity Heating

Distribution Design :big hanger type

Original : CHINA

Name :Extrusion Machine

Model : ￠130 / 150 / 170

Heating System :electricity heating

Drive Motor : Siemens

Original : CHINA

Name production line control cabinet

Voltage:380 V / 3 phase

Touch Scren : Siemens

PLC :Siemens

Frequency :Siemens

Indicator :RKC , JAPAN

Original : China

Precisely CNC center

Exhibition show with customer

Packaging Details

Main machine parts will be packed with wooden cases.Electrical parts will be packed with plastic and then packed into wooden cases.For the steel structure they will be packed in bulk into containers.

Our Service

Pre-sale Service

Employees have a special sense of responsibility and excellent teamwork spirit, so the machine adopts unique and outstanding components, which meet the highest standards of the nonwoven industry.
With the support of modern technology, to provide all customers with the best solution machinery Claim.

After-sales Service

Our customer service can answer inquiries.
We only believe that: the best machine with innovative ideas and high-quality after-sales service: "will meet your special requirements."
