| Price | Negotiable |
| MOQ | Negotiable |
| Delivery Time | Negotiable |
| Brand | Chuzhou HH non-woven |
| Place of Origin | Chuzhou China |
| Certification | CE |
| Model Number | SMS SMMS SSMMS S SS SSS |
| Brand Name | Chuzhou HH non-woven | automic | fully automic |
| CE | provide | Place of Origin | Chuzhou China |
| original | China | advantage | 2022 new design |
| Service | dedicated engineer on line support or over sea | Model Number | SMS SMMS SSMMS S SS SSS |
| Raw material | 100 % polypropylene | Certification | CE |
| Name | Non Woven Fabric Making Line |

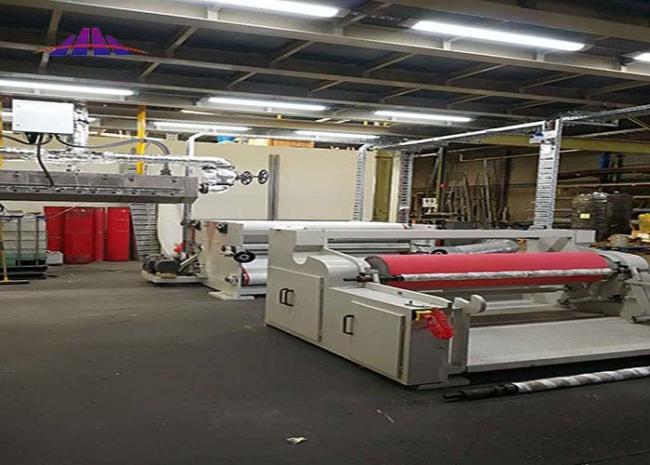

electric electret and water electret non woven fabric making line
Charged nonwovens made of fibers mainly composed of amorphous polymers provide a new type of filter material. Compared with traditional filter materials, its performance has been improved, and has excellent thermal and flame retardant properties and electrically modified nonwovens for filter materials. Preferably, the surface charge density is greater than or equal to 1 × The vacuum degree is Coulomb / cm2, the particle size of dust particles with collection efficiency is 1 um, the speed of flowing through the fabric is 8.6 cm / S is greater than or equal to 40%, and the value is greater than or equal to 0.05. After 24 hours at 100 ℃, the dust collection efficiency of dust particles decreases by no more than 10%.
| Machine Model | Reifenhauser Reicofil 3/4,Spunbond lines, spun-melt lins S, SS,SSS, SXS,SXXS,SMMS ,SMS ,SSMMS |
| Machine Size | 18m-60m(L)*10m-31m(W)*10m-12m(H) |
| Raw Material required |
PP(polypropylene),additives MFI/MFR:25-40g/10min(spunbonding process) MFI/MFR:800-2000g/10min (Melt-blowning process) |
| Effective width | 1600mm,2400mm,3200mm,4000mm,4800mm customizable width by requirements |
| Max Speed | 150m/mn-550m/min |
| Transformer&Power consumption |
Transformer require:200KVA-3000KVA Power consumption :500KWH/Ton-1400KWH/Ton |
| Output per year | 1500 Tons - 10000 Tons |
| Products GSM | 8gsm-250 gsm |
| Applications of products |
Industrial:Shopping bags, furniture ,agriculture ,packageing,etc Medical:Surgical gown /cap /sheet /mask ,etc Hygiene: Diapers ,sanitary ,napking , etc. |
| Technical Parameters ( Standard Specification) of Our Nonwoven Machine | |||||
| Model No. | Gram Weight | MaxSpeed(m/min) | Capacity(T/Days) | Equipment Size | |
|
HH-S (single beam) |
1.6m | 9-250 | 150 | 4-6 | 18*8*12m |
| 2.4m | 5-7 | 18*10*12m | |||
| 3.2m | 8-10 | 18*15*12m | |||
|
HH-SS (single beam) |
1.6m | 10-120 | 350 | 8-10.5 | 45*15*12m |
| 2.4m | 10-15 | 45*18*12m | |||
| 3.2m | 13-20 | 45*20*12m | |||
|
HH-SSS (single beam) |
1.6m | 10-100 | 550 | 12-17 | 50*15*12m |
| 2.4m | 16-21 | 50*18*12m | |||
| 3.2m | 24-30 | 50*20*12m | |||
SMMMS Model
| Working width | Fabric | Power input | Consumption | Annual output/Year |
| 1600mm | 9-80G/㎡ | ≈1600KVA | 1700º-1900º/Ton | 6200T |
| 2400mm | 9-80G/㎡ | ≈2000KVA | 1700º-1900º/Ton | 8000T |
| 3200mm | 9-80G/㎡ | ≈3000KVA | 1700º-1900º/Ton | 11000T |
| 4200mm | 9-80G/㎡ | ≈3500KVA | 1700º-1900º/Ton | 14000T |
| 4800mm | 9-80G/㎡ | ≈4000KVA | 1700º-1900º/Ton | 16000T |
1.Description Of Non-woven Machine
1)
Parts
of
spunbonded
nonwoven
fabric
production
line:
Recycle
extruder---->Main
extruder---->Filter---->Metering
pump---->Monomer
suction
device--->Spinning
box(ENKA/KASEN
spinneret)---->
Quenching
air
chamber---->Stretching
device---->Web
former---->Calender---->Winder---->Slitter
2)
Spunbonded
process
and
technical
flow
chart:
Additive(Recycling
off-cut
fabric)---->Raw
material---->
Melting---->Filtering---->Measuring
---->Spinning---->Cooling---->Stretching---->
Web
forming---->Calendering---->Winding---->
Cutting---->Final
product
Precisely CNC machining
Exhibition show
Packaging Details
Main machine parts will be packed with wooden cases.Electrical parts will be packed with plastic and then packed into wooden cases.For the steel structure they will be packed in bulk into containers.
Our Service
Pre-sale Service
Employees have a special sense of responsibility and excellent teamwork spirit, so the machine adopts unique and outstanding components, which meet the highest standards of the nonwoven industry.
With the support of modern technology, to provide all customers with the best solution machinery Claim.
After-sales Service
Our customer service can answer inquiries.
We only believe that: the best machine with innovative ideas and high-quality after-sales service: "will meet your special requirements."
