2.4M 180KW Single Beam Non Woven Fabric Making Line Anti Pull Anti UV

Price	negotiable
MOQ	1 set
Delivery Time	For detailed talk
Brand	Chuzhou HH non-woven
Place of Origin	Chuzhou China
Certification	CE
Model Number	HHM - 2400 S
Packaging Details	wooden box packaged , machine wrapping with PE film keep cargo safe
Supply Ability	For detailed talk

Product Details

Product Specification

Effective Width	2400 mm	Gsm	9 - 250 g
Place of Origin	Chuzhou China	Warranty	one year
Size	18 *10 12 m	Packaging Details	wooden box packaged , machine wrapping with PE film keep cargo safe
Product	single 2.4 m beam Non Woven Fabric Making Line	Model Number	HHM - 2400 S
Supply Ability	For detailed talk	Certification	CE
Brand Name	Chuzhou HH non-woven	Power consumption	650℃ - 700 ℃ / ton
Price	negotiable	Delivery Time	For detailed talk
Minimum Order Quantity	1 set	annual output	2200 Ton
Max speed	150 m / min

Product Description

PP Spunbond Non Woven Fabric Bag anti-pull anti UV Non Woven Fabric Making Line

PP Spunbond Non Woven Fabric Making Machine

Non woven fabric manufacturing machine

Our company specializes in the production equipment of non-woven fabric and polypropylene non-woven fabric production line with width of 1.6m/2.4m/3.2m. The product takes polypropylene as raw material and goes through continuous production processes such as high-temperature melting, spinning into mesh, hot rolling bonding, cutting and winding.

Non woven fabric manufacturing machine

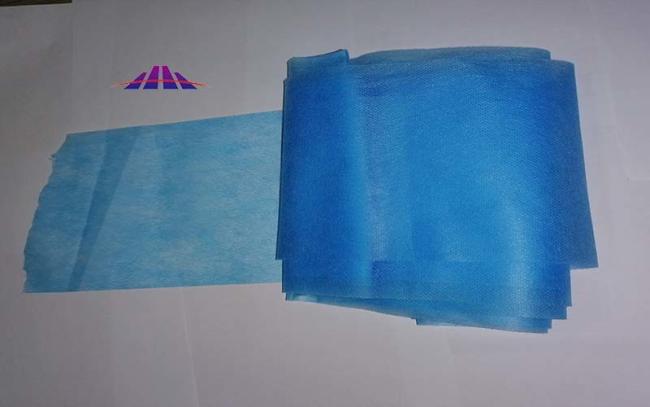

1. Weight: 10-260 g / m2.

2. Width: 1.6-3.2m.

3. Color: according to the version color produced by the customer.

4. Provide five non-woven products: dot pattern, cross pattern, Canberra pattern, mouth pattern, small dot pattern, triangle pattern and plastic film.

Non woven machine features:

(1) High strength, small difference between vertical and horizontal, strong strength;

(2) Acidic, non-toxic, no radiation, harmless to human physiology;

(3) Excellent air permeability;

(4) Masterbatch dyeing never fades.

2400 S Model

Effective Width	2400mm
Weight Range	9 - 250 g / ㎡
Out put daily	8 - 10 ton
Machine speed	≦ 150 m / min
Transformer	≈ 250 KVA
Power Consumption	650º - 700 º / Ton

S Model (Packaging , Agricultural Cover )

Working width	Fabric	Consumption	Annual output/Year
1600mm	9-250G/㎡	130KW	1800T
2400mm	9-250G/㎡	180KW	2200T
3200mm	9-250G/㎡	200KW	3300T
4000mm	9-250G/㎡	300KW	4400T
4800mm	9-250G/㎡	400KW	5100T

Model	Effective Width	Weight Range	Output per day	Machine speed	Tranformer	Power consumption	Machine Size
HHM-1.6S	1.6M	9-250G/M2	4-6Ton	≦150m/min	≈200KVA	650º-700º/Ton	18M8M12M
HHM-2.4S	2.4M	9-250G/M2	5-7Ton	≦150m/min	≈250KVA	650º-700º/Ton	18M10M12M
HHM-3.2S	3.2M	9-250G/M2	8-10Ton	≦150m/min	≈315KVA	650º-700º/Ton	18M15M12M
HHM-4.0S	4.0M	9-250G/M2	11-13Ton	≦150m/min	≈360KVA	650º-700º/Ton	18M18M12M
HHM-4.8S	4.8M	9-250G/M2	12-15Ton	≦150m/min	≈400KVA	650º-700º/Ton	18M22M12M

procees flow

Feeding(suction, dosing, and mixing) → Melt and extruding(with recycling extruder) → Filtering → Metering → Spinning → Quenching → Air drawing → Forming → Calendering → Winding → Slitting → Product.

Spunbond nonwoven production line componests:

Edge material screw and recovery device →Screw extruder → Filter → Measureing pump → Monomer suction device → spinning box ( Enka / Carson Spinneret ) → Cooling air box → stretching device → Netting machine → hot rolling mill → winding machine → slitting Machine .

Flow chart of spunbond production process .

Additives (recycling of scraps )→ Raw material → Melt extrusion → Filtration → Measurement → Spinning → cooling → Stretching → Netting → hot Rolling → Rewinding → Slitting → Finished Product

Main parts introduce

working process

CNC Center keep machinery parts precisely beyond customer request

Exhibition show

.Packaging & Delivery

Packaging Details
Nude packing , wooden case is optional.
case packing:Carding machine, lapper and electric boxes wooden case packaged.
Other machines nude packaging.
