| Price | For detailed talk |
| MOQ | 1 set |
| Delivery Time | For detailed talk |
| Brand | Chuzhou HH non-woven |
| Place of Origin | Chuzhou China |
| Certification | CE |
| Model Number | ssmms |
| Packaging Details | wood box packaged , machine wrapping with PE film keep cargo safe |
| Supply Ability | For detailed talk |
| Oroginal | China | Place of Origin | Chuzhou China |
| Packaging Details | wood box packaged , machine wrapping with PE film keep cargo safe | Product Name | 2400 Meltblown Fabric Production Line |
| production capacity | 23 T daily output | Service | dedicated engineer on line support |
| Model Number | ssmms | Supply Ability | For detailed talk |
| Certification | CE | Brand Name | Chuzhou HH non-woven |
| Price | For detailed talk | Delivery Time | For detailed talk |
| Minimum Order Quantity | 1 set | Model | 2400 HHM ssmms |
| warranty | one year | Package | wooden box |
| Power | 2000 KVA |
cost-efficient composite fabric SSMMS Non Woven Production Line Meltblown Fabric Production
2400 SMMSS Model
| Effective Width | 1600mm |
| Weight Range | 9 - 80 g / ㎡ |
| Out put daily | 17 - 23 ton |
| Machine speed | ≦ 600 m / min |
| Transformer | ≈ 2000 KVA |
| Power Consumption | 1700º - 1900 º / Ton |
| Machine Size | 60 * 23 * 12 M |
| HHM-SSMMS Five-Beam spunmelt nonwoven fabric making machine/line | |||||
|
Effective Width(mm) |
Raw Materials |
Max.Speed (Tons/year) |
GSM Range (g/sq.m) |
Daily Capacity (Tons/Day) |
Annual Capacity (Tons/year) |
| 2400 |
Polypropylene(PP) |
600 | 9-80 | 23 | 8400 |
| 3200 | 31 | 11400 | |||
| 4800 | 40 | 14600 | |||
| The whole line can CUSOMIZED as your needs . | |||||

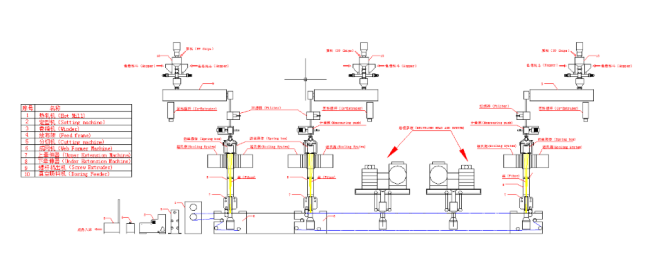

Parts of spunbonded nonwoven fabric production line:
Recycle extrude→Main extruder→Filter→Metering pump→Monomer suction device→spinning box( Changzhou/ENKA/KASEN spinneret )→Quenching air chamber→stretching device→Web former→Calender→Winder→Slitter
Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)→Raw material→Melting→Filtering→Measuring→Spinning→Cooling→Stretching→Web forming→Calendering→Winding→Cutting→Final product
Parts of Melt blown nonwoven fabric production line:
Main extruder→filter→Metering pump→Air heating system→Melt blown sprayer (ENKA sprayer)→Web former→Winder→Slitter
Melt blown process and technical flow chart:
Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product
Key component
Maximum temperature
300 ℃
Max. Output
200 kg / h
Heating zone
8 tod
Perforated length
3,350 mm
HPI
40
Number of holes
5,276
1 Set L/D
10
Capillary diameter
0.3mm
Capillary length
3,600mm
Brand:HHM
Aperture (1pc)
90 300 kg / h
The screw L/D of the main extruder
30:1
The screw L/D of the ancillary extruder
15:1

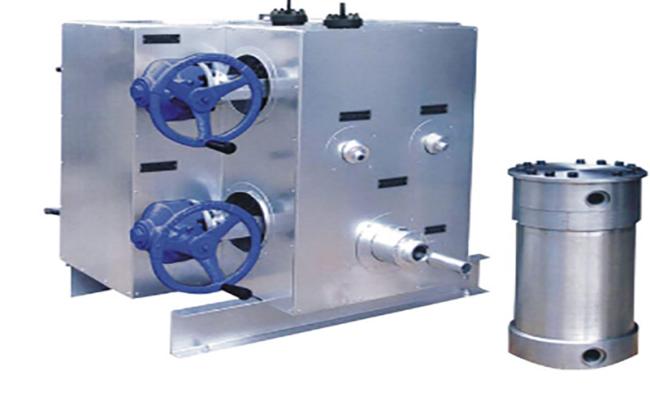

Name:Filter
Brand:HHM
Original:
China
Type:
Hydraulic
or
Candle
filter
Filter precision: 45μm~60μm
Fitration area: 2.5 m2for 1.6m,3.5 m2 for 3.2m
Heat source : heat-transfer oil , circular heating

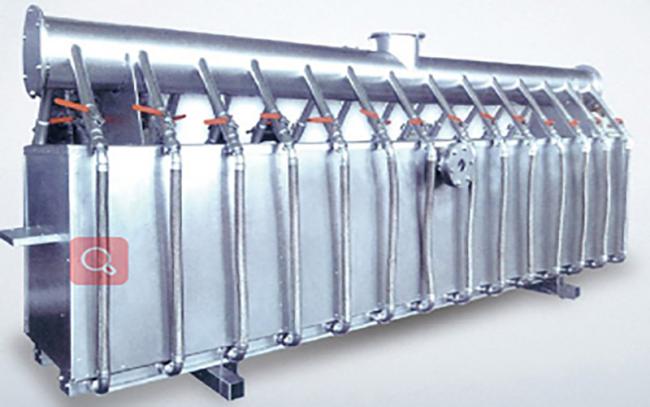

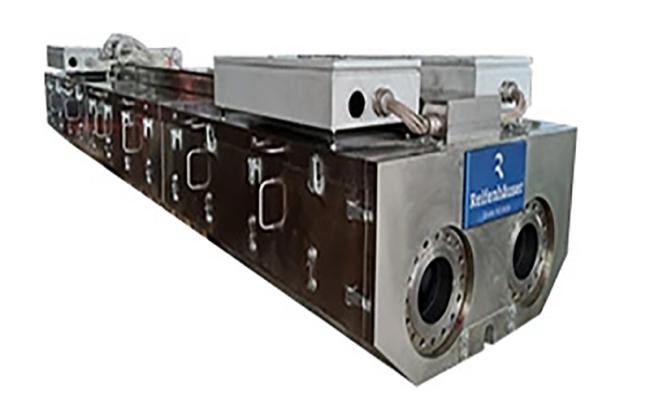

Name: Spinning Box
Orifice number:11019 for 1.6m , 17651 for 3.2m
Orifice diameter:Φ0.45mm
L/D=4:1
Max temperature:300℃
Fuction : for spining the PP flament.

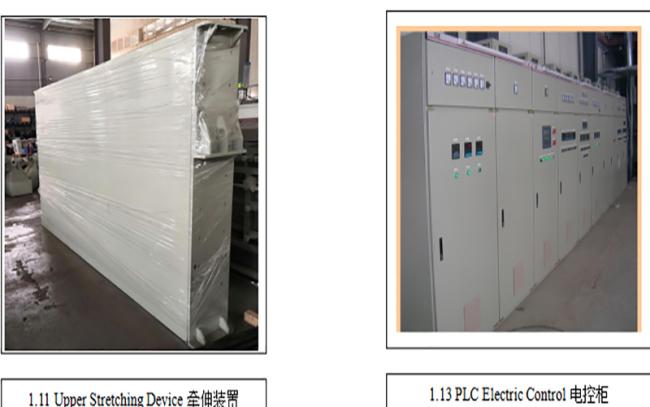

Draft divice , including up draft and down draft .spinning allows the thread to reach the right thickness through preciss drafting devices.
Advanced CNC center

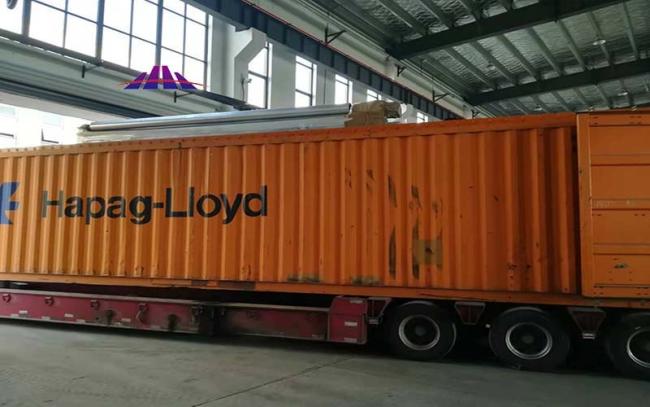

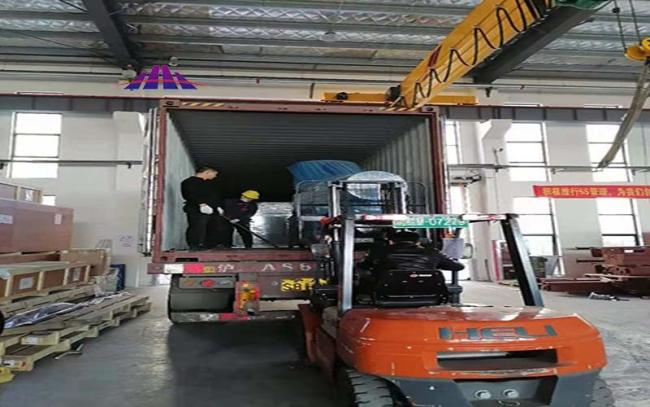

Package and shipment
FAQ
A .Do you offer installing service?
Sure.
We
will
despatch
our
technical
workers
to
oversea
sites
to
instruct
and
help
install
the
machines,
meantime
to
train
the
workers
of
customer
until
they
can
produce
fabric
by
themselves.
B
.What
is
your
warranty?
We offer 1-2 years warranty upon the different parts.
C .How long is your delivery time?
Generally the production time needs 3-6 months upon condition. We will confirm you the exact time when you place order.
D .Are you factory or trading company? and where is your factory located, how can I visit it?
We are factory with export rights. We manufacture machines and export to customers by ourself. Our factory is located in Chuzhou City, Anhui Province, which is famous for making non-woven fabric machinery. You can take a plane to Nanjing / Shanghai Airport, or take a high-speed train to Chuzhou Station, we will pick you up.
E Why would i choose your product?
1.Quality
Control
in
whole
process,
provide
individual
high
cost-effective
nonwoven
lines,
helping
customer
cost
saving.
2.Focus
on
non
woven
equipment
research
and
development
in
14
years.
Install
and
running
more
than
200
lines
all
over
the
world
3.Over
20
person
team
for
machine
after
sales
service.Ensure
the
customers
can
get
quickly
and
professional
installation
and
debugged
in
time.
