| Payment Terms | L/C, T/T | Machine Name | Non Woven Fabric Making Machine 3200 s |
| application | shopping bags , agriculture , face mask ,..etc | core component | PLC ,gear box , spinning die , spinning beam .. |
| Price | 1000000$/set | Delivery Time | For detailed talk |
| Minimum Order Quantity | 1 | Filament Denier | Spunbond :1.5-2.5D Meltblown :1.6-4 um |
| warranty | one year free warranty and long time service | Width | 3200 |
| Machine size | 18 M *15M *12 M | Certificate | CE |
textile
shopping
bags
Automatic
PP
single
beam
Non
Woven
Fabric
Making
Machine
HHM S Single beam fabric making line date
| Effective width(mm) | 1600 | 2400 | 3200 | 4000 | 4800 |
| Output(ton/year) | 1800T | 2200T | 3300T | 4400T | 5100T |
| GMS Range(g/㎡) | 9-250 | 9-250 | 9-250 | 9-250 | 9-250 |
| Max.speed(m/min) | 150 | 150 | 150 | 150 | 150 |
| Technical Parameters ( Standard Specification) of Our Nonwoven Machine | |||||
| Model No. | Gram Weight | MaxSpeed(m/min) | Capacity(T/Days) | Equipment Size | |
|
HH-S (single beam) |
1.6m | 9-250 | 150 | 4-6 | 18*8*12m |
| 2.4m | 5-7 | 18*10*12m | |||
| 3.2m | 8-10 | 18*15*12m | |||
|
HH-SS (single beam) |
1.6m | 10-120 | 350 | 8-10.5 | 45*15*12m |
| 2.4m | 10-15 | 45*18*12m | |||
| 3.2m | 13-20 | 45*20*12m | |||
|
HH-SSS (single beam) |
1.6m | 10-100 | 550 | 12-17 | 50*15*12m |
| 2.4m | 16-21 | 50*18*12m | |||
| 3.2m | 24-30 | 50*20*12m | |||
| Effective width(mm) | 1600 | 2400 | 3200 | 4000 | 4800 |
| Output(ton/year) | 3200T | 5100T | 7000T | 8700T | 10500T |
| GMS Range(g/㎡) | 9-100 | 9-100 | 9-100 | 9-100 | 9-100 |
| Max.speed(m/min) | 350 | 350 | 350 | 350 | 350 |
With
a
spinneret
of
0.45mm
hole
diameter
,
the
viscous
polymer
solution
is
transformed
into
a
trickle
with
a
specific
cross-section
through
the
micro
pores,
and
solidified
by
the
coagulation
medium
to
form
filaments
Stretching
Unit
The
stretching
device
including
up
stretching
and
down
stretching
unit,
the
function
is
drawing
spinning,
flaments
into
web
forming
by
air.
1.Efficiently
strentching
with
less
energy
consumption.
2.Evenly
spinning
filaments
with
less
difference
3.Closed
system
with
easy
concrol
S
Model
| Effective width(mm) | 1600 | 2400 | 3200 | 4000 | 4800 |
| Output(ton/year) | 1800T | 2200T | 3300T | 4400T | 5100T |
| GMS Range(g/㎡) | 9-250 | 9-250 | 9-250 | 9-250 | 9-250 |
| Max.speed(m/min) | 150 | 150 | 150 | 150 | 150 |
Spunbond
making
line
cataloge
| Model | Effective Width | Weight Range | Output per day | Machine speed | Tranformer | Power consumption | Machine Size |
| HHM-1.6S | 1.6M | 9-250G/M2 | 4-6Ton | ≦150m/min | ≈200KVA | 650º-700º/Ton | 18M*8M*12M |
| HHM-2.4S | 2.4M | 9-250G/M2 | 5-7Ton | ≦150m/min | ≈250KVA | 650º-700º/Ton | 18M*10M*12M |
| HHM-3.2S | 3.2M | 9-250G/M2 | 8-10Ton | ≦150m/min | ≈315KVA | 650º-700º/Ton | 18M*15M*12M |
| HHM-4.0S | 4.0M | 9-250G/M2 | 11-13Ton | ≦150m/min | ≈360KVA | 650º-700º/Ton | 18M*18M*12M |
| HHM-4.8S | 4.8M | 9-250G/M2 | 12-15Ton | ≦150m/min | ≈400KVA | 650º-700º/Ton | 18M*22M*12M |
Detailed Images
Name: Material Auto-Feeder
Brand:HHM
Original:China
Feeding capacity: 500kg/h for 1.6m , 800kg/h for 3.2m
Delivering distance:12m
Material:stainless steel
Fuction: Automatic sucking the PP materils to the non woven fabric making machine
Name:Main
Extruder
Brand:HHM
Original:China
Diameter:Φ135mm
for
1.6m,Φ170mm
for
3.2m,
Max speed: 75r/min for 1.6m , 85r/min for 3.2m
Motor:90kw for 1.6m , 132kw for 3.2m
Fuction: Automatic heat , melt and extrude the PP materials

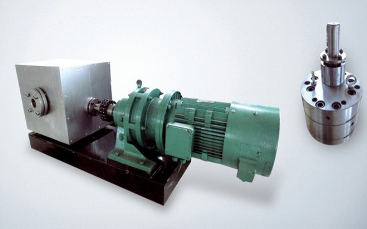

Name:Metering
Pump
Brand:HHM
Original:China
Supply
volume:200cc
for
1.6m,
200ccx2
for
3.2m
Rotate speed:5~35r/min
Max Pressure:35MPa
Temperature:≤330℃
Fuction: meter PP melt liquid
Name:Main
Extruder
Brand:HHM
Original:China
Diameter:Φ135mm
for
1.6m,Φ170mm
for
3.2m,
Max speed: 75r/min for 1.6m , 85r/min for 3.2m
Motor:90kw for 1.6m , 132kw for 3.2m
Fuction: Automatic heat , melt and extrude the PP materials

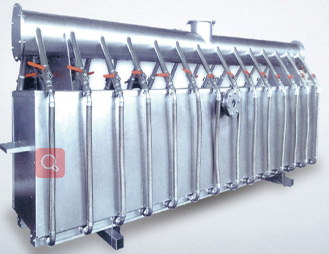

ame: Spinning Box
Orifice number:11019 for 1.6m , 17651 for 3.2m
Orifice diameter:Φ0.45mm
L/D=4:1
Max temperature:300℃
Fuction : for spining the PP flament.
Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product
Process
diagram:
This
is
the
process
flow
chart
of
spunbonded
non-woven
fabric
line.
The
whole
assembly
line
has
clear
structure
and
perfect
function.
The
role
and
function
of
each
link
are
clearly
visible.
Advannced
CNC
Tools
Nonwoven
line
in
job
side

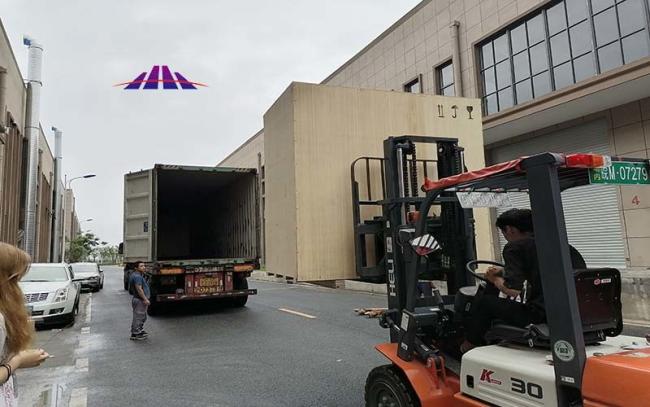

Packing and shipping
