| Price | Price negotiations |
| MOQ | 1PCS |
| Delivery Time | 20 work days |
| Model Number | RD520 |
| Packaging Details | wooden box package |
| Payment Terms | T/T |
| Supply Ability | 1+PCS+20 work days |
| Kinetic power | 20 kW | Hole diameter range | 43 - 64 mm |
| Packaging Details | wooden box package | Rotation motor type | OMS 80, OMS 125 or OMS 160 |
| Model Number | RD520 | Supply Ability | 1+PCS+20 work days |
| Rotation | 100 - 220 bar | Brand Name | |
| Payment Terms | T/T | Price | Price negotiations |
| Delivery Time | 20 work days | Stabilizer | Sleeve type |
| Minimum Order Quantity | 1PCS | Percussion rate | 75 Hz |

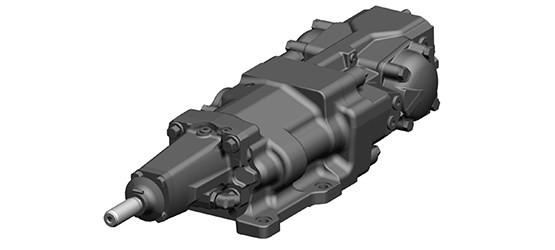

RD520 hydraulic rock drill is suitable for mining development and excavation of large mines
Product feature of Rock Drills
RD520 hydraulic rock drill is designed for face drilling on mine development and tunneling jumbos. It is also suitable for bolt hole, exploration and injection hole drilling.
RD520 is a hydraulic percussive rock drill with independent reversible rotation and low profile height. Known for its hydraulic efficiency and high penetration rate, RD520 has excellent serviceability through modular construction and visual wear indicators.
Robustness is achieved by having only few pressurized seams between functional modules. The rock drill is equipped with a stabilizer to control contact between the drill bit and rock. The stabilizer also dampens recoil impulses from rock and lengthens the lifetime of drilling tools.
Product data of Rock Drills
| Technical data | |
| Hole diameter range | 43 - 64 mm |
| Hole diameter reaming | 76 - 127 mm |
| Power class | 20 kW |
| Percussion rate | 75 Hz |
|
Operating
pressure Percussion |
120 - 220 bar |
| Rotation motor type | OMS 80, OMS 125 or OMS 160 |
| Drill steels | R39 or Hex35 mm drifter rods, MF-rods highly recommended |
| Shanks |
T35
(male) T38 (male) T45 (male) |
| Weight | 225 kg |
