| Price | Price negotiations |
| MOQ | 1PCS |
| Delivery Time | 20 work day |
| Brand | HZJX |
| Place of Origin | China |
| Model Number | COP1238 |
| Packaging Details | carton packing |
| Payment Terms | T/T |
| Supply Ability | 1+PCS+20 woek days |
| Place of Origin | China | Processing Type | Forging |
| Machine Type | Drilling Tool/Hydraulic part | Use | Well Drilling |
| Packaging Details | carton packing | Material | Carbon Steel |
| Model Number | COP1238 | Supply Ability | 1+PCS+20 woek days |
| Brand Name | HZJX | Payment Terms | T/T |
| Type | Impact piston | Applicable Industries | Manufacturing Plant, Construction works , Energy & Mining, quarrying |
| Price | Price negotiations | Delivery Time | 20 work day |
| Minimum Order Quantity | 1PCS |

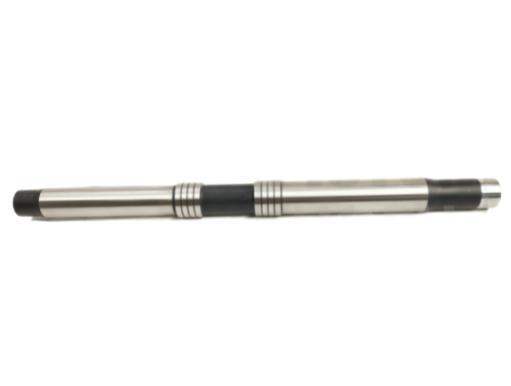

Impact piston Hydraulic part 575mm for Atlas copco COP1238
Product Application of Impact piston
HZJX mainly produces rock-drilling tools for mining ,constriction ,tunneling ,quarrying and related industrials .We can special design and manufacture according to clients inquiry is available .
|
SPECIFICATION FOR IMPACT PISTON COP1238
|
|||
|
Type
|
Cop1238-575
|
||
|
Material
|
Carbon steel
|
||
|
Length
|
575mm
|
||
|
Application
|
Bench drilling,Construction,open-pit Mining,Quarrying
|
||
|
Processing
|
CNC and proprietary heat treatment process
|
||
|
Package
|
Packed into wooden boxes
|
||
|
Delivery
|
After receiving prepayment,delivery within 18 working days.
|
||
|
QC (Quality Control)
|
Cooperate with material experts in Guizhou University and we have a unique inspection process and formulate a perfect QC system. / ISO9001
|
||
The percussion piston is a key component of the hydraulic rock drill. Impact piston design directly affect the rock drill performance and service life. Rock upon impact, the direct impact of the piston stem adapter, the energy transmitted to the rock drill through the drill pipe and threaded.
Designed of impact piston
1 .
The shape is long and thin, reducing unnecessary cross-sectional changes. This is more conducive to the propagation of the stress wave of the impact piston, reduces the peak value of the stress wave, increases the propagation time of the shock wave, and improves the energy transfer efficiency.
2 .
In the design of the impact head of the impact piston, it is designed to be equal to or close to the area of the handle adapter to obtain a small amplitude and stable shock wave, which is more conducive to smooth transmission.
3 .
The design of the piston end face is as close as possible to the centerline of the impact surface shank adapter, ensuring the lowest center offset and the impact of close contact with the surface, which is more conducive to improving the impact of the energy transfer efficiency of the piston. Avoiding additional stress in the drill pipe during drilling and thread produced by the drill bit.
