DC 36V 5.5A 60mm Speed Gate Turnstile Motor 200W

Price	Negotiable
MOQ	2pcs
Delivery Time	10-15days after payment
Brand	JIAYU
Place of Origin	China
Certification	CE
Model Number	EBS60F-200B-30CP4Z-B7BT-S0-00+JYPNE60-50-F-B3-02
Packaging Details	pakeage
Payment Terms	TT
Supply Ability	500pcs per month

Product Details

Product Specification

Usage	swing gate turnstile servo motor	Torque	20.8Nm
Place of Origin	China	Packaging Details	pakeage
Encorder	1000	Model Number	EBS60F-200B-30CP4Z-B7BT-S0-00+JYPNE60-50-F-B3-02
Supply Ability	500pcs per month	Certification	CE
Rated Voltage	DC 36V	Brand Name	JIAYU
Payment Terms	TT	Speed(RPM)	75RPM
Type	SERVO MOTOR	Price	Negotiable
Delivery Time	10-15days after payment	Continuous Current(A)	5.5A
Minimum Order Quantity	2pcs	Rated Power	200W

Product Description

Speed Gate Motors DC 36V 60mm 200W servo motor for speed gate turnstile

Products description

swing barriers servo motor with gearbox high torque series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 1000 lines encoder, suitable for indoor and outdoor situation, easy to install, and the bldc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.

Application

① Airports

② Ports

③ Railway station

④ Subway station

⑤ Bus station

⑥ Commercial building

⑦ Residential communities

⑧ School

⑨ Expressway station

Features

Super over-load capacity, overload 3 times in a short time without damage
No need induction switch, power on automatic reset, can accurately set the closing position
Convenient maintenance, with computer software, can quickly and intuitively modify and debug parameters
High reliability, temperature -20℃ ~ 55℃, humidity below 90% environment can also operate freely
With RS232, RS485 communication interface.

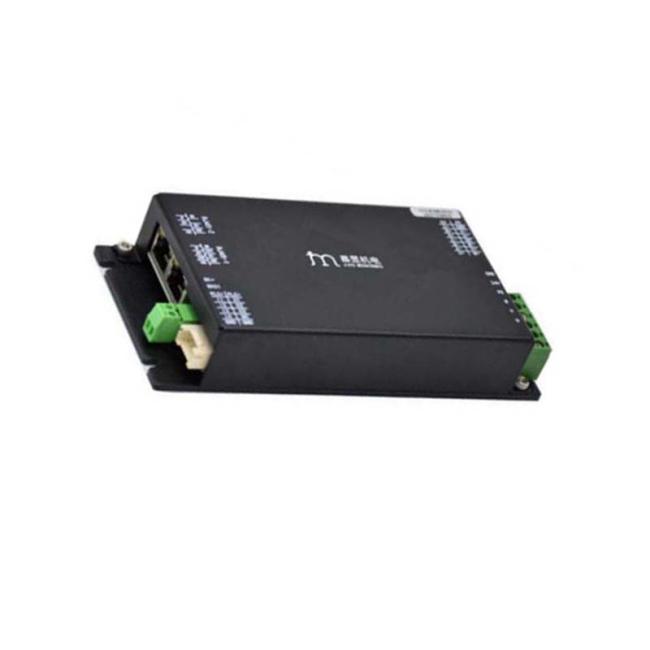

Integrated traffic logic + motor drive function, using servo control algorithm, open and close fastly and smoothly, accurately positioning;opening and closing the door without shaking

Specification

Brand Name	JIAYU
Model Number	EBS60F-200B-30CC4N-B7CT-ST-01(1:40)
Certification	ce
Type	SERVO MOTOR
Construction	Permanent Magnet
Protect Feature	Drip-proof
Speed(RPM)	75RPM
Continuous Current(A)	5.5A
Efficiency	IE 2
Rated Voltage	DC 36V
Rated Torque	20.8Nm
Rated Power	200W
Encorder	1000
Poles	8
Rated Current	5.5A
Rated Speed	75RPM
Gear Ratio	1:40
Product Name	Servo Motor
Application	Access gate

Dimension

Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

The company's technology stems from mature domestic and foreign technology transfer and independent research and development. The products are localized and the core technology is independently controllable. The company introduced advanced control technology and manufacturing technology from Germany and Switzerland, and has an experienced R&D and manufacturing team. In the application field of security gate control gate equipment, it has realized infrared and light curtains. The industry's logic and control technology for the gate movement module, the self-developed and manufactured electronic control module for pedestrian passage gates and vehicle barrier gates have covered customers in various industries such as high-speed rail stations, subway stations, airports, ports, highways, etc. group.

Since its establishment, our company has won the recognition and support of our customers by virtue of "excellent quality, honest service". Now the factory covers an area of more than 2,000 square meters and has passed the ISO9001:2015 quality management system certification. In the channel gate equipment industry, tens of thousands of electronic control products developed and manufactured by Jiayu Mechatronic Co., Ltd. have been shipped on supporting customers' complete equipment, which are spread all over the country, as well as overseas regions such as Europe, Middle East, and Southeast Asia. The field has contributed a lot.

In the future, the company will focus more on the improvement of product performance and quality, and continue to build the top brand of electronic control of channel gates.
