| Price | Negotiable |
| MOQ | Negotiable |
| Delivery Time | 3 days, depend on the order quantity |
| Brand | VEIKONG |
| Place of Origin | China |
| Certification | CE |
| Model Number | 200kw Bypass Soft Starter |
| Packaging Details | Carton and Wooden Box |
| Payment Terms | MoneyGram,Western Union,T/T,D/P,D/A,L/C |
| Supply Ability | 15000pcs per Month |
| Place of Origin | China | Highlight | 400kw Motor Soft Starter, 400kw intelligent motor starters, 500kw Bypass Soft Starter |
| Output Power | 5.5KW - 500KW | Packaging Details | Carton and Wooden Box |
| Color | Dark Blue | Model Number | 200kw Bypass Soft Starter |
| Supply Ability | 15000pcs per Month | Bypass Contactor | Support |
| Certification | CE | Weight | As Per Unit |
| Brand Name | VEIKONG | Payment Terms | MoneyGram,Western Union,T/T,D/P,D/A,L/C |
| Type | Bypass Type,Starting Motor | Delivery Time | 3 days, depend on the order quantity |
| OEM | Support | Output Voltage | 0-380V |
| Output Frequency | 50/60Hz |
Soft Starters with Integrated Bypass (5.5-500 kW) for Crushers and Pumps
Product feature

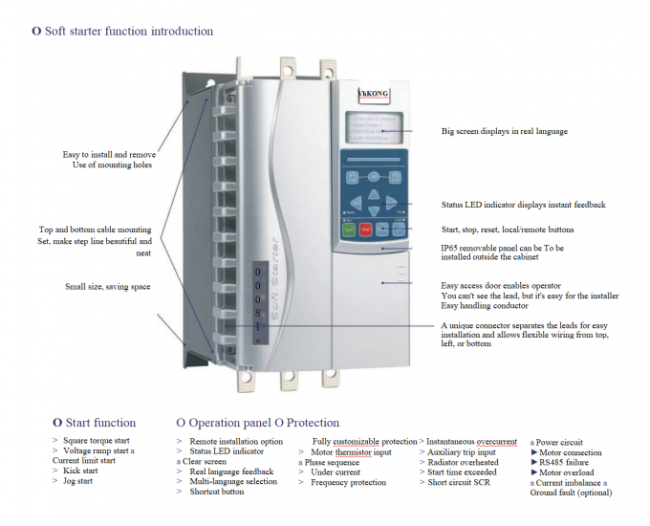

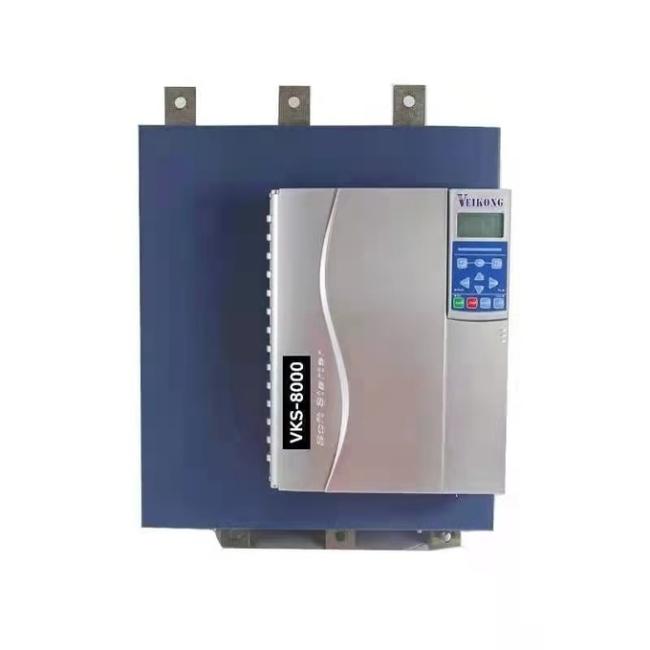

VKS-8000 is a highly intelligent, very reliable and easy to use soft starter. The newly designed functions of VKS-8000 are used for quick setting or more personalized control.
It's a perfect solution. Its performance includes:
Large LCD screen that can display feedback information in Chinese and English languages, other languages can be customized.
Remotely installable operation panel.
Intuitive programming.
Advanced start and stop control functions.
A series of motor protection functions.
Extensive performance monitoring and event logging.
Technical Specification
| Item | Description | ||
| Input Power Supply | Input Voltage | Three-phase 380V/480V/660 AC | |
| Frequency | 50/60Hz | ||
| Adaptive Motor | Squirrel-cage three-phase asynchronous motor | ||
| Starting Times | It is recommended not to exceed 20 times per hour. | ||
|
Control Mode |
(1) Operation panel control. (2) Operation panel + external control. (3) External control. (4) External control + COM control. (5) Operation panel + external + COM control. (6) Operation panel + COM control. (7) COM control. (8) No start or stop operation. |
||
|
Start Mode |
(1) Current-limiting to start. (2) Voltage ramp to start. (3) Torque control + current-limiting to start. (4) Torque control + voltage ramp to start. (5) Current ramp to start. (6) Voltage current-limiting double closed-loop start. |
||
| Stop Mode |
(1) Soft stop. (2) Free stop. |
||
|
Protective Function |
(1) Open loop protection for external instantaneous stop terminals. (2) Over-heat protection for soft starter. (3) Protection for too long starting time. (4) Input open phase protection. (5) Output open phase protection. (6) Unbalanced three-phase protection. (7) starting over current protection. (8) Running overload protection. (9) Under voltage protection for power voltage. (10) Overvoltage protection for power voltage. (11) Protection for fault parameter setting. (12) Load short circuit protection. (13) Auto restart or incorrect wiring protection. (14) Incorrect wiring protection of external control stop terminals. |
||
|
Ambient |
Place to be used | Indoor location with good ventilation free from corrosive gas and conductive dust. | |
| Altitude |
Below 1000M. It have to rise the rate power when the altitude is more than 1000M. |
||
| Temperature | -20 +45 C | ||
| Humidity | 90%RH without dew condensation. | ||
| Vibration | <0.5G | ||
| Structure | Protection Class | IP20 | |
| Cooling Pattern | Fans cooling. | ||
Product Application
