VEIKONG VFD500 Inverter for Motor Speed Control with Built-in PID and PLC Capabilities

MOQ	1
Delivery Time	3 days, depend on the order quantity
Brand	VEIKONG
Place of Origin	China
Certification	CE IEC ISO9001
Model Number	VFD500
Packaging Details	Carton and Wooden Box
Payment Terms	Western Union,T/T,L/C,D/A,D/P,PayPal
Supply Ability	15000pcs per Month

Product Details

Product Specification

Place of Origin	China	Control Mode	VF,SVC,VC,torque Control
Highlight	Veikong VFD 500, 45kw Variable Frequency Inverters, Veikong 3 Phase Ac Drive	Packaging Details	Carton and Wooden Box
Product Name	VEIKONG VFD500 Inverter for Motor Speed Control with Built-in PID and PLC Capabilities	Model Number	VFD500
Supply Ability	15000pcs per Month	Certification	CE IEC ISO9001
Brand Name	VEIKONG	Payment Terms	Western Union,T/T,L/C,D/A,D/P,PayPal
Price		Delivery Time	3 days, depend on the order quantity
Minimum Order Quantity	1	Voltage	380V
Output	3 Phase	Application	Textile,packaging,extruder,fans,pumps,CNC,hoist And Crane,etc
Starting Torque	0.25HZ/150% SVC ,0HZ/180%FVC

Product Description

VEIKONG VFD500 Inverter for Motor Speed Control with Built-in PID and PLC Capabilities

Product Name	Inverter 30KW 37KW 45KW 55KW 440V 480V	Current	Depend On Model
Voltage	380V-480V	Frequency	50HZ-60HZ
Weight	Depend On Model	Warranty	24 Months
Brand	VEIKONG	Original	China
Color	Dark Blue And White	Protection level	IP20
GPRS	Support Remote Control
Highlight	STO(Safe Torque off)function TCP protocol Fire mode in urgent situations Rich communication card for options

PID Function Variable Frequency Inverters 30KW 37KW 45KW 55KW 440V 480V

VEIKONG Variable Speed Drive Inverter 30KW 37KW 45KW 55KW 440V 480V

Product Feature

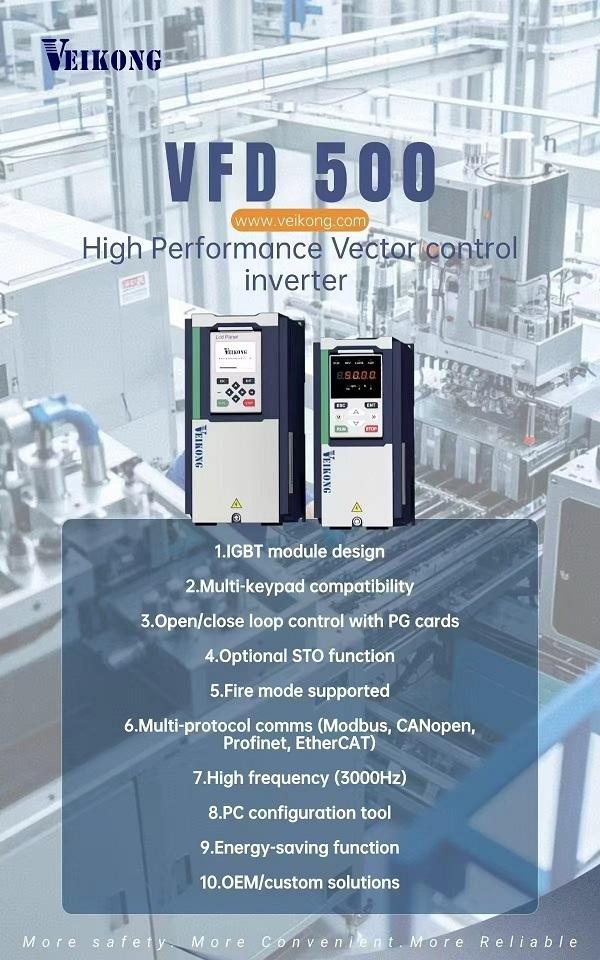

1. VFD500 product feautures

1)Use IGBT module design instead of single tube igbt.
2)Support LED, optional dual display keypad, optional LCD keypad.
3)open loop and close loop control
4)optional STO function.
5)Fire mode function.
6)Modbus RTU, optional Modbus TCP, Can-Open, Profinet , Ethercat communications.
7)high frequency up to 3000Hz.
8)PC TOOL software.
9)Energy-savinig function
10)OEM / Customized solution.

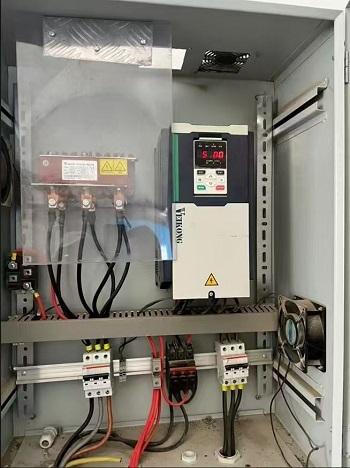

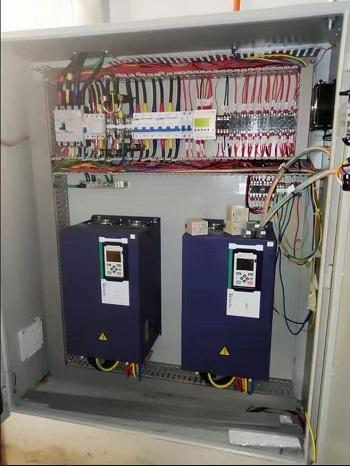

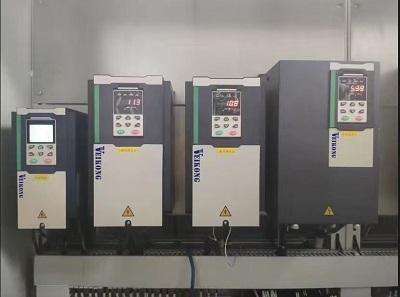

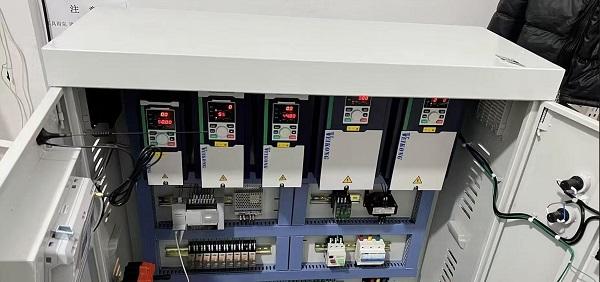

VFD500 series frequency inverter is a powerful high-performance current vector inverter, which can realize the
control of the asynchronous motor, V/F control mode, one machine with multiple functions, can realize
multiple frequency switching, and can be used for textile, Drives for automated production equipment
such as papermaking, wIre drawing, machine tools, packaging, and food.

Product Specification

Item		Specification
Input	Input Voltage	1phase/3phase 220V:200V～240V 3 phase 380V-480V:380V～480V
	Allowed Voltage fluctuation range	-15%～10%
	Input frequency	50Hz / 60Hz,fluctuation less than 5%
Output	Output Voltage	3phase:0～input voltage
Output	Overload capacity	General purpose application:60S for 150% of the rated current Light load application:60S for 120% of the rated current
Control	Control mode	V/f control Sensorless flux vector control without PG card(SVC) Sensor speed flux vector control with PG card (VC)
	Operating mode	Speed control,Torque control(SVC and VC)
	Speed range	1:100 (V/f) 1:200( SVC) 1:1000 (VC)
	Speed control accuracy	±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC)
	Speed response	5Hz(V/f) 20Hz(SVC) 50Hz(VC)
	Frequency range	0.00～600.00Hz(V/f) 0.00～200.00Hz(SVC) 0.00～400.00Hz(VC)
	Input frequency resolution	Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.1%
	Startup torque	150%/0.5Hz(V/f) 180%/0.25Hz(SVC) 200%/0Hz(VC)
	Torque control accuracy	SVC:within 5Hz10%,above 5Hz5% VC:3.0%
	V/f curve	V / f curve type: straight line, multi point, power function, V / f separation; Torque boost support: Automatic torque boost (factory setting), manual torque boost
	Frequency giving ramp	Support linear and S curve acceleration and deceleration; 4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s
	DC bus voltage control	Over-voltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault; Under-voltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip; Vdc Min control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump under-voltage fault
	Carrier frequency	1kHz～12kHz(Varies depending on the type)
	Startup method	Direct start (can be superimposed DC brake); speed tracking start
	Stop method	Deceleration stop (can be superimposed DC braking); free to stop
	Main control function	Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN
Function	Keypad	LED Digital keyboard and LCD keypad(option)
	Communication	Standard: MODBUS communication CAN OPEN AND PROFINET( IN DEVELOPMENT)
	PG card	Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary transformer Card
	Input terminal	Standard: 5 digital input terminals, one of which supports high-speed pulse input up to 50kHz; 2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input; Option card: 4 digital input terminals 2 analog input terminals.support-10V-+10V voltage input
	Output terminal	standard: 1 digital output terminal; 1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output; 1 relay output terminal(second relay is an option ) 2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output; Option card: 4 digital output terminals
Protection	Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function
Environment	Installation location	Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
	Altitude	0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m
	Ambient temperature	-10°C~ +40°C,maximum 50°C (derated if the ambient temperature is between 40°C and 50°C)Rated output current decrease by 1.5% if temperature increase by 1°C
	Humidity	Less than 95%RH, without condensing
	Vibration	Less than 5.9 m/s² (0.6 g)
	Storage temperature	-20°C ~ +60°C
Others	Installation	Wall-mounted, floor-controlled cabinet, transmural
	Protection level	IP20
	cooling method	Forced air cooling
EMC	CE ROHS	Internal EMC filter Complies with EN61800-3 Category C3 3^rd Environment
