| Price | Negotiable |
| MOQ | 1000PCS |
| Delivery Time | 5-8working days |
| Brand | BOZEX |
| Place of Origin | SHENZHEN CHINA |
| Certification | CE, ROHS ISO9001 |
| Model Number | BZX.S030402-M12-30 |
| Packaging Details | box size: 20cm*20cm*10cm |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50Million pcs per day |
| Place of Origin | SHENZHEN CHINA | Thread Size(T) | M3, M4, M5 , M6 , M8,M10, M12 |
| Packaging Details | box size: 20cm*20cm*10cm | Color | Natural , Plain, Zinc Plated, black |
| Grade | 10.9, 8.8, 4.8, A2-70, Gr5 | Model Number | BZX.S030402-M12-30 |
| Supply Ability | 50Million pcs per day | Trad Term | EXW, CIF, FOB |
| Certification | CE, ROHS ISO9001 | Name | 304 Stainless Steel High Hold Cone Point Set Screws |
| Brand Name | BOZEX | Payment Terms | L/C, T/T, Western Union |
| Product Material | 304 Stainless SteeL, 316 Stainlees Steel, Alloy Steel | Delivery Time | 5-8working days |
| Minimum Order Quantity | 1000PCS | Height | 3 - 30mm |
| Application | Industry Machine, Building, Furniture |
304 Stainless Steel High Hold Cone Point Set Screws
Product Quick Details:
Name: 304 Stainless Steel High Hold Cone Point Set Screws
Size: M3, M4, M5 , M6 , M8,M10, M12
Screw Length: 3 - 30 mm
Trade term: FOB/EXW/CIF
Standard: DIN, ISO
Function: Screws fastener for Machine, building, industry, lamps , Furniture ect.
Shipping Ways: FEDEX, UPS, DHL, By Sea Shipping, By Air Shipping
304 Stainless Steel High Hold Cone Point Set Screws Description
Extended Tip Set screws are also called support screws and positioning screws. It is a screw specially used to fix the relative position of the machine parts. Type: square head set screw with flange end, gb/t821-1988 square head set screw with chamfered end, gb/t85-1988 square head set screw with long cylindrical end, inner square head set screw, etc.
304 Stainless Steel High Hold Cone Point Set Screws Generally, the strength grade of 304 stainless steel screws is between 4.8-6.8. Stainless steel screws cannot be heat treated, which means that stainless steel screws cannot be hardened. The strength grade of 304 stainless steel screws is the strength grade of 304 stainless steel screw wire. 304 stainless steel 0Cr19Ni9 (0Cr18Ni9) HB139-187 is made of austenitic stainless steel, carbon steel is not more than 0.08%, manganese content is 2%, yield point is 205MP, tensile strength ≥515Mpa, good corrosion resistance, and other types of stainless steel Compared with other materials, the difference between 304 stainless steel and other materials is the nickel content, and the corrosion resistance rate is dozens of times different.

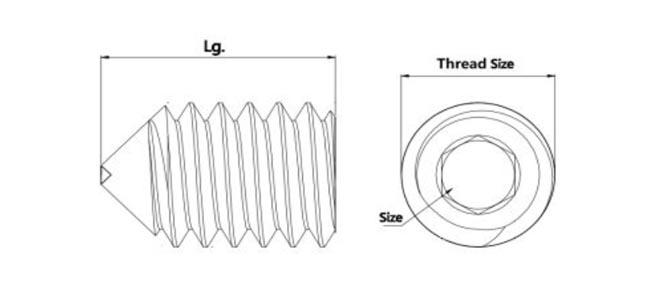

304 Stainless Steel High Hold Cone Point Set Screws Parameter and Drawing
| Size | Code | Lg. | Thread Size. |
| M3 x 3 | BZX.S030402-M3-3 | 3 | M3 |
| M3 x 4 | BZX.S030402-M3-4 | 4 | M3 |
| M3 x 5 | BZX.S030402-M3-5 | 5 | M3 |
| M3 x 6 | BZX.S030402-M3-6 | 6 | M3 |
| M3 x 8 | BZX.S030402-M3-8 | 8 | M3 |
| M3 x 10 | BZX.S030402-M3-10 | 10 | M3 |
| M3 x 12 | BZX.S030402-M3-12 | 12 | M3 |
| M3 x 16 | BZX.S030402-M3-16 | 16 | M3 |
| M4 x 4 | BZX.S030402-M4-5 | 4 | M4 |
| M4 x 5 | BZX.S030402-M4-5 | 5 | M4 |
| M4 x 6 | BZX.S030402-M4-6 | 6 | M4 |
| M4 x 8 | BZX.S030402-M4-8 | 8 | M4 |
| M4 x 10 | BZX.S030402-M4-10 | 10 | M4 |
| M4 x 12 | BZX.S030402-M4-12 | 12 | M4 |
| M4 x 16 | BZX.S030402-M4-16 | 16 | M4 |
| M4 x 20 | BZX.S030402-M4-20 | 20 | M4 |
| M4 x 25 | BZX.S030402-M4-25 | 25 | M4 |
| M4 x 30 | BZX.S030402-M4-30 | 30 | M4 |
| M5x 4 | BZX.S030402-M5-4 | 4 | M5 |
| M5x 5 | BZX.S030402-M5-5 | 5 | M5 |
| M5x 6 | BZX.S030402-M5-6 | 6 | M5 |
| M5x 8 | BZX.S030402-M5-8 | 8 | M5 |
| M5 x 10 | BZX.S030402-M5-10 | 10 | M5 |
| M5 x 12 | BZX.S030402-M5-12 | 12 | M5 |
| M5 x 16 | BZX.S030402-M5-16 | 16 | M5 |
| M5 x 20 | BZX.S030402-M5-20 | 20 | M5 |
| M5 x 25 | BZX.S030402-M5-25 | 25 | M5 |
| M5 x 30 | BZX.S030402-M5-30 | 30 | M5 |
| M5 x 35 | BZX.S030402-M5-40 | 35 | M5 |
| M5 x 40 | BZX.S030402-M5-40 | 40 | M5 |
| M6 x 6 | BZX.S030402-M6-6 | 6 | M6 |
| M6 x 8 | BZX.S030402-M6-8 | 8 | M6 |
| M6 x 10 | BZX.S030402-M6-10 | 10 | M6 |
| M6 x 12 | BZX.S030402-M6-12 | 12 | M6 |
| M6 x 16 | BZX.S030402-M6-16 | 16 | M6 |
| M6 x 20 | BZX.S030402-M6-20 | 20 | M6 |
| M6 x 25 | BZX.S030402-M6-25 | 25 | M6 |
| M6 x 30 | BZX.S030402-M6-30 | 30 | M6 |
| M6 x 35 | BZX.S030402-M6-35 | 35 | M6 |
| M6 x 40 | BZX.S030402-M6-40 | 40 | M6 |
| M6 x 45 | BZX.S030402-M6-45 | 45 | M6 |
| M12 x 16 | BZX.S030402-M12-16 | 16 | M12 |
| M12 x 20 | BZX.S030402-M12-20 | 20 | M12 |
| M12 x 25 | BZX.S030402-M12-25 | 25 | M12 |
| M12 x 30 | BZX.S030402-M12-30 | 30 | M12 |
| M12 x 40 | BZX.S030402-M12-30 | 40 | M12 |
Advantages
1.Exact forging standard of knife edge and high hardness of surface make it easy to drill.
2.Using the advanced technology to control the core hardness, avoiding rupture effectivity,
3. Quick self drilling , drilling , tapping, locking the oncce, and combining with the strength.
4. Save contruction time, improve working efficency.
5. We have automatically generate machines produce the screws, Bolts, Nuts, Washers and so on .
6. Our high productivity can make sure your quickly delivery time
