| Price | Negotiable |
| MOQ | 10000PCS |
| Delivery Time | 15days or Depends on ordering QTYS |
| Brand | YOKG |
| Place of Origin | China |
| Certification | CE |
| Model Number | E1018 |
| Packaging Details | Standard export packing or According to customer's demand |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 100000pcs per Month |
| Place of Origin | China | Surface coating | Electro tin plated |
| Packaging Details | Standard export packing or According to customer's demand | Cable size | 1.0mm² |
| Model Number | E1018 | Supply Ability | 100000pcs per Month |
| Certification | CE | Temperature resistance | 105 ℃ |
| Brand Name | YOKG | Payment Terms | L/C, D/P, T/T |
| Type | Crimp Terminal | Price | Negotiable |
| Delivery Time | 15days or Depends on ordering QTYS | Insulator material | Flame retartant PP |
| Product name | Ferrules | Minimum Order Quantity | 10000PCS |

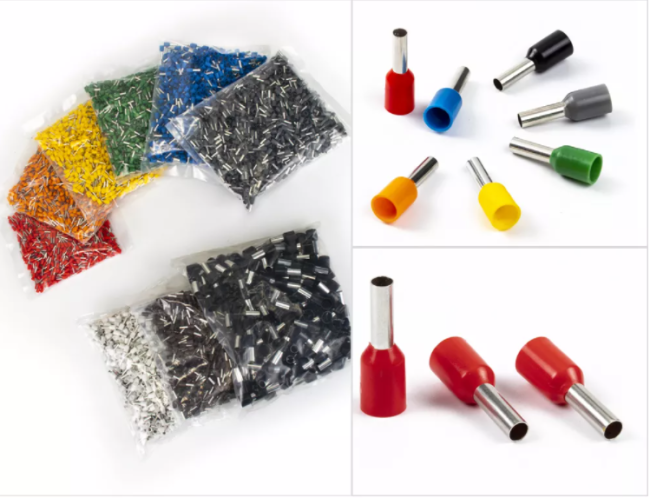

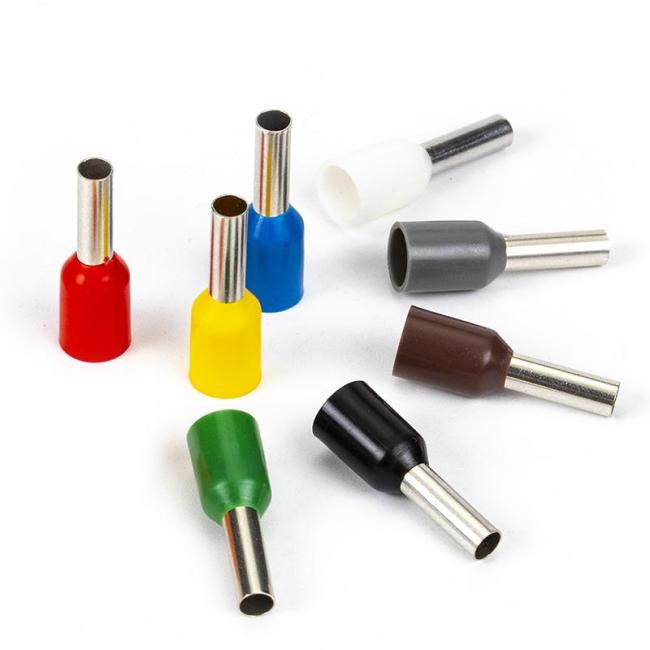

What is MOQCopper Brass E1018 Pre-Insulated Ferrule AWG 18 Wire Connector Crimping Terminal
| Item Number | E series |
| Material | Copper or Brass |
| Surface coating | Electro Tin Plated |
| Insulaor material | Flame retardant PP |
| AWG | #4,#6,#8,#10,#12,#14,#16,#18,#20,#22 |
| Color | Red, yellow, blue, green, black, gray, brown, white, orange |
| Application | Wire crimping |
| Item No. | Dimension (mm) | Wire range | |||||
| F | L | W | D∅ | C∅ | A.W.G | ㎟ | |
| E0505 | 5.0 | 11.0 | 2.6 | 1.3 | 1 | 22 | 0.5 |
| E0506 | 6.0 | 12.0 | |||||
| E0508 | 8.0 | 14.0 | |||||
| E0510 | 10.0 | 16.0 | |||||
| E0512 | 12.0 | 18.0 | |||||
| E7506 | 6.0 | 12.3 | 2.8 | 1.5 | 1.2 | 20 | 0.75 |
| E7508 | 8.0 | 14.3 | |||||
| E7510 | 10.0 | 16.3 | |||||
| E7512 | 12.0 | 18.3 | |||||
| E7518 | 18.0 | 24.3 | |||||
| E1006 | 6.0 | 12.3 | 3.0 | 1.7 | 1.4 | 18 | 1.0 |
| E1008 | 8.0 | 14.3 | |||||
| E1010 | 10.0 | 16.3 | |||||
| E1012 | 12.0 | 18.3 | |||||
| E1018 | 18.0 | 24.3 | |||||
| E1508 | 8.0 | 14.3 | 3.5 | 2 | 1.7 | 16 | 1.5 |
| E1510 | 10.0 | 16.3 | |||||
| E1512 | 12.0 | 18.3 | |||||
| E1515 | 15.0 | 21.3 | |||||
| E1518 | 18.0 | 24.3 | |||||
| E2508 | 8.0 | 15.4 | 4.0 | 2.6 | 2.3 | 14 | 2.5 |
| E2510 | 10.0 | 17.4 | |||||
| E2512 | 12.0 | 19.4 | |||||
| E2518 | 18.0 | 25.4 | |||||
| E2525 | 25.0 | 32.4 | |||||
| E4009 | 9.0 | 16.7 | 4.5 | 3.2 | 2.8 | 12 | 4.0 |
| E4010 | 10.0 | 17.4 | |||||
| E4012 | 12.0 | 19.4 | |||||
| E4018 | 18.0 | 25.4 | |||||
| E6012 | 12.0 | 20.5 | 6.0 | 3.9 | 3.5 | 10 | 6.0 |
| E6018 | 18.0 | 26.5 | |||||
| E10-12 | 12.0 | 20.8 | 7.5 | 4.9 | 4.5 | 8 | 10 |
| E10-18 | 18.0 | 26.8 | |||||
| E16-12 | 12.0 | 22.0 | 8.7 | 6.2 | 5.8 | 6 | 16 |
| E16-18 | 18.0 | 28.0 | |||||
| E25-12 | 12.0 | 24.0 | 11.0 | 7.9 | 7.5 | 4 | 25 |
| E25-16 | 16.0 | 28.0 | |||||
| E25-18 | 18.0 | 30.0 | |||||
| E25-22 | 22.0 | 34.0 | |||||
| E35-16 | 16.0 | 30.0 | 12.5 | 8.7 | 8.3 | 2 | 35 |
| E35-18 | 18.0 | 32.0 | |||||
| E35-22 | 22.0 | 36.0 | |||||
| E35-25 | 25.0 | 39.0 | |||||
| E50-12 | 12.0 | 28.0 | 15.0 | 10.9 | 10.3 | 1/0 | 50 |
| E50-20 | 20.0 | 36.0 | |||||
| E70-20 | 20.0 | 37.0 | 16.0 | 14.3 | 13.5 | 2/0 | 70 |
| E70-25 | 25.0 | 42.0 | |||||
| E70-27 | 27.0 | 44.0 | |||||
| E95-25 | 25.0 | 44.0 | 18.5 | 15.6 | 14.8 | 3/0 | 95 |
| E120-27 | 27.0 | 47.6 | 20.3 | 17.7 | 16.7 | 4/0 | 120 |
| E120-32 | 32.0 | 52.6 | |||||
| E150-25 | 25.0 | 50.6 | 23.4 | 20.6 | 19.6 | 250/300 MCM | 150 |
| E150-27 | 27.0 | 52.6 | |||||
| E150-32 | 32.0 | 57.6 | |||||
Quickly understand the model:
E: Product series
15: suitable for 1.5 square milimeter wire
08: Exposed length of copper tube
Material: copper & brass
Insulator material: flame retardant PP
Why Choose Us
a. Reply your inquire in 24 working hour.
b. Technical and professional guidance.
c. Best quality and best price.
We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your
kind suggestion or feedback on goods and our service.
FAQ:
1. Could I have prices of your products?
Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours.
2. Can we print our logo/website/company name on products?
Yes,your logo can be printed as your demand. we can offer OEM service.
3. What's the lead time for regular order?
7-15 days as order quantity
4.What is MOQ
No limit.
5. Can you provide samples? Are the samples free?
Yes. We can provide samples. Usually the standard products in stock can be provided to you for free. But you have to pay for the cost of express.
6. Do you inspect the finished products?
Our products 100% self-inspection and testing before packing.
7. How about payment terms?
Standard order could pay by T/T,L/C, Small order could support Western Union
