| Price | Negotiable |
| MOQ | 1000PCS |
| Delivery Time | 15days or Depends on ordering QTYS |
| Brand | YOKG |
| Place of Origin | China |
| Certification | CE, ROHS |
| Model Number | YG633/YG643, YG634/YG644, YG635/YG645 |
| Packaging Details | Standard export packing or According to customer's demand |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 100000pcs per Month |
| Place of Origin | China | Place of origin | Wenzhou, China |
| Packaging Details | Standard export packing or According to customer's demand | Model Number | YG633/YG643, YG634/YG644, YG635/YG645 |
| Supply Ability | 100000pcs per Month | Feature | Waterproof,Durable, Safe |
| Certification | CE, ROHS | Poles of power | 2P+E, 3P+E, 3P+E+N |
| Brand Name | YOKG | Payment Terms | L/C, D/P, T/T |
| Type | Industrial inclined utensil socket | Price | Negotiable |
| Delivery Time | 15days or Depends on ordering QTYS | OEM | Available |
| Minimum Order Quantity | 1000PCS | Current | 63A, 125A |

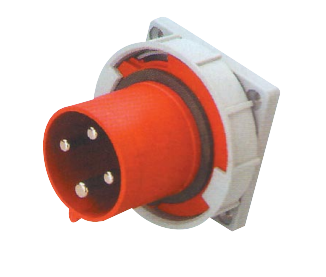

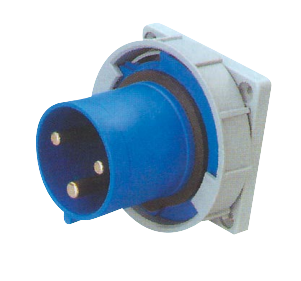

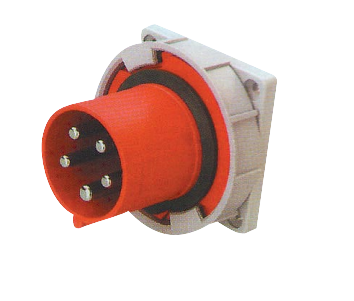

2P PE Industrial Power Sockets 3P+ E 3P+ N +E IP67 Waterproof 125A Inclined Utensil
Application of industrial socket:
Industrial socket connector is a new generation connector appratus for power connecting, has the features such as security & reliability.
They are used widly in the place such as petrochemical processing, electric power, electronic and so on
Current(A): 63A/125A
Voltage(V):220-240V ~
Poles: 2P+E
Code: YG633, YG643
Protection degree:IP67
| Earth contact position | 6h | ||
| Rated current (A) | 63 | 125 | |
| Pole | 3 | ||

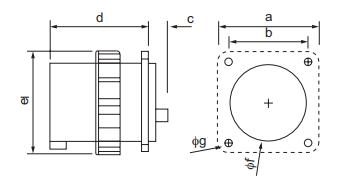

| Dimension(mm) | a | 100 | 120 |
| b | 81 | 100 | |
| c | 20 | 22 | |
| d | 108 | 102 | |
| e | 109 | 124 | |
| f | 75 | 100 | |
| g | 6.5 | 6.5 | |
| Cable nominal cross-section area (㎟) | 1-2.5 | 2.5-6 | |
------------------------------------------------------------------------------
Current(A):63A/125A
Voltage(V):380-415V ~
Poles: 3P+E
Code: YG634, YG644
Protection degree:IP67
| Earth contact position | 6h | ||
| Rated current (A) | 63 | 125 | |
| Pole | 3 | ||
| Dimension(mm) | a | 100 | 120 |
| b | 81 | 100 | |
| c | 20 | 22 | |
| d | 108 | 102 | |
| e | 109 | 124 | |
| f | 75 | 100 | |
| g | 6.5 | 6.5 | |
| Cable nominal cross-section area (㎟) | 1-2.5 |
2.5-6 |
|
---------------------------------------------------------------------------------------------------
Current(A): 63A/125A
Voltage(V):220-380V / 240-415V~
Poles: 3P+N+E
Code: YG635, YG645
Protection
degree:IP67
| Earth contact position | 6h | ||
| Rated current (A) | 63 | 125 | |
| Pole | 3 | ||
| Dimension(mm) | a | 100 | 120 |
| b | 81 | 100 | |
| c | 20 | 22 | |
| d | 108 | 102 | |
| e | 109 | 124 | |
| f | 75 | 100 | |
| g | 6.5 | 6.5 | |
| Cable nominal cross-section area (㎟) | 1-2.5 |
2.5-6 |
|
