| Price | Negotiable |
| MOQ | 100PCS |
| Delivery Time | 15days or Depends on ordering QTYS |
| Brand | YOKG |
| Place of Origin | China |
| Certification | CE, KEMA |
| Model Number | PR8HE |
| Packaging Details | Each unit be packed in one individual inner box |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 100000pcs per Month |
| Poles | 2P,4P | Place of Origin | China |
| Packaging Details | Each unit be packed in one individual inner box | Ampere | 16-100A |
| Model Number | PR8HE | Supply Ability | 100000pcs per Month |
| Certification | CE, KEMA | Brand Name | YOKG |
| Payment Terms | L/C, D/P, T/T | Function | control electric circuits |
| Price | Negotiable | Delivery Time | 15days or Depends on ordering QTYS |
| Product name | leakage protector, RCBO | Minimum Order Quantity | 100PCS |
| Breaking capacity | 10kA | Application | Housing, industry |

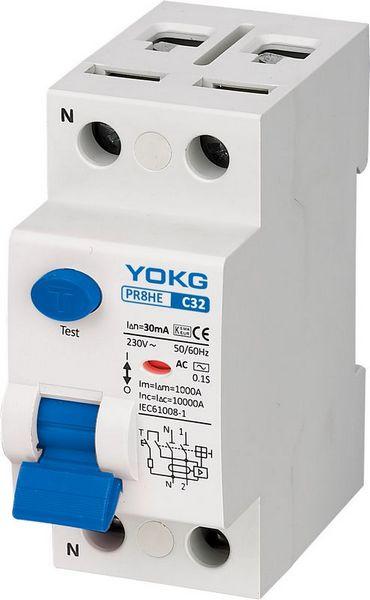

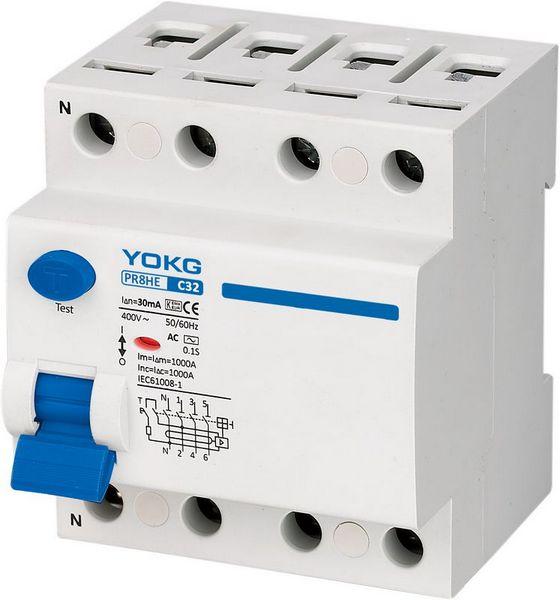

10kA Leakage Protector PR8HE 2P 4 Poles RCBO Household Circuit Breaker
Function:
♦ Control electric circuits
♦ Protect people against indirect contacts and additional protection against direct contacts
♦ Protect installations against fire hazard due to insulation faults
♦ Residual current circuit breakers are used in housing, tertiary sector and industry
♦ Support 35mm Din-rail installation
Specifications:
| Poles | 2P,4P |
| Electrical Specification | |
| Rated current (A) In | 16-100A |
| Rated working voltage (V) Ue | 2P:230, 4P:400 |
| Rated insulated voltage (V) Ui | 500 |
| Impulse withstand voltage (kV) Uimp | 6 |
| Rated short circuit breaking capacity (kA) Inc/I△n | 10 |
| Rated residual current (mA) I△n | 10,30,100,300 |
| Rated residual making and breaking capacity (A) I△m | 1000 |
| residual current working type | AC,AC+S, A |
| residual current protection type | Electronic |
| Dielectric test voltage(kV) | 2.5 |
| Service life Mechanical Standard value | 4000 |
| (O-C) Electrical Standard value | 2000 |
| Control And indication | |
| Shunt release (SHT) | NONE |
| Undervoltage release (UVT) | NONE |
| Auxiliary contact(AUX) | NONE |
| Contact position indicator | NONE |
| Fault indication | DEFAULT |
| Connection And Installation | |
| Ambient temperature (with daily average ≤35℃) | -5℃ ～ +40℃ |
| Protection degree All sides | IP40 |
| connection terminal | IP20 |
| Wire(m㎡) | 35 |
| Busbar (m㎡) | 35 |
| Mounting | Cable/Busbar |
| Reference temperature for setting of thermal element | 30 |
| Pollution degree | 2 |
| Storage temperature(℃) | -25℃ ～ +70℃ |
| Connection | Top |
| Dimensions(mm) a(2P/4P) | 36/72 |
| b(2P/4P) | 84/84 |
| c(2P/4P) | 79.5/79.5 |
Selection:
♦ Detectable wave form
♦ AC type
♦ A type
RCCB for which tripping ensured for residual sinusoidal alternating currents and residual pulsating direct currents, whether suddenly applied or slowing rising, Symbol
Tripping sensitivity:
♦ 30 mA--additional protection against direct contact
♦ 100mA--co-ordinated with the earth system according to the formula In＜50/R, to provide protection against indirect contacts
♦ 300mA, protection against indirect contacts, as well we fire hazard
Tripping time:
♦ Instantaneous
It ensures instantaneous tripping (without time-delay)
♦ Short time delay
It ensures any tripping at least 10ms
♦ Selective
It ensures total discrimination with a nonselective RCD placed downstream
Connection Diagram:
The diagram of distribution line:
