| Price | Negotiable |
| MOQ | 100 meters |
| Delivery Time | 10-30 days |
| Brand | UCER |
| Place of Origin | China |
| Certification | Enterprise credit rating AAA |
| Model Number | EP100/EP150/EP200/EP250/EP300 |
| Packaging Details | Iron packing, iron frame or other |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 10000 per month |
| Place of Origin | China | Increase the conveying angle | 30~90 degrees |
| Fabric layer | 2-20 layers | Packaging Details | Iron packing, iron frame or other |
| Color | Green | Standard | GB7984-2001 |
| The thickness of the upper cover | 3-6mm | Model Number | EP100/EP150/EP200/EP250/EP300 |
| Supply Ability | 10000 per month | Certification | Enterprise credit rating AAA |
| Brand Name | UCER | Payment Terms | L/C, D/P, T/T |
| The thickness of the lower cover rubber | 1.5-4.5mm | Price | Negotiable |
| Delivery Time | 10-30 days | Minimum Order Quantity | 100 meters |
| Bandwidth | 1200mm | Model | ST630 |

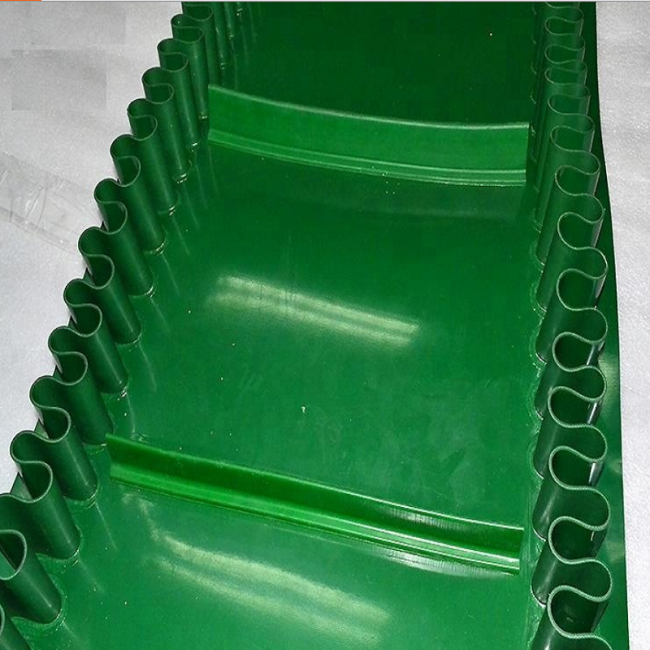

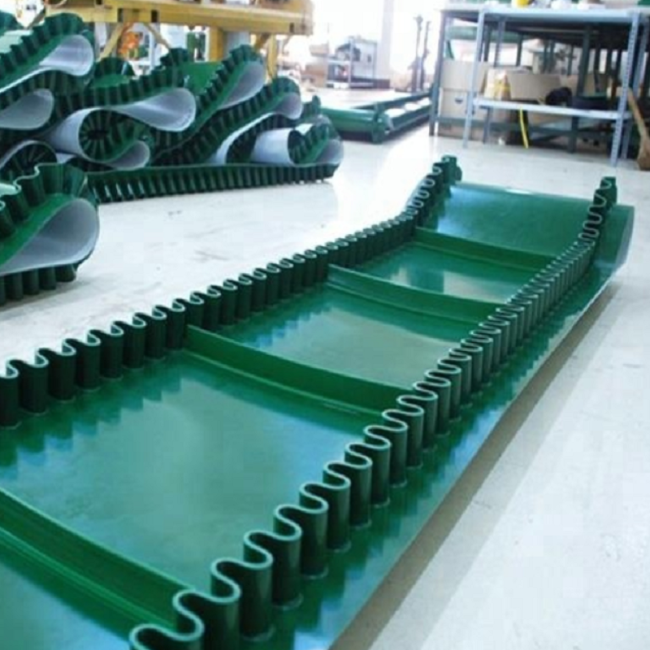

Partition conveyor belt 30~90 degrees 2-20 layers Inclined Conveyor Belts
1. Baseband requirements
The base belt of the partition conveyor belt is required to have a certain degree of tensile strength and wear resistance. Among them, for the partition conveyor belt with empty edges, in order to meet the requirements of the angle, the longitudinal direction of the tape must be flexible, and the transverse direction requires a certain degree of rigidity.
2. Specifications
(1) Core material: ordinary cotton canvas (CC), polyester-cotton blended canvas (CP), nylon (NN), polyester (EP), steel wire rope (ST), etc.
(2) Bandwidth: 100mm-2000mm
(3) Fabric layer: 2-20 layers
(4) Cover rubber: working surface: 1.5-15mm non-working surface: 0mm-6mm
3.Variety
According to the performance of the covering rubber, it can be divided into ordinary type, heat-resistant type, cold-resistant type, acid and alkali-resistant type, oil-resistant type, etc.
4.Implementation standards
Comply with GB7984-2001 standard
<
| Variety | Standards and main indicators |
| Ordinary steel cord conveyor belt | GB/T9770-2001 |
| Flame-retardant steel cord conveyor belt | MT668-1997 |
| General flame-retardant steel cord conveyor belt | MT668-1997 |
| Heat-resistant steel cord conveyor belt | HG2297-92 |
| Wear-resistant steel cord conveyor belt | Shaoboer wear amount ≤90mm 3 |
| Acid, alkali and oil resistant steel cord conveyor belt | HG4-846 HG4-846 |
| Cold-resistant steel cord conveyor belt | Brittleness temperature -40℃ |
